Keystone KTET-75-1-SCP-DIM-RJS Halogen-Electronic Low Voltage 75W Transformer 12V Output With Studs
Keystone KTET-75-1-SCP-DIM-RJS Halogen-Electronic Low Voltage 75W Transformer 12V Output With Studs
Specifications
Specifications
| Part Number# | KTET-75-1-SCP-DIM-RJS |
|---|---|
| Wattage: | 75 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 3 Year Warranty |

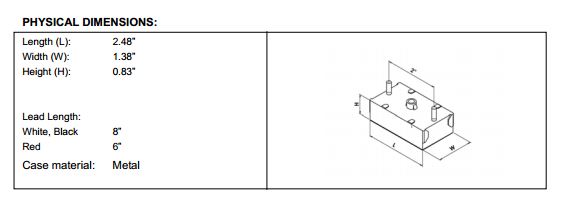

| Dimensions: | 2.48" x 1.38" x 0.83" |
| Width: | 1.38" |
| Length: | 2.48" |
| Height: | 0.83" |
| Dimmable: | Yes |
| Product Warranty: | 3 Year |
| Minimum Start Temperature: | 0 Deg F |
| Voltage: | 12V |
| Manufacturer: | Keystone Technologies |
| Technology: | Step Down Transformers |
Details
Details
ShineRetrofits Input:
Keystone KTET-75-1-SCP-DIM-RJS Halogen-Electronic Low Voltage 75W Transformer is designed for 12V halogen lamps and features sturdy studs for secure installation. This electronic transformer operates at an input voltage of 120Vac ± 10% with a frequency of 50/60Hz and supports parallel lamp connections. With a wide dimmable range, short circuit protection, and a maximum case temperature of 194℉ (90℃), this transformer is versatile and reliable, backed by a 3-year warranty.
Product Features:
• Transformer Type: Electronic
• Lamp Connection: Parallel
• Input Voltage: 120Vac ± 10%
• Input Frequency: 50/60Hz

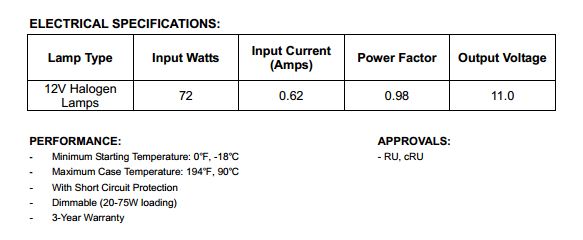

Electrical Specifications:
• Lamp Type: 12V Halogen Lamps
• Input Watts: 72W
• Input Current (Amps): 0.62
• Power Factor: 0.98
• Output Voltage: 11.0
Performance:
• Minimum Starting Temperature: 0℉, -18℃
• Maximum Case Temperature: 194℉, 90℃
• With Short Circuit Protection
• Dimmable (20-75W loading)
• 3-Year Warranty
Approvals:
• RU
• cRU
