Keystone KTET-60-1-WC-F Halogen-Electronic Low Voltage 60W Transformer 12V Output With Input and Output cable
Keystone KTET-60-1-WC-F Halogen-Electronic Low Voltage 60W Transformer 12V Output With Input and Output cable
Specifications
Specifications
| Part Number# | KTET-60-1-WC-F |
|---|---|
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, UL Listed |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | 12V |
| Weight Each: | 1.00 lb |
| Manufacturer: | Keystone Technologies |
| Technology: | Step Down Transformers |
Details
Details
ShineRetrofits Input:
Keystone Halogen-Electronic Low Voltage 60W Transformer is designed to provide 12V output with input and output cables, ideal for powering 12V halogen lamps. This electronic transformer operates on an input voltage of 120Vac ± 10% at a frequency of 50/60Hz and features a parallel lamp connection. With an input wattage of 53W and an input current of 0.45 amps, it offers a high power factor of over 0.95 and delivers an output voltage of 11V. It includes transient protection that meets ANSI/IEEE C62.41 Cat. A standard, ensuring durability and reliability. This transformer is approved by RU and cRU and comes with a 3-year warranty.
Product Features:
• Transformer Type: Electronic
• Lamp Connection: Parallel
• Input Voltage: 120Vac ± 10%
• Input Frequency: 50/60Hz

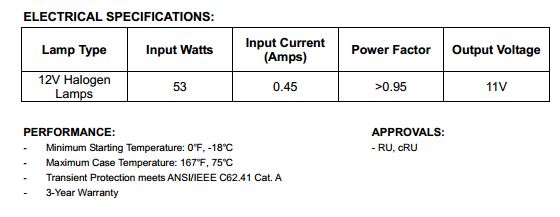

Electrical Specifications:
• Lamp Type: 12V Halogen Lamps
• Input Watts: 53W
• Input Current (Amps): 0.45
• Power Factor: >0.95
• Output Voltage: 11V
Performance:
• Minimum Starting Temperature: 0℉, -18℃
• Maximum Case Temperature: 167℉, 75℃
• Transient Protection meets ANSI/IEEE C62.41 Cat. A
• 3-Year Warranty
Approvals:
• RU
• cRU
