Keystone KTEB-432-UV-PS-L-P T8 Program Start High Efficiency CEE Approved Electronic Ballast 4 Lite F17/25/32 T8 NEMA Premium Reduced Output
Keystone KTEB-432-UV-PS-L-P T8 Program Start High Efficiency CEE Approved Electronic Ballast 4 Lite F17/25/32 T8 NEMA Premium Reduced Output
Specifications
Specifications
| Part Number# | KTEB-432-UV-PS-L-P |
|---|---|
| Ballast Factor: | Low .77-.78 |
| Wattage: | 32 Watt |
| Ballast Start Type: | Programmed Start |
| Certifications | CEE Listed, NEMA, ROHS, UL Listed |

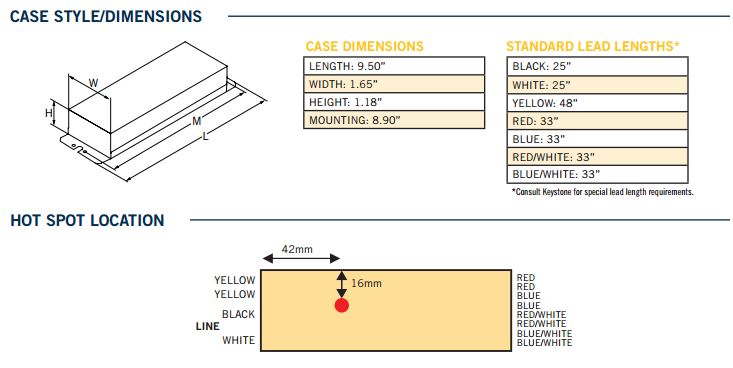

| Width: | 1.65" |
| Length: | 9.50" |
| Height: | 1.18" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.50 lbs |
| Manufacturer: | Keystone Technologies |
Details
Details
ShineRetrofits Input:
Keystone KTEB-332-UV-PS-L-P is a high-efficiency electronic ballast designed for 3-light T8 fixtures, compatible with F17T8, F25T8, and F32T8 lamps. This ballast ensures reliable performance by operating on a multi-voltage input of 120-277VAC with a high power factor and program start method. It features anti-striation circuitry, is sound rated A, and meets 2014 DOE compliance, FCC Part 18 (Class A) non-consumer limits, ANSI standards C82.11 and C62.41. UL and cUL listed for Class P and Type 1 outdoor use, it has a maximum ambient temperature of 105ºF (40ºC) and a maximum case temperature of 167ºF (75ºC), backed by a 5-year warranty.
Product Features:
• 2014 DOE Compliant
• Sound Rated: A
• Maximum Ambient Temperature: 105ºF, 40ºC
• Maximum Case Temperature: 167ºF, 75ºC
• Meets FCC Part 18 (Class A) Non-Consumer Limits
• Meets ANSI Standard C82.11 and C62.41
• UL, cUL Listed Class P, Type 1 Outdoor
• Anti-Striation Circuitry
• Type HL

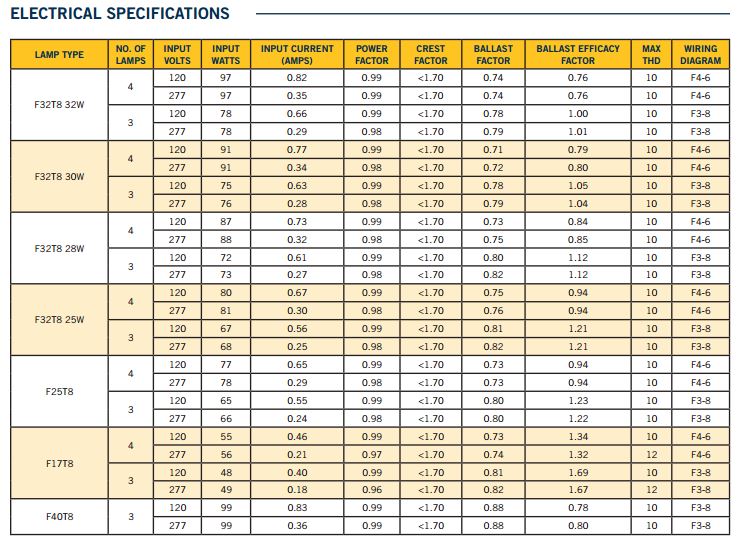

Product Specifications:
• STARTING METHOD: Program

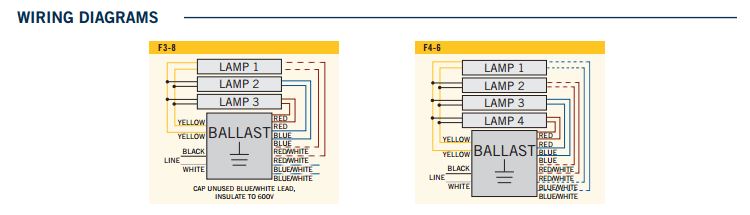

• LAMP CONNECTION: Parallel
• INPUT VOLTAGE: 120-277VAC ±10%
• INPUT FREQUENCY: 50/60Hz
• POWER FACTOR: High
• WARRANTY: 5 Years
