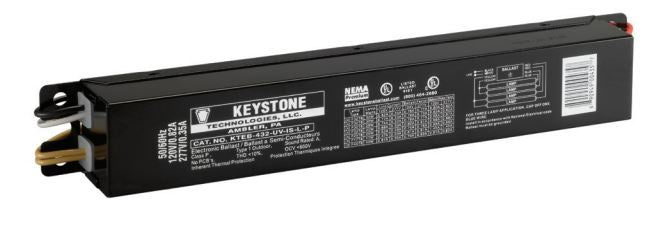

Keystone KTEB-432-UV-IS-L-P T8 Instant Start High Efficiency CEE Approved Electronic Ballast 4 Lite F17/25/32 T8 NEMA Premium Reduced Output
Keystone KTEB-432-UV-IS-L-P T8 Instant Start High Efficiency CEE Approved Electronic Ballast 4 Lite F17/25/32 T8 NEMA Premium Reduced Output
Specifications
Specifications
| Part Number# | KTEB-432-UV-IS-L-P |
|---|---|
| Wattage: | 32 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ANSI, CUL Listed, FCC Compliant, NEMA, ROHS, UL Listed |

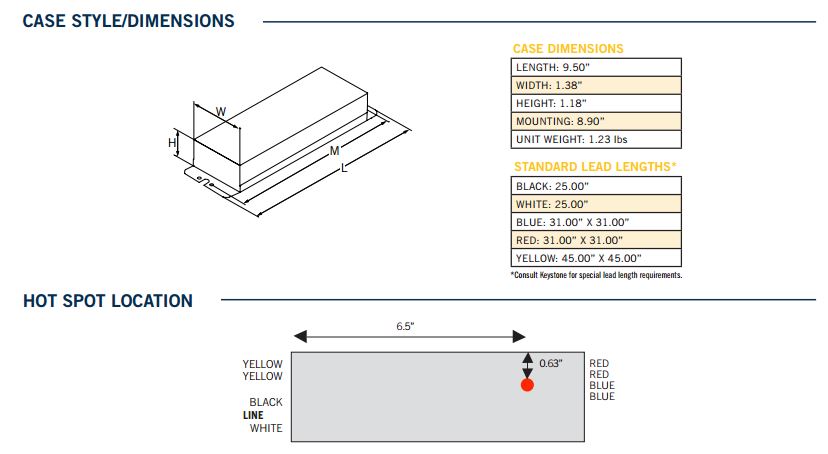

| Dimensions: | 9.50" x 1.38" x 1.18" |
| Width: | 1.38" |
| Length: | 9.50" |
| Height: | 1.18" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.23 lbs |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Ballast |
Details
Details
ShineRetrofits Input:
Keystone KTEB-432-UV-IS-L-P T8 Instant Start High-Efficiency CEE Approved Electronic Ballast is designed for 4 Lite F17/25/32 T8 NEMA Premium Reduced Output. The ballast operates at a frequency greater than 40kHz for all listed lamps. It has a five-year warranty, ensuring high power factor performance with an instant start method for parallel lamp connections across 120-277VAC ±10% input voltage at 50/60 Hz frequency.
Product Features:
• Sound Rated: A
• Minimum Starting Temperature: 0ºF, -18ºC
• Maximum Case Temperature: 167ºF, 75ºC
• Meets FCC Part 18 (Class A) Non-Consumer Limits
• Transient Protection Meets ANSI/IEEEC62.41 Cat. A
• Ballast frequency for all listed lamps: > 40kHz

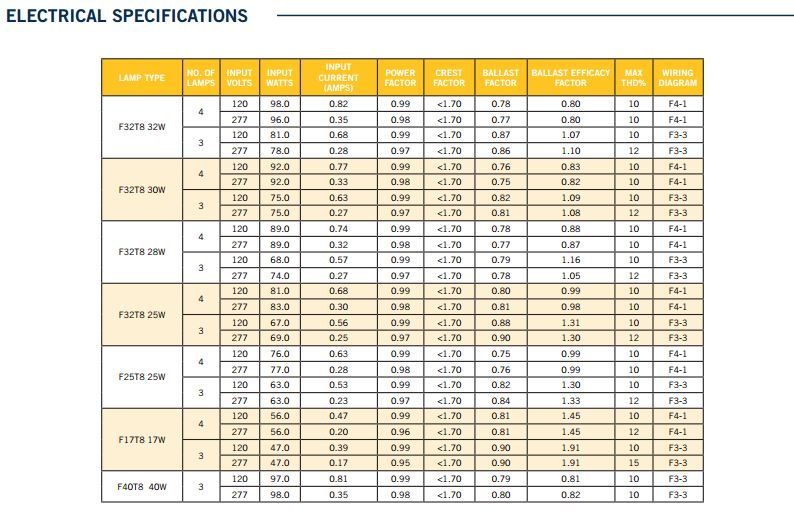

Product Specifications:
• STARTING METHOD: Instant
• INPUT VOLTAGE: 120-277VAC ±10%

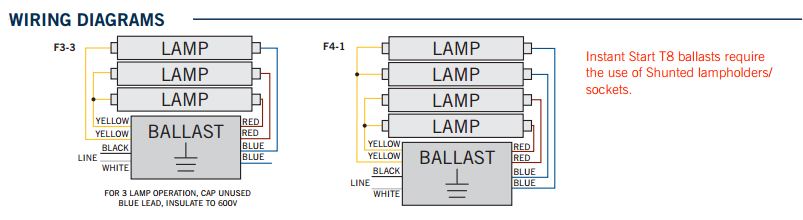

• LAMP CONNECTION: Parallel
• INPUT FREQUENCY: 50/60 Hz
• POWER FACTOR: High
• WARRANTY: 5 Years
