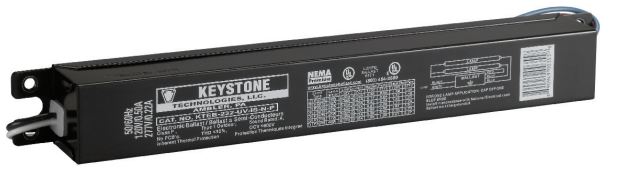

Keystone KTEB-232-UV-IS-N-P T8 Instant Start High Efficiency CEE Approved Electronic Ballast 2 Lite F17/25/32 T8 NEMA Premium Standard Output
Keystone KTEB-232-UV-IS-N-P T8 Instant Start High Efficiency CEE Approved Electronic Ballast 2 Lite F17/25/32 T8 NEMA Premium Standard Output
Specifications
Specifications
| Part Number# | KTEB-232-UV-IS-N-P |
|---|---|
| Wattage: | 32 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, ANSI, CUL Listed, FCC Compliant, UL Listed |

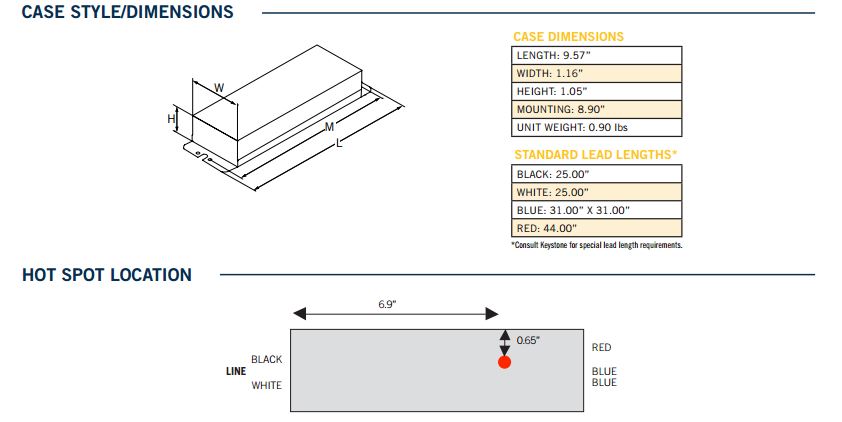

| Dimensions: | 9.50" x 1.30" x 1.18" |
| Width: | 1.30" |
| Length: | 9.50" |
| Height: | 1.18" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.21 lbs |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Ballast |
Details
Details
ShineRetrofits Input:
Keystone KTEB-232-UV-IS-N-P T8 Instant Start High-Efficiency CEE Approved Electronic Ballast is designed for 2 Lite F17/25/32 T8 NEMA Premium Standard Output. The ballast is UL and cUL listed, equipped with anti-striation circuitry, and comes with a five-year warranty, offering reliable performance with a high power factor and instant start method for parallel lamp connections across 120-277Vac ±10% input voltage at 50/60 Hz frequency.
Product Features:
• 2014 DOE Compliant
• Sound Rated: A
• Maximum Case Temperature: 167ºF, 75ºC
• Meets FCC Part 18 (Class A) Non-Consumer Limits
• Meets ANSI Standard C82.11 and C62.41
• Max. Output Voltage: 600V
• Max. Voltage to Ground: 600V
• UL, cUL Listed Class P, Type 1 Outdoor
• Anti-Striation Circuitry
• Type HL

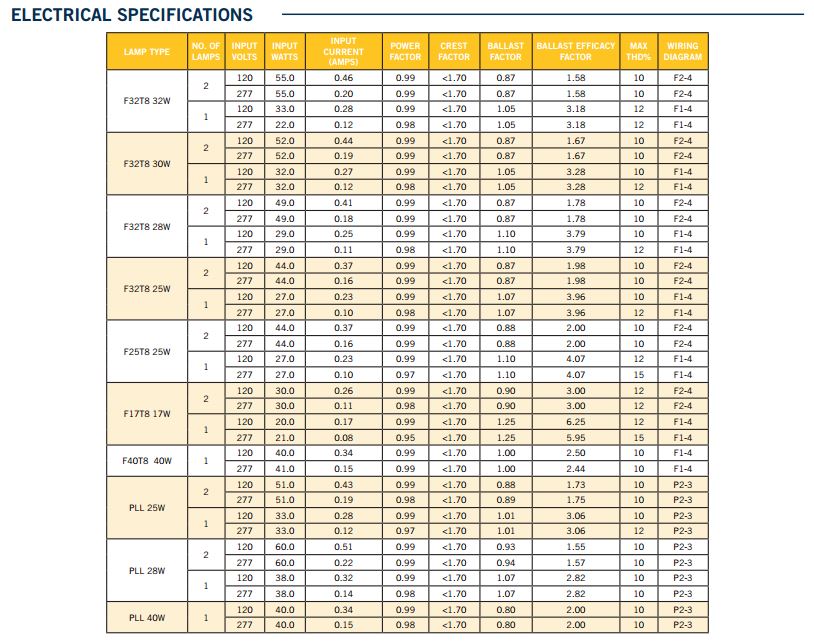

Product Specifications:
• STARTING METHOD: Instant Start

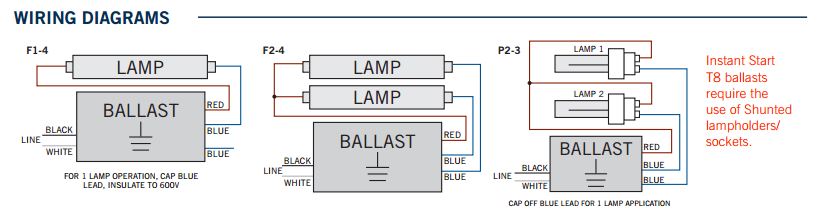

• LAMP CONNECTION: Parallel
• INPUT VOLTAGE: 120-277Vac ±10%
• INPUT FREQUENCY: 50/60 Hz
• POWER FACTOR: High
• WARRANTY: 5 Years
