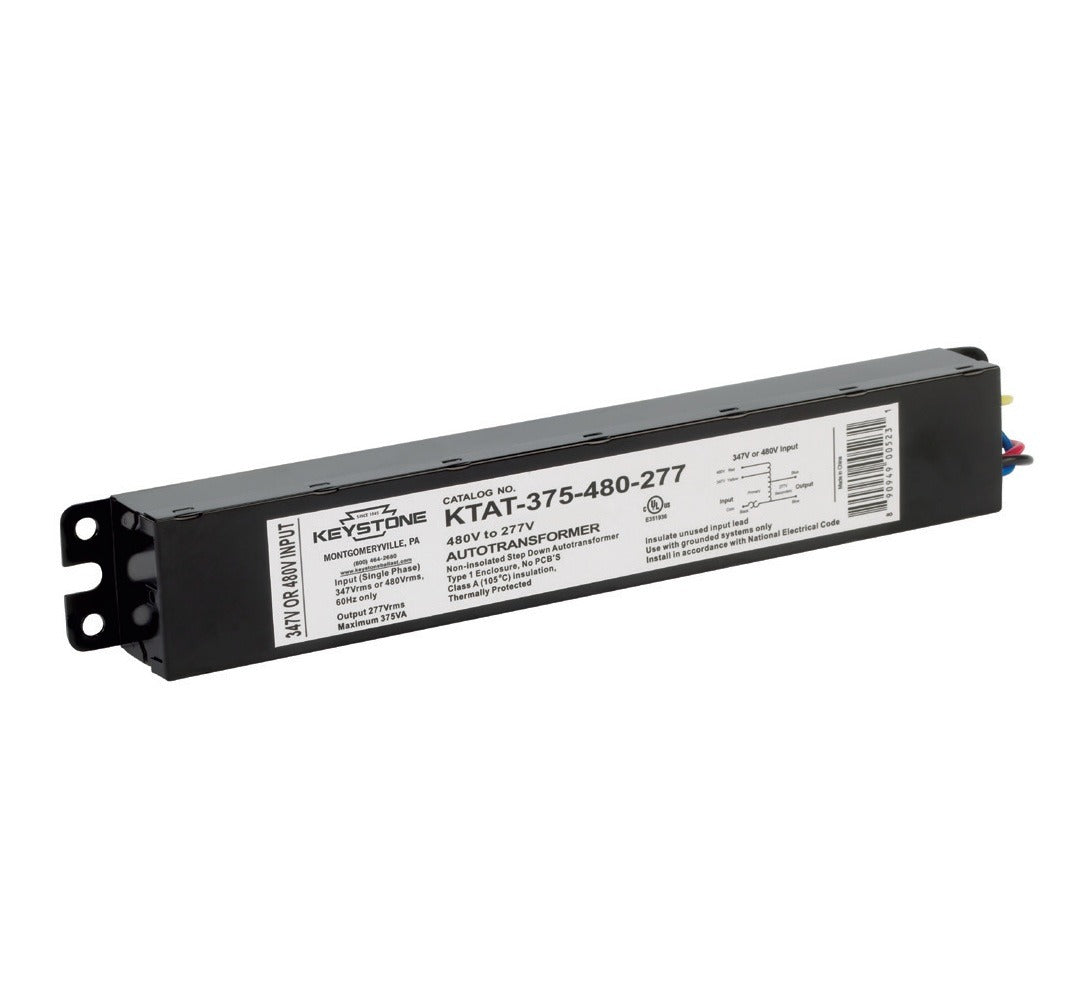

Keystone KTAT-375-480-277 /A-CP 480V to 277V Step-Down Auto-Transformer
Keystone KTAT-375-480-277 /A-CP 480V to 277V Step-Down Auto-Transformer
Specifications
Specifications
| Part Number# | KTAT-375-480-277 /A-CP |
|---|---|
| Wattage: | 360 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, UL Listed |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | 480V |
| Weight Each: | 1.00 lbs |
| Manufacturer: | Keystone Technologies |
| Technology: | Step Down Transformers |
Details
Details
ShineRetrofits Input:
Keystone's KTAT-375-480-277 /A-CP Step-down Auto-Transformer is designed to convert 480V single-phase power to 277V. This allows the use of universal voltage (120-277V) electronic ballasts and drivers in 480V applications. It is UL and cUL approved, thermally protected, and rated for up to 50ºC ambient temperature. Reliable and efficient, it supports LED, T5, T8, CFL, and electronic HID lighting systems.
Features:
• Non-Isolated Autotransformer
• 5 Year Limited Warranty
• For Use with LED, T5, T8, CFL, or Electronic HID Ballast Operating at 277V Input Voltage
• Insulation Rating: 105ºC Class A
• UL and cUL 5085 Approved
• Thermally Protected
• No Load Power Consumption <10W
• 100ºC/212ºF Maximum Case Temperature
• 50ºC/122ºF Maximum Ambient Temperature
