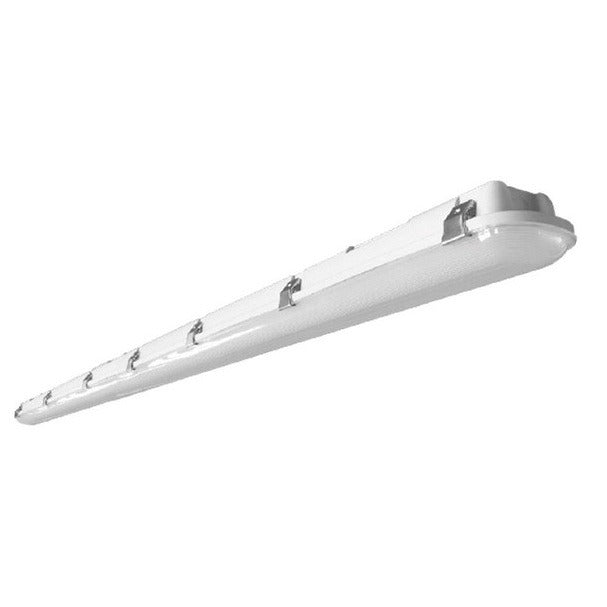

Keystone KT-VTLED90PS-8A-8CSA-VDIM Power and Color Select 8FT LED Vapor Tight Light Fixture Dimmable
Keystone KT-VTLED90PS-8A-8CSA-VDIM Power and Color Select 8FT LED Vapor Tight Light Fixture Dimmable
Specifications
Specifications
| Part Number# | KT-VTLED90PS-8A-8CSA-VDIM |
|---|---|
| Type of Area: | Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 7,560 - 11,970 |
| Wattage: | 90 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, ANSI, CUL Listed, Dimmable, DLC Approved, DLC Premium, ETL Listed, IP66, NEMA, NSF, UL Listed |
| CRI: | >80 |
| Dimensions: | 94.49" x 3.5" |
| Width: | 3.5" |
| Length: | 94.49" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
| Fixture Length: | 8 Feet / 96 Inches |
Details
Details
ShineRetrofits Input:
Keystone's 8FT LED Vapor Tight fixture is built for harsh environments. It features Power Select and Color Select technology, allowing users to choose from three wattages and three color temperatures. With an IP66 and IK10 rating, it offers strong protection against dust, moisture, and impact. This durable, dimmable fixture is ideal for food-safe, wet location applications and installs easily with included hardware.
Features:
• Color Select technology: 3500K/4000K/5000K
• Power Select technology: 90W/75W/54W
• Traditional design, narrow body, Vapor Tight fixture, suitable for rugged, demanding applications
• Powered by Keystone 120-277V, 0–10V dimming LED driver, 10% minimum
• Smooth, diffused, impact resistant polycarbonate lens provides even lit appearance
• Compatible with Keystone motion and occupancy sensors, featuring high-end trim and daylight sensing.
• Stainless steel, tamper resistant lens clips (screws not included)
• Includes mounting hardware, cordgrip, and hole plug for out-of-the-box installation
• NEMA 4X rated enclosure
• IP66 Ingress Protection
• IK10 Impact Rating
• Ambient operating temperature:-40°C/-40°F to 50ºC/122ºF
• LED chip lifetime: L70 >100,000 hours @ 25ºC/77ºF ambient fixture temperature
• UL Certified for Wet Locations
• ETL Sanitation Listed NSF/ANSI Standard 2 - Food Equipment, Splash Zone (Not for Direct Food Zone)
• DesignLights Consortium® (DLC) qualified product.
