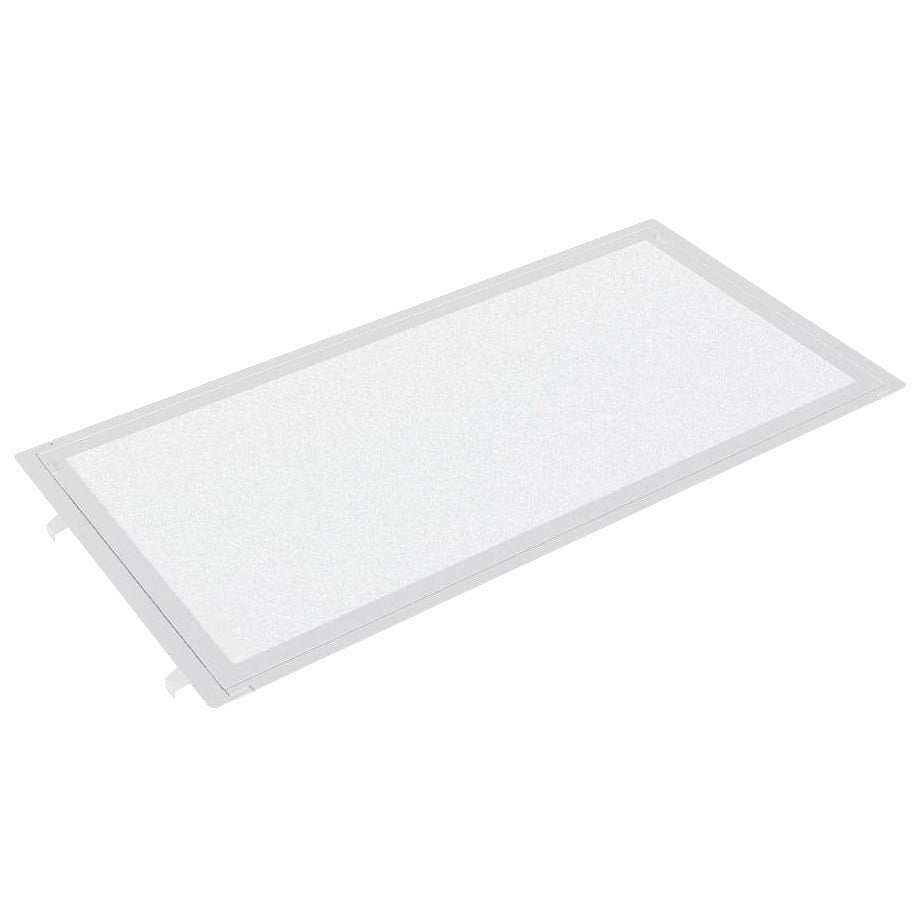

Keystone KT-RKIT45PS-24PD-8CSA-VDIM /G2 Power and Color Selectable 2x4 LED Backlit Flat Panel Doorframe Retrofit Kit Dimmable
Keystone KT-RKIT45PS-24PD-8CSA-VDIM /G2 Power and Color Selectable 2x4 LED Backlit Flat Panel Doorframe Retrofit Kit Dimmable
Specifications
Specifications
| Part Number# | KT-RKIT45PS-24PD-8CSA-VDIM /G2 |
|---|---|
| Type of Area: | Schools, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,300 - 4,950 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Approved, UL Listed |
| CRI: | >80 |
| Dimensions: | 45.43" x 22.08" x 1.47" |
| Width: | 22.08" |
| Length: | 45.43" |
| Height: | 1.47" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 16 lbs |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - Retrofit Kit |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
Keystone's 2x4 LED Backlit Flat Panel Retrofit Kit makes upgrading fluorescent lights simple. It includes Power Select and Color Select for adjustable brightness and color. Each LED has a special lens for even, glare-free light. With over 50% energy savings and a 50,000-hour lifespan, it's a smart, long-lasting solution for commercial spaces.
Features:
• Used to upgrade existing fluorescent recessed troffers, without modifying existing fixture mounting.
• Power Select technology: 45W/35W/30W
• Color Select Technology: Adjustable CCT (3500K, 4000K, or 5000K)
• Construction features precise optical lenses over each individual LED, offering optimal light diffusion and consistent surface illumination, with no risk of yellowing over product lifetime
• Powered by Keystone 0-10V Dimming LED Driver
• Compatible with Keystone SmartSafe LED Emergency Drivers
• Suitable for damp locations
• Over 50% energy savings compared to traditional fluorescent troffers
• Operating temp range -20ºC/-4ºF to 40ºC/104ºF
• LED chip lifetime: L70 >100,000 hours @ 25ºC/77ºF ambient fixture temperature
