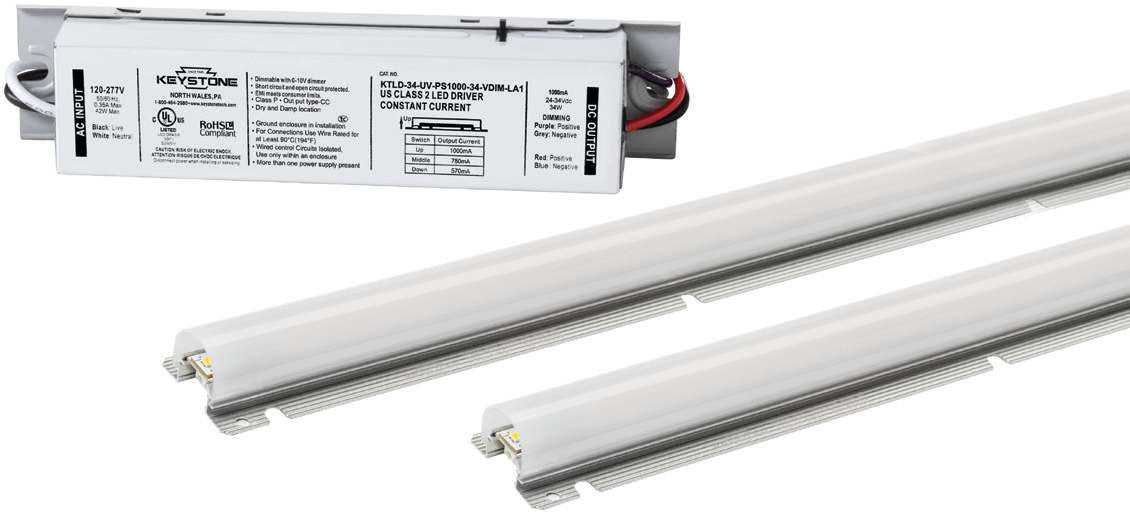

Keystone KT-RKIT31PS-2AG22 Power Selectable 22-Inch Linear LED Retrofit Kit Dimmable
Keystone KT-RKIT31PS-2AG22 Power Selectable 22-Inch Linear LED Retrofit Kit Dimmable
Specifications
Specifications
| Part Number# | KT-RKIT31PS-2AG22 |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hospitals, Commercial Offices, Retail, Banking |
| Lumen Output: | 2,907 - 5,116 |
| Wattage: | 31 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Length: | 22" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:
Keystone's KT-RKIT31PS-2AG22 is a compact 22-inch solution designed for efficient fixture upgrades. With selectable wattage settings, high lumen density, and 0–10V dimming, it provides bright, flicker-free lighting with long-lasting performance. Its low-profile design with WAGO push connectors ensures quick installation and eliminates dark spots in end-to-end connections. UL classified for field installation, this retrofit kit is ideal for commercial and industrial applications needing reliable, energy-efficient lighting.
Features:
• Power/lumens are selectable via DIP switch
• For use in Class 2 lighting systems
• High lumen density design
• Completely heat-sinked; No additional heat sinking needed to
maintain LED lifetime
• UL classified for field installation
• 2835 LED chip package
• Beam angle: 120º
• Low-profile WAGO push connectors located on the bottom of modules to eliminate dark spots on end-to-end connections
• 120–277V input; High power factor; 0–10V dimming
• Meets FCC Part 15 Class B (consumer) limit for EMI
• Operating temperature: –20ºC/–4ºF to 55ºC/131ºF
• THD: < 20%
• Low flicker LED driver
