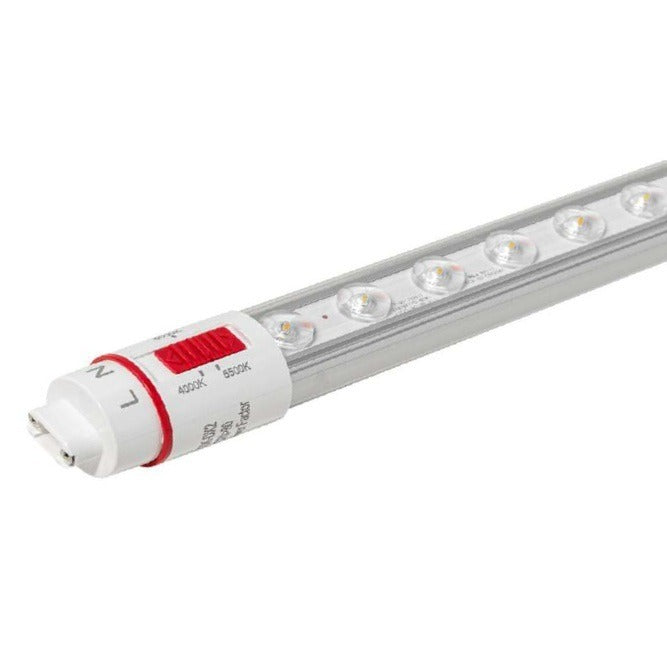

Keystone KT-LED50T8-117P2SO-8CSK-DX2 50-Watt 117-Inch Sign Hero Tube Lamp Double Ended Wiring Ballast Bypass
Keystone KT-LED50T8-117P2SO-8CSK-DX2 50-Watt 117-Inch Sign Hero Tube Lamp Double Ended Wiring Ballast Bypass
Specifications
Specifications
| Part Number# | KT-LED50T8-117P2SO-8CSK-DX2 |
|---|---|
| Type of Area: | Sign & Billboards |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 6,200 |
| Wattage: | 50 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, UL Listed |
| CRI: | >80 |
| Dimensions: | 117" x 1.10" |
| Width: | 1.10" |
| Length: | 117" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Keystone's Sign Hero LED sign tube is ideal for retrofitting T12HO fluorescent lamps. With Color Select technology (4000K, 5000K, 6500K) and a 360° beam spread, it ensures even, vibrant illumination for both single- and double-sided signs. It uses DirectDrive double-ended wiring for easy installation without a ballast or external driver. Energy-efficient and long-lasting, it offers over 50% savings and a 50,000+ hour lifespan.
Features:
• Covered by one or more Patents: list available at
https://keystonetech.com/signhero-patent/
• Keystone Color Select Technology (4000/5000/6500K)
• Ideal for both single-sided and double-sided signs
• 50,000+ hour lifetime
• 120 – 277V input
• Optical lens over individual LEDs for optimal light spread within the sign
• Listed in the UL SAM Manual
• Effective 360° beam spread
• Rotatable end caps
• Double-sided design provides even lighting in signs with no hot-spotting
• Over 50% more energy efficient than HO fluorescent lamps
• UL Classified: LED sign retrofit, evaluated to UL 48 / UL 879A Standards
• Installs using existing sockets in the sign; all necessary wiring can be done within ballast raceway
• No external driver or power supply needed
• Operating temperature: −30ºC/−22ºF to 55ºC/131ºF
• Optimized spacing 6" from the face and 12" on center
