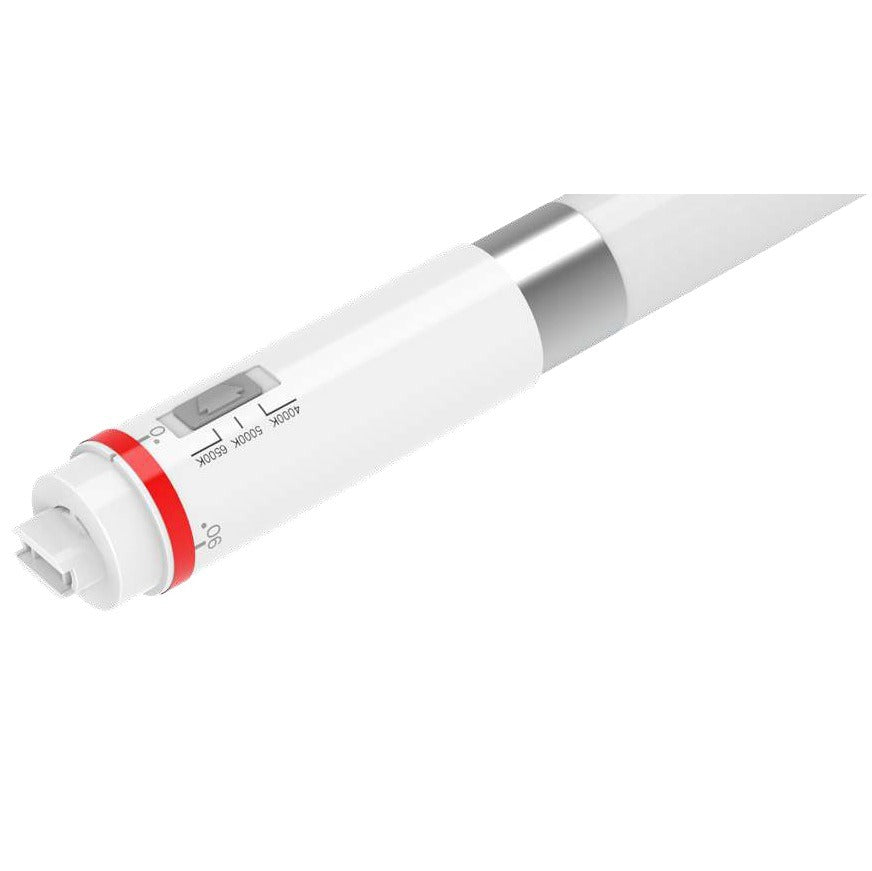

Keystone KT-LED48T8-120P2SF-8CSK-DX2 48-Watt 120-Inch Color Select T8 LED Tube Double-Sided Sign Lamp
Keystone KT-LED48T8-120P2SF-8CSK-DX2 48-Watt 120-Inch Color Select T8 LED Tube Double-Sided Sign Lamp
Specifications
Specifications
| Part Number# | KT-LED48T8-120P2SF-8CSK-DX2 |
|---|---|
| Type of Area: | Sign & Billboards |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 6,250 - 6,550 |
| Wattage: | 48 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, UL Listed |
| CRI: | >80 |
| Dimensions: | 117.91" x 1.14"’ |
| Width: | 1.14’" |
| Length: | 117.91" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The Keystone KT-LED48T8-120P2SF-8CSK-DX2 LED Sign Lamp is a 48-watt, 120-inch T8 tube designed for both single-sided and double-sided signs. With Color Select technology (4000K, 5000K, 6500K) and a frosted lens, it delivers even, diffuse lighting with no hot-spotting. The lamp features a 360° beam spread, rotatable end caps, and installs easily into existing sockets with no external driver needed. UL classified and built to last 50,000+ hours, this LED tube is over 50% more efficient than HO fluorescent lamps.
Features:
• Keystone Color Select Technology (4000/5000/6500K)
• Ideal for both single-sided and double-sided signs
• 50,000+ hour lifetime
• 120 – 277V input
• Frosted Lens provides diffuse distribution and eliminates pixelation
• Listed in the UL SAM Manual
• Effective 360° beam spread
• Rotatable end caps
• Double-sided design provides even lighting in signs with no hot-spotting
• Over 50% more energy efficient than HO fluorescent lamps
• UL Classified: LED sign retrofit, evaluated to UL 48 / UL 879A Standards
• Installs using existing sockets in the sign; all necessary wiring can be done within ballast raceway
• No external driver or power supply needed
