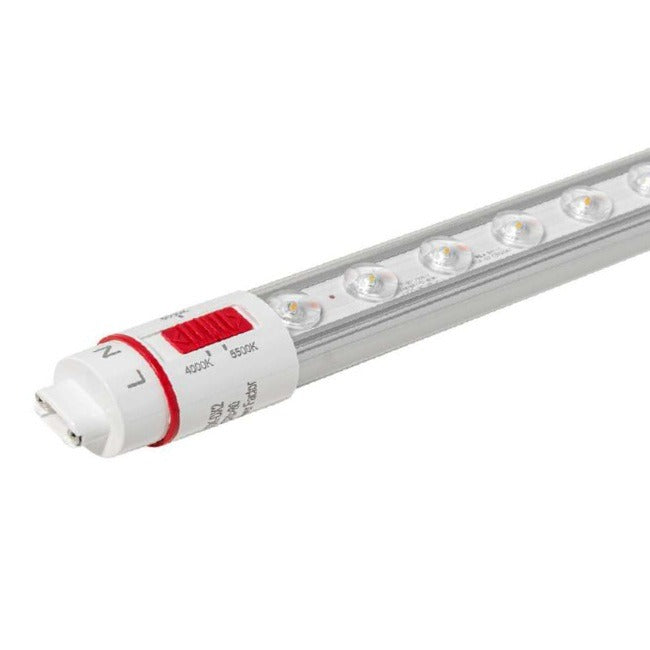

Keystone KT-LED31T8-72P2SO-8CSK-DX2 31-Watt 72-Inch Double Sided LED Sign Hero Tube Lamp
Keystone KT-LED31T8-72P2SO-8CSK-DX2 31-Watt 72-Inch Double Sided LED Sign Hero Tube Lamp
Specifications
Specifications
| Part Number# | KT-LED31T8-72P2SO-8CSK-DX2 |
|---|---|
| Type of Area: | Sign & Billboards |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 4,000 |
| Wattage: | 31 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, UL Listed |
| CRI: | >80 |
| Dimensions: | 72" x 1.10" |
| Width: | 1.10" |
| Length: | 72" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Keystone's 31-watt 72-inch double-sided LED Sign Hero Tube Lamp is designed for vibrant, even illumination in both single-sided and double-sided signs. Featuring Keystone’s Color Select Technology with selectable color temperatures of 4000K, 5000K, and 6500K, it offers optimal light spread through optical lenses over individual LEDs and a full 360° beam spread with rotatable end caps. This energy-efficient lamp lasts over 50,000 hours, requires no external driver, and installs easily using existing sign sockets and ballast raceways. UL classified and built for durability across a wide temperature range, the Sign Hero lamp provides superior lighting performance with over 50% energy savings compared to high-output fluorescent lamps.
Features:
• Covered by one or more Patents: list available at https://keystonetech.com/signhero-patent/
• Keystone Color Select Technology (4000/5000/6500K)
• Ideal for both single-sided and double-sided signs
• 50,000+ hour lifetime
• 120 – 277V input
• Optical lens over individual LEDs for optimal light spread within the sign
• Listed in the UL SAM Manual
• Effective 360° beam spread
• Rotatable end caps
• Double-sided design provides even lighting in signs with no hot-spotting
• Over 50% more energy efficient than HO fluorescent lamps
• UL Classified: LED sign retrofit, evaluated to UL 48 / UL 879A Standards
• Installs using existing sockets in the sign; all necessary wiring can be done within ballast raceway
• No external driver or power supply needed
• Operating temperature: −30ºC/−22ºF to 55ºC/131ºF
• Optimized spacing 6" from the face and 12" on center
