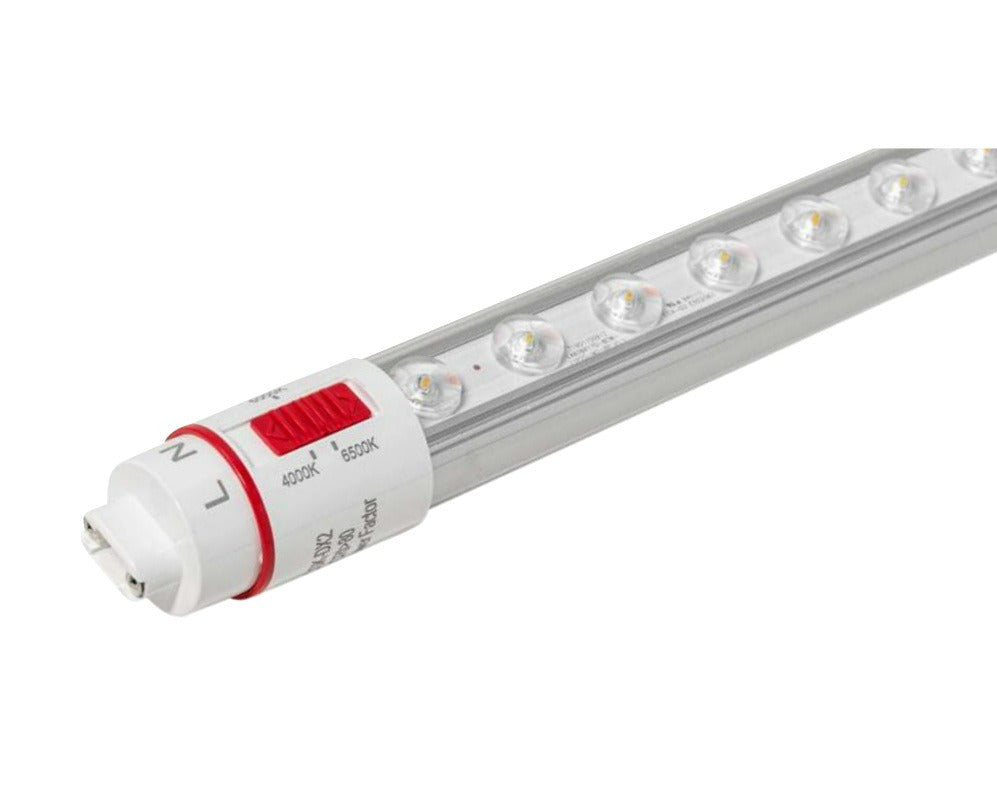

Keystone KT-LED26T8-120P1SO-8CSK-DX2 Color Selectable 26-Watt 120-Inch T8 LED Tube Single-Sided Sign Lamp
Keystone KT-LED26T8-120P1SO-8CSK-DX2 Color Selectable 26-Watt 120-Inch T8 LED Tube Single-Sided Sign Lamp
Specifications
Specifications
| Part Number# | KT-LED26T8-120P1SO-8CSK-DX2 |
|---|---|
| Type of Area: | Sign & Billboards |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 3,200 |
| Wattage: | 26 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, UL Listed |
| CRI: | >80 |
| Dimensions: | 117.91" x 1.10"’ |
| Width: | 1.10"’ |
| Length: | 117.91" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -30 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The Keystone KT-LED26T8-120P1SO-8CSK-DX2 Sign Lamp is a 120-inch, 26-watt T8 LED tube designed specifically for single-sided sign applications. Featuring Keystone’s Color Select Technology, it allows users to choose from 4000K, 5000K, or 6500K color temperatures for versatile lighting needs. With an impressive 50,000+ hour lifespan, 180° beam spread, and over 50% greater energy efficiency than traditional HO fluorescent lamps, this LED retrofit is both powerful and cost-effective. Installation is simple with existing sockets—no external driver required.
Features:
• Covered by one or more Patents: list available at https://keystonetech.com/signhero-patent/
• Keystone Color Select Technology (4000/5000/6500K)
• Ideal for both single-sided signs
• 50,000+ hours of lifetime
• 120 – 277V input
• Optical lens over individual LEDs for optimal light spread within the sign
• Listed in the UL SAM Manual
• Effective 180° beam spread
• Rotatable end caps
• Over 50% more energy efficient than HO fluorescent lamps
• UL Classified: LED sign retrofit, evaluated to UL 48 / UL 879A Standards
• Installs using existing sockets in the sign; all necessary wiring can be done within the ballast raceway
• No external driver or power supply needed
• Operating temperature: −30ºC/−22ºF to 55ºC/131ºF
• Optimized spacing 6" from the face and 12" on center
