Keystone KT-LED16T8-36P2S 16 Watt 36 Inch Sign Hero Tube Lamp Double Ended Wiring Ballast Bypass
Keystone KT-LED16T8-36P2S 16 Watt 36 Inch Sign Hero Tube Lamp Double Ended Wiring Ballast Bypass
Specifications
Specifications
| Part Number# | KT-LED16T8-36P2S |
|---|---|
| Type of Area: | Sign & Billboards |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,920-2,000 |
| Wattage: | 16 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, UL Listed |
| CRI: | 80 |
| Dimensions: | 36” x 1.10’’ |
| Width: | 1.10’’ |
| Length: | 36” |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED |
Details
Details
ShineRetrofits Input:

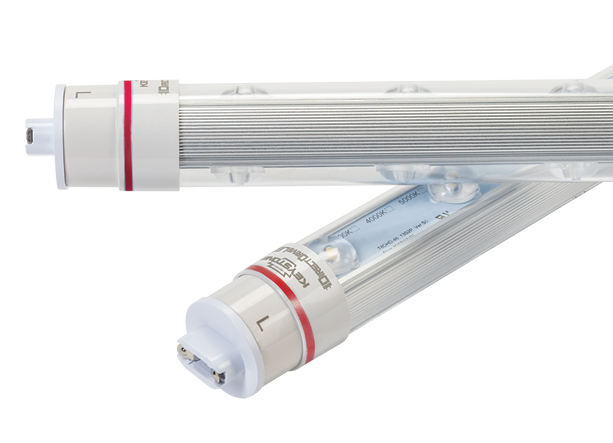

Keystone's SignHero LED Tubes are the perfect solution for single-sided or double-sided signs and can be installed in minutes with the DirectDrive technology that eliminates the need for an external driver or ballast while using the existing sockets. There are a variety of lengths available for any size sign and all come with an R17D end cap that swivels. This product is high quality, durable, and made to last with a longer life and increased energy savings over conventional T12HO and T8HO fluorescent lamps for sign applications.
Product Features:
• Patent pending
• Ideal for single-sided signs
• 50,000+ hour lifetime
• Installs using existing sockets in the sign; all necessary wiring can be done within ballast raceway
• 120-277V input
• Optical lens over individual LEDs for optimal light spread within the sign
• Listed in the UL SAM Manual
• Effective 360° beam spread
• Rotatable end caps
• Double-sided design provides even lighting in signs with no hot-spotting
• Over 50% more energy efficiency than HO fluorescent lamps
• UL Classified: LED sign retrofit, evaluated to UL 48 / UL 879A Standards
• No external driver or power supply needed
• Optimized spacing 6” from the face and 12” on center
