Keystone KT-EMRG-750-CFL4 CFL Emergency Ballast 750 Lumen 4 Pin CFL
Keystone KT-EMRG-750-CFL4 CFL Emergency Ballast 750 Lumen 4 Pin CFL
-
Specsheet:
Specifications
Specifications
| Part Number# | KT-EMRG-750-CFL4 |
|---|---|
| Lumen Output: | 750 |
| Ballast Factor: | 1.00 |
| Ballast Start Type: | Instant Start |
| Certifications | UL Listed |

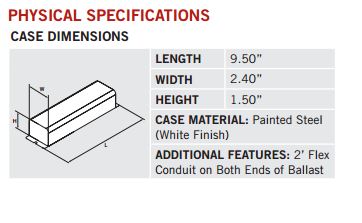

| Dimensions: | 9.50" x 2.40" x 1.50" |
| Width: | 2.40" |
| Length: | 9.50" |
| Height: | 1.50" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 2.41 lbs |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Ballast |
Details
Details
ShineRetrofits Input:
Keystone KT-EMRG-750-CFL4 CFL Emergency Ballast is designed for 4-pin CFL lamps, providing 750 lumens of emergency light output. It can support 1 to 4 lamps in normal operation, switching to one lamp in emergency mode. Ideal for use in new or existing fixtures with or without an AC ballast, this ballast features a 2-in-1 LED indicator light and push-to-test switch for code compliance testing. The internal battery, which automatically connects to the fluorescent lamp(s) via an internal solid-state transfer switch, ensures a minimum of 90 minutes of emergency illumination and fully recharges in 24 hours with a fully automatic solid-state, two-rate charger. It is designed for use in both switched and unswitched fixtures and comes with a 5-year warranty.
Product Features:
Input Voltage: 120/277V, 60Hz
No. of Lamps: 1-4
Primary Lamp Type: 4-Pin CFL
Warranty: 5 Years
Operating Details:
• For use in new or existing fixtures, with or without an AC ballast, where emergency lighting is needed.
• Operates one lamp in the emergency mode.
• 2-in-1 LED indicator light and push-to-test switch (for mandated code compliance testing).
• Internal battery automatically connects to the fluorescent lamp(s) for a minimum 90-minute emergency illumination via an internal solid-state transfer switch.
• A discharged battery completely recharges in 24 hours, via a fully automatic solid-state, two-rate charger.

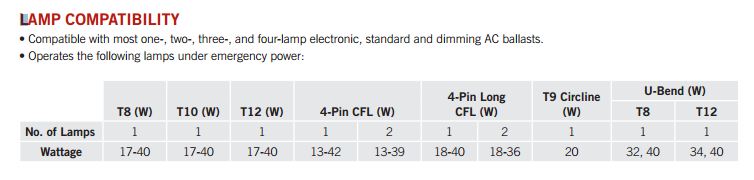

Lamp Compatibility:
• Compatible with most one-, two-, three-, and four-lamp electronic, standard and dimming AC ballasts.
• Operates the following lamps under emergency power.
Mounting:
• UL listed for factory or field installation. Suitable for damp locations.
• Can be mounted inside, on top, or remote from the fixture.
• Designed to be used in both switched and unswitched fixtures.
