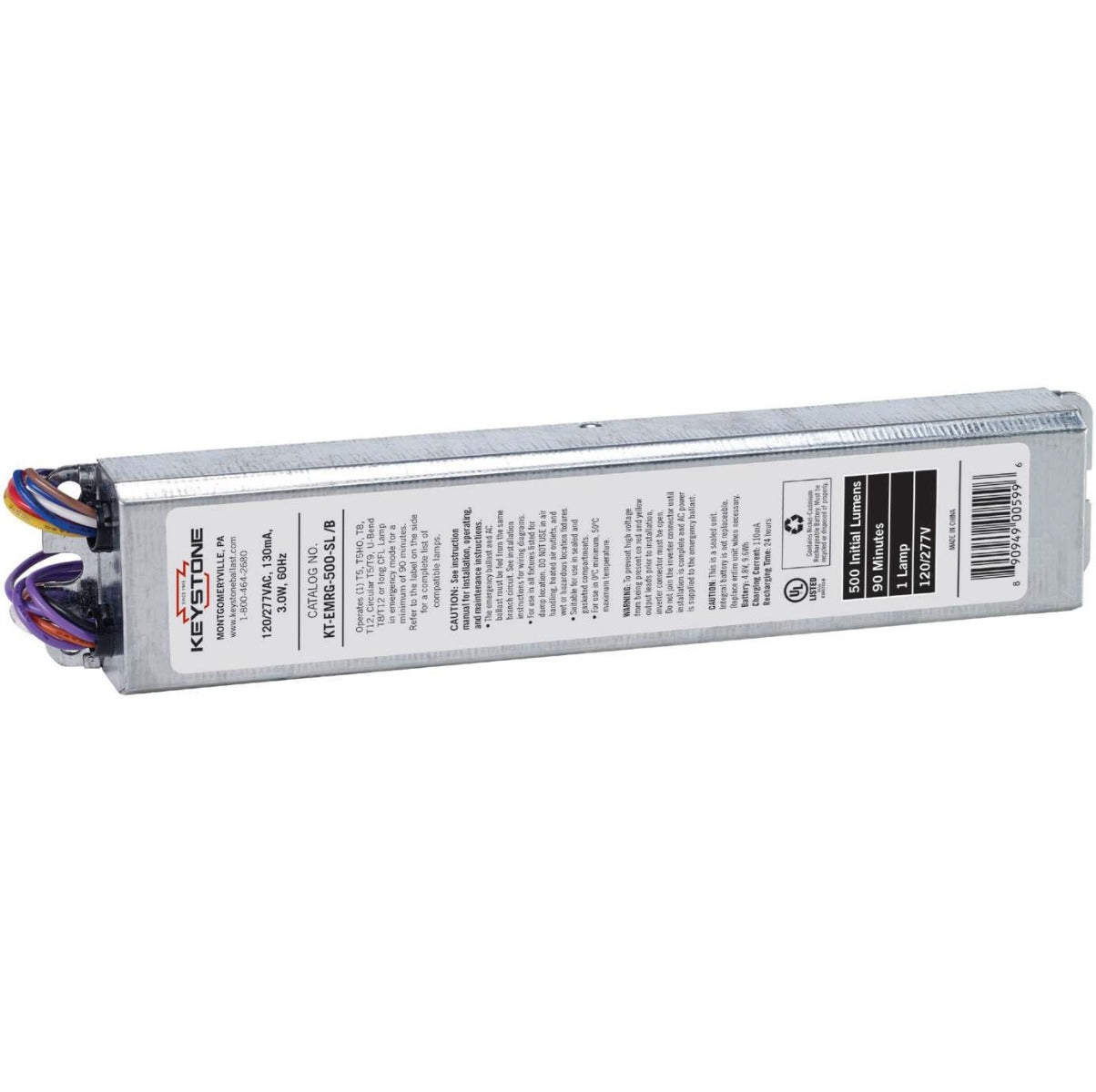

Keystone KT-EMRG-500-SL/B T8 or T12 Emergency Ballast 500 Lumen 90 Minutes Low Profile Case
Keystone KT-EMRG-500-SL/B T8 or T12 Emergency Ballast 500 Lumen 90 Minutes Low Profile Case
-
Specsheet:
Specifications
Specifications
| Part Number# | KT-EMRG-500-SL/B |
|---|---|
| Lumen Output: | 500 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, UL Listed |
| Dimensions: | 10.00" x 2.10" x 1.19" |
| Width: | 2.10" |
| Length: | 10.00" |
| Height: | 1.19" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -20 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.00 lbs |
| Manufacturer: | Keystone Technologies |
| Technology: | Emergency Ballast |
Details
Details
ShineRetrofits Input:
The Keystone KT-EMRG-500-SL/B Emergency Ballast delivers 500 lumens of light for up to 90 minutes during power loss. Designed for T8 and T12 lamps, it features a slim, low-profile case for easier installation in tight fixtures. It includes a push-to-test switch and LED indicator for required code compliance testing. With a quick 24-hour recharge, time delay technology, and a 5-year warranty, this ballast ensures reliable emergency lighting.
Features:

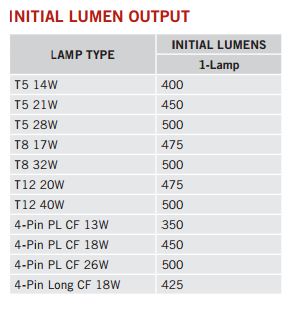

LIGHT OUTPUT: 500 Lumen
BATTERY: 4.8V Sealed NiCD
INPUT VOLTS: 120/277V, 60Hz
ILLUMINATION TIME: 90 Minutes
WARRANTY: 5 Years
Operating Details:

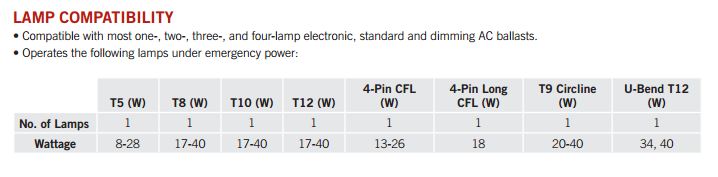

• For use in new or existing fixtures, with or without an AC ballast, where emergency lighting is needed.
• Operates one lamp in the emergency mode.
• 2-in-1 LED indicator light and push-to-test switch (for mandated code compliance testing).
• Internal battery automatically connects to the fluorescent lamp for minimum 90 minute emergency illumination via an internal solid-state transfer switch.
• A discharged battery completely recharges in 24 hours, via a fully automatic solid-state, two-rate charger.
• AC output helps to guarantee compatibility with new lamp technologies.
• Features Time Delay Technology which helps to overcome end-of-life circuit protection.
