Keystone KT-CLED40PS-S1-8CSB-VDIM Power and Color Selectable LED 8-Inch Square Canopy Light Fixture Dimmable
Keystone KT-CLED40PS-S1-8CSB-VDIM Power and Color Selectable LED 8-Inch Square Canopy Light Fixture Dimmable
Specifications
Specifications
| Part Number# | KT-CLED40PS-S1-8CSB-VDIM |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Parking Garage |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,500 - 5,600 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, 175W HID Equivalent, CUL Listed, Dimmable, DLC Premium, IP65 / IP66 / IP67, UL Listed |
| CRI: | > 80 |
| Dimensions: | 8.12" x 8.12" x 3.99" |
| Width: | 8.12" |
| Length: | 8.12" |
| Height: | 3.99" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

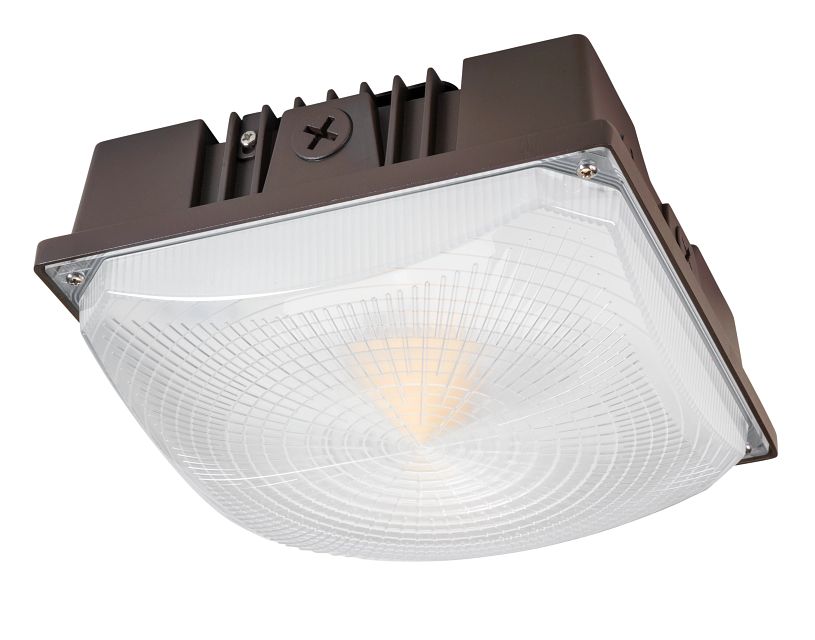

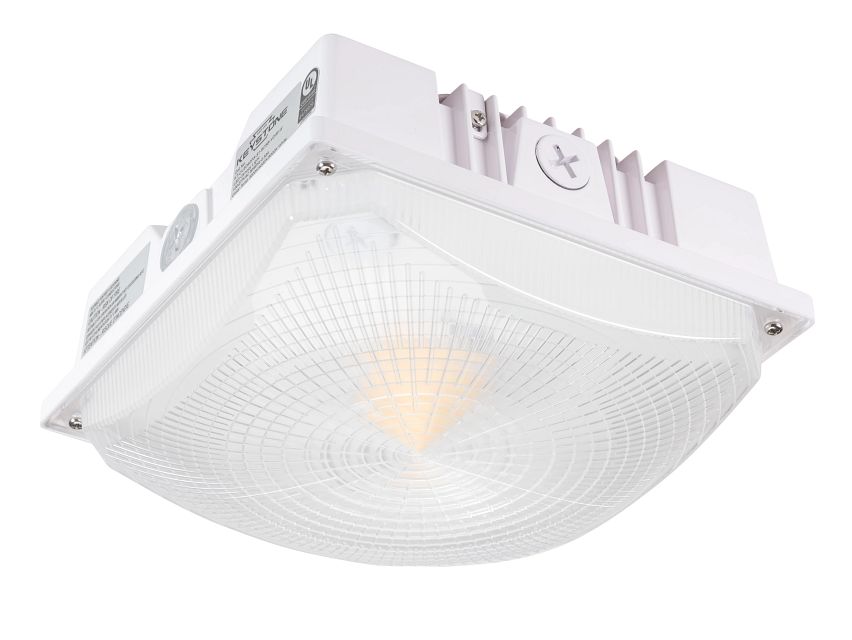

Keystone's KT-CLED 8-inch Square Canopy Light Fixture offers flexibility and durability with its Keystone Power Select technology (40W/30W/20W) and Color Select technology (3000K/4000K/5000K). Its heavy-duty die-cast aluminum housing and low-profile design make it suitable for various new and replacement installations. The built-in dusk-to-dawn photocell and impact-resistant polycarbonate diffuser ensure reliable performance, while compatibility with occupancy sensors and wireless controllers enhances functionality.
Features:
• Keystone Power Select technology (40W/30W/20W)
• Keystone Color Select technology (3000/4000/5000K)
• Familiar, low-profile design ideal for a wide range of new and replacement installations
• Heavy-duty die-cast aluminum housing with a modern aesthetic and (3) 1/2" NPT threaded conduit hubs
• Suitable for standard junction box mounting or 3/4" NPT pendant mounting
• Built-in dusk-to-dawn photocell behind translucent 3/4" threaded plug with anti-yellowing agent
• Impact-resistant, polycarbonate diffuser with 160° parking garage distribution. Perfect for low-mounting applications
• Optional 110° canopy distribution diffuser available. Perfect for high-mounting applications
• Compatible with KTS-MW3-12V-PKO, quick install bi-level occupancy sensor accessory available
• Compatible with KTSL-FC4-12V-PKO, SmartLoop Bluetooth wireless controller accessory available
• Powered by Keystone LED 0−10V dimming driver
• Ambient operating temperature: −40°C/−40°F to 50°C/122°F
• UL certified for wet locations, IP65 rated
• Power Factor: > 0.95
• THD: < 20%
• L70 @ >100,000 hrs @ 25°C/77°F ambient fixture temperature
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
