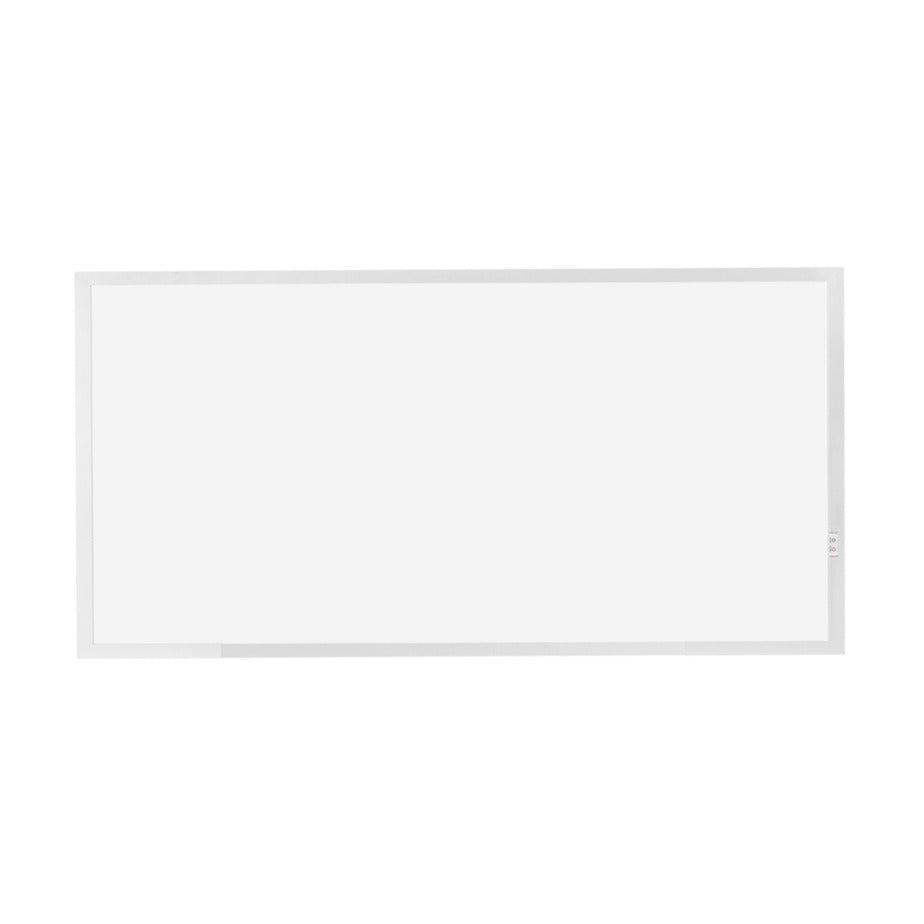

Keystone KT-BPLED45PS-24C-8CSA-VDIM-EM8 Power and Color Selectable 2x4 LED Backlit Flat Panel with Integrated Emergency Pack
Keystone KT-BPLED45PS-24C-8CSA-VDIM-EM8 Power and Color Selectable 2x4 LED Backlit Flat Panel with Integrated Emergency Pack
Specifications
Specifications
| Part Number# | KT-BPLED45PS-24C-8CSA-VDIM-EM8 |
|---|---|
| Type of Area: | Schools, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 3,850 - 5,650 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, UL Listed |
| CRI: | >80 |
| Dimensions: | 47.71" x 23.74" x 1.47" |
| Width: | 23.74" |
| Length: | 47.71" |
| Height: | 1.47" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - Retrofit Kit |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
Keystone's KT-BPLED45PS-24C-8CSA-VDIM-EM8 delivers reliable, energy-efficient performance with advanced flexibility. Featuring Keystone’s Power Select and Color Select technologies, this flat panel allows wattage and CCT adjustments between 3500K, 4000K, and 5000K for tailored illumination. Designed with precision optical lenses for uniform light diffusion, it ensures consistent, glare-free performance without yellowing over time. With an integrated 8W emergency driver, 0–10V dimming, and long 100,000-hour LED lifetime, it’s the ideal solution for offices, schools, and commercial applications seeking efficiency and dependable backup lighting.
Features:
• Features Keystone Color Select technology. Adjust CCT between 3500/4000/5000K
• Features Keystone Power Select technology.
• Extruded aluminum frame with precision laser-welded corners and satin white
powder coating
• Suitable for recessed or surface mount (with optional accessories)
• Construction features precise optical lenses over each individual LED, offering optimal light diffusion and consistent surface illumination, with no risk of yellowing over product lifetime
• UL Certified for Dry/Damp locations
• Powered by Keystone 0-10V dimmable LED driver with built-in junction box
• LED chip lifetime: L70 >100,000 hours @ 25°C/77°F ambient fixture temperature
• Over 50% energy savings compared to traditional fluorescent troffers
• Operating temp range -20°C/-4°F to 40°C/104°F
• IC Rated
• Complete, pre-wired emergency panel solution—including test button
• Built-in 8W LED Keystone SmartSafe Emergency Driver compliant with CEC T20
• Included expanded J-box for easy wiring
