ShineRetrofits Input:

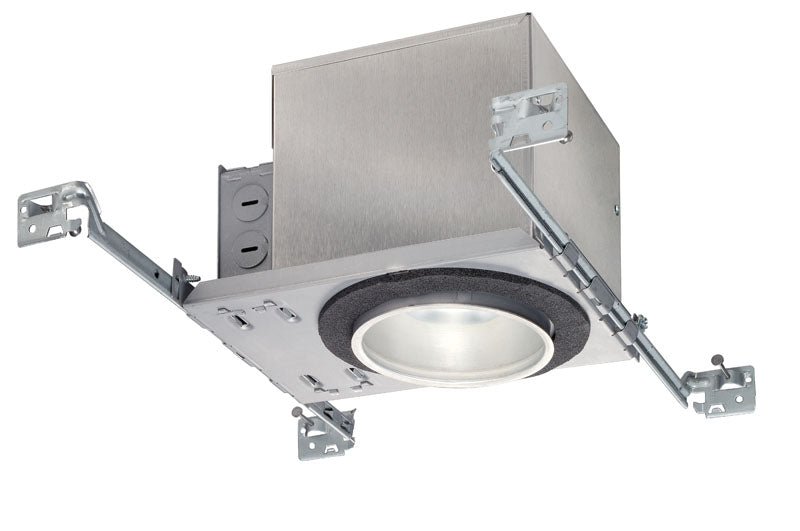

Juno Lighting's 4 Inch LED recessed housing is energy efficient and designed for new constrution. It is IC rated and can be completely covered with insulation and adjusts vertically to accomodate up to a 1.5 inch ceiling thickness.  Replaces a 65W incandescent source and offers the highest quality LEDs.

Product Specifications:
LED Light Engine: LED array attached to high purity aluminum, thermally conductive inner housing provides superior heat transfer to ensure long life of the LED • Replaceable light engine mounts directly to inner housing assembly and incorporates the latest generation, high lumen output LED array • LEDs are binned within a 3-step MacAdam Ellipse.requirements for superior fixture to fixture color uniformity • 2700K, 3000K, 3500K, or 4000K color temperatures available • 90 CRI minimum.

Optical System:
Angle-cut aluminum reflector and specular clear kicker reflector directs light toward wall for uniform illumination on vertical surfaces while concealing LED optic assembly and minimizing glare • LEDs are concealed by high transmission diffusing lens.

Aesthetic Trim Selections:
Recessed lensed wall wash trim • Shadow free, knife edge design blends seamlessly into ceiling • Reflector finishes include clear, haze, wheat haze and white painted.

LED Driver:
Choice of dedicated 120 volt (120) driver or universal voltage (MVOLT) driver that accommodates input voltages from 120-277 volts AC at 50/60Hz • Power factor > 0.9 at 120V input • 120 volt only driver is dimmable with the use of most incandescent, magnetic low voltage and electronic low voltage wall box dimmers • Universal voltage driver is dimmable
with the use of most 0-10V wall box dimmers • For a list of compatible dimmers, see JUNOICLED-DIM • Mounted inside housing for easy access from below ceiling.

Life:
Rated for 50,000 hours at 70% lumen maintenance.

Labels:the high efficacy requirements of California T24 with select trims • UL listed for U.S. and Canada through-branch wiring, damp locations • Union made • UL and cUL.

Testing:
All reports are based on published industry procedures; field performance may differ from laboratory performance.
Product specifications subject to change without notice.

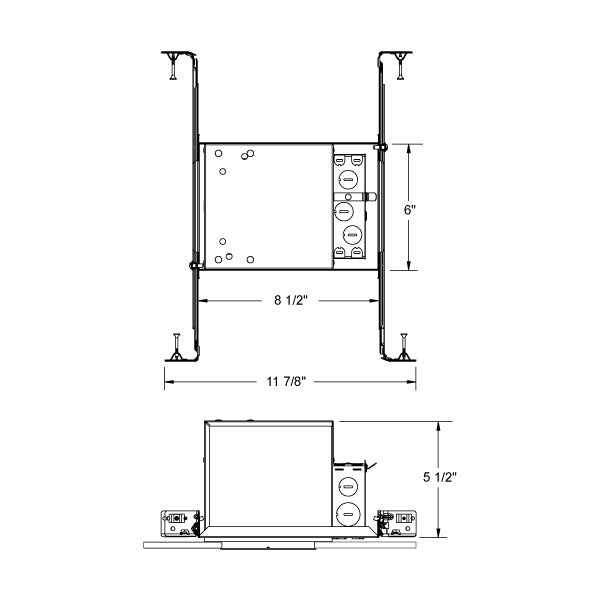

Housing Features:
Housing: Designed for use in IC (insulated ceiling) or non-IC construction • Aluminum housing sealed for Air-Loc® compliance • Housing is vertically adjustable to accommodate up to a 11⁄2” ceiling thickness.

Junction Box:
Pre-wired junction box provided with (6) 1⁄2” and (1) 3⁄4” knockouts, (4) knockouts for 12/2 or 14/2 NM cable and ground wire • UL listed and cUL listed for through-branch wiring, maximum 6 #12 branch circuit conductors • Junction box provided with removable access plates • Knockouts equipped with pryout slots • Quick connect electrical connectors supplied as standard for fast, secure installation.

Mounting Frame:
22-gauge die-formed galvanized steel mounting frame • Rough-in section (junction box, mounting frame, housing and bar hangers) fully assembled for ease of installation.

Real Nail 3 Bar Hangers:
Patented (US Patent D552,969) Real Nail® 3 bar hangers: telescoping system permits quick placement of housing anywhere within 24” O.C. joists or suspended ceilings • Includes removable nail for repositioning of fixture in wood joist construction • Integral T-bar notch and clip for suspended ceilings. * Nominal input wattage @ 120-volt operation with dedicated 120-volt driver under stable operating conditions.
