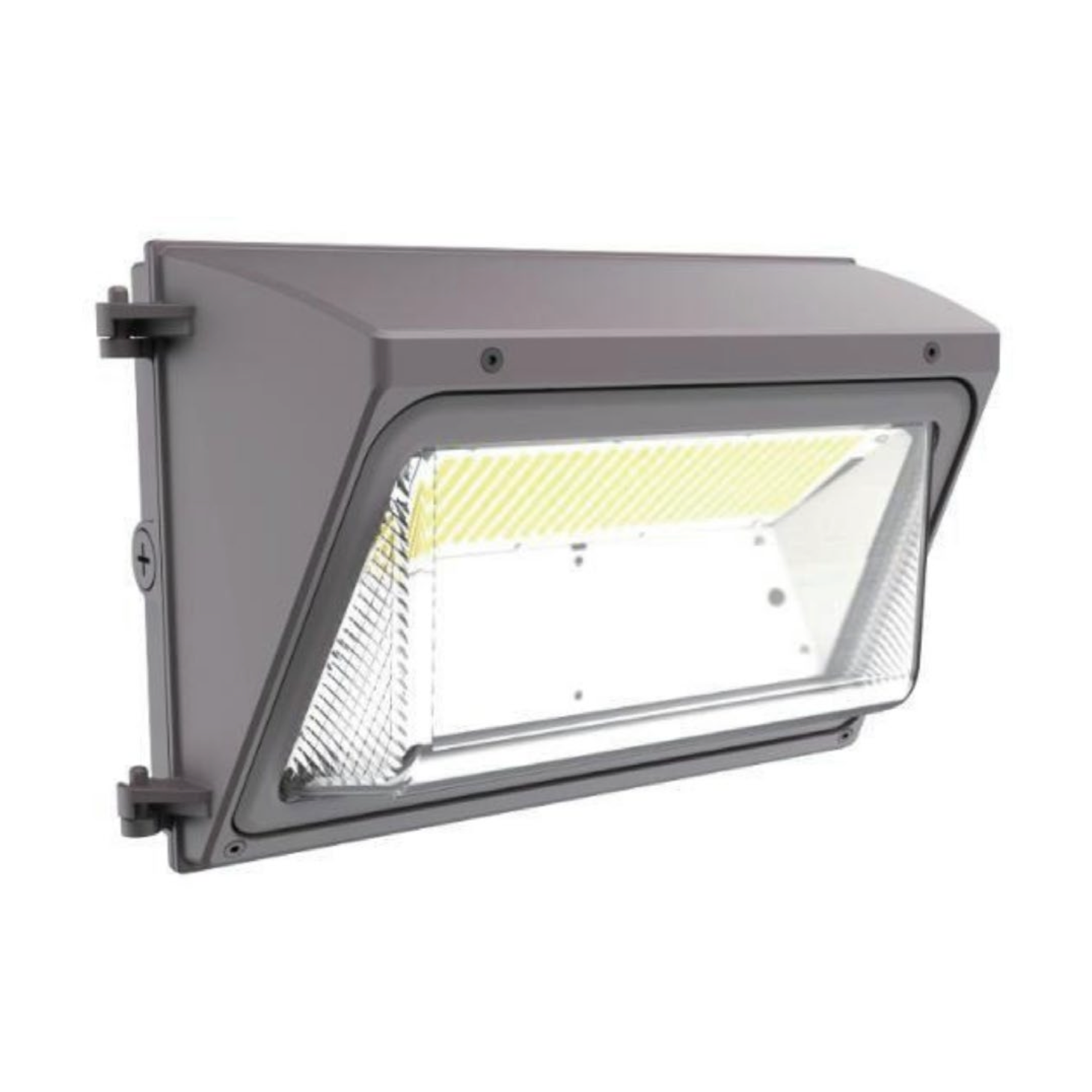

Jarvis Lighting JWP-FT Wattage and CCT Selectable Forward Throw LED Wall Pack Light Fixture
Jarvis Lighting JWP-FT Wattage and CCT Selectable Forward Throw LED Wall Pack Light Fixture
Specifications
Specifications
| Part Number# | JWP-FT |
|---|---|
| Type of Area: | Large Retail & Open Areas, Parking Garage, Schools, Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lumen Output: | 9,000 - 18,000 |
| Wattage: | 60W/90W/100W/120W |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, DLC Premium, UL Listed |
| CRI: | ≥ 80 |
| Dimensions: | 14.5" x 6.5" x 9.3" |
| Width: | 6.5" |
| Length: | 14.5" |
| Height: | 9.3" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.6 lbs |
| Manufacturer: | Jarvis Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Jarvis JWP-FT is a forward throw LED wall pack light fixture with selectable wattage and color temperature. It delivers up to 150 lm/W and operates on 120–277V input. Designed with a built-in photocell and 6kV surge protection, it supports reliable outdoor performance. Compatible with Jarvis Link™ via Z10 receptacle knuckle arm. Engineered for operation in temperatures from -40°C to 50°C.
Features:
• Capable of up to 150 lm/W
• Wattage and CCT Selectable
• Built-in photocell
• Jarvis Link™ compatible via Z10 receptacle knuckle arm
• 10 Year Limited Warranty
Electrical:
• Input voltage: 120V-277V
• Power Factor: >0.9 at full load
• Total Harmonic Distortion: 20%
• Operating temperature: -40°C - 50°C (-40°F - 122°F)
• 6kV surge protection
