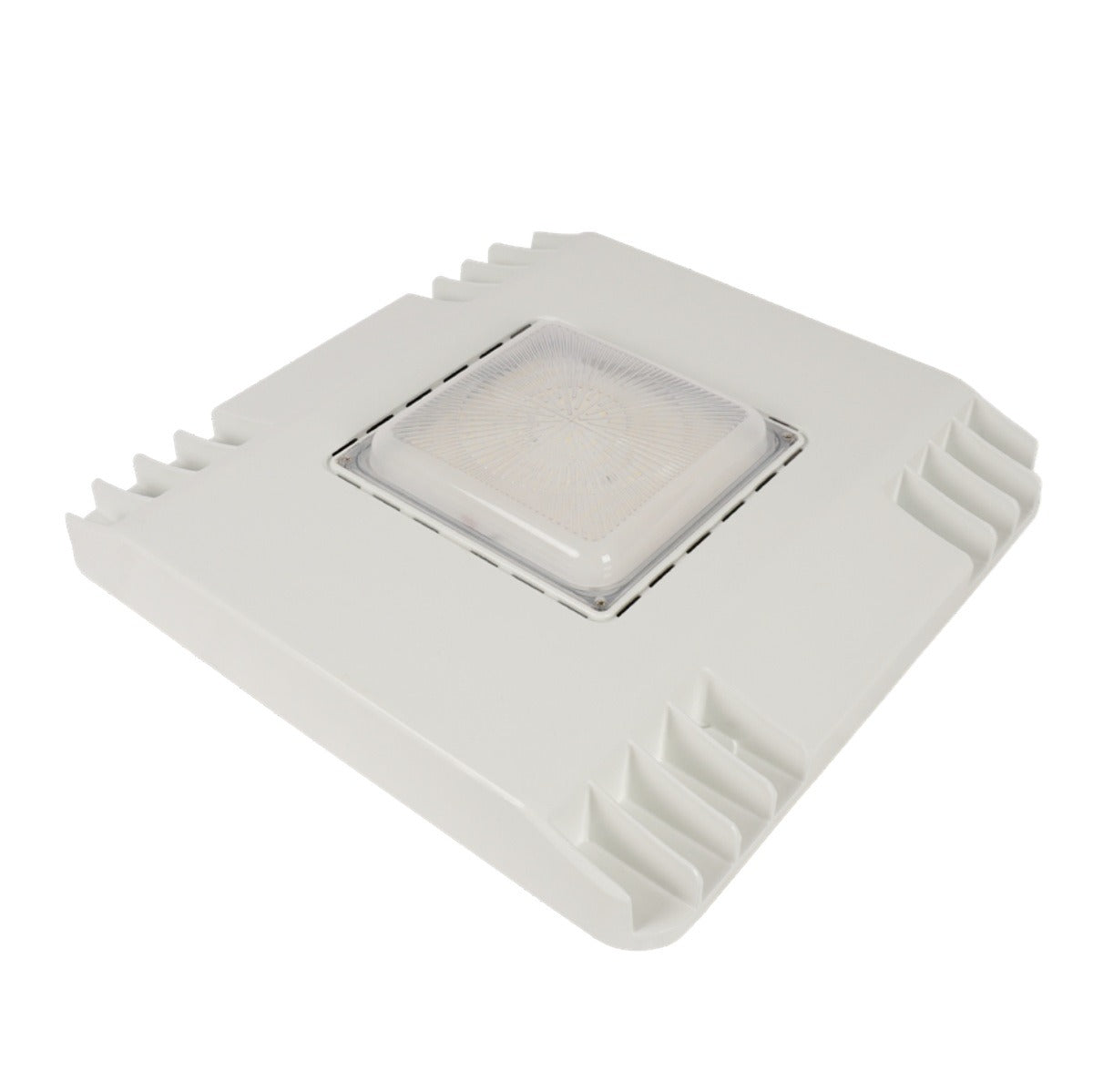

Jarvis Lighting JDS-V LED Power and Color Selectable LED Gas Station Canopy Light Fixture Dimmable
Jarvis Lighting JDS-V LED Power and Color Selectable LED Gas Station Canopy Light Fixture Dimmable
Specifications
Specifications
| Part Number# | JDS-V-13ML19-35K/40K/50K-YY-UV-DRP-WHT-DM |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Parking Garage |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 13,000 - 20,842 |
| Wattage: | 150 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Premium, ETL Listed, IP65 / IP66 / IP67, LM79 / LM80, UL Listed, Title 24 Compliant |
| Dimensions: | 15.2" x 15.2" x 3.3" |
| Width: | 15.2" |
| Length: | 15.2" |
| Height: | 3.3" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 8.2 lbs |
| Manufacturer: | Jarvis Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Jarvis Lighting JDS-V LED Gas Station Canopy Light Fixture is a power and color selectable, dimmable solution built for long-lasting performance. With adjustable color temperature options (3000K, 4000K, or 5000K), this canopy light ensures the right lighting for any application. Designed with durable materials, stainless-steel fasteners, UV-resistant lens, and IP65 wet location rating, it provides reliable operation in harsh conditions. Backed by a 10-year warranty and over 50,000 hours of projected LED life, the JDS-V Series delivers energy-efficient, dependable lighting for gas stations and commercial canopies.
Features:
• Input Voltage: 120-277V 50/60Hz
• Power Factor: >0.9 at full load
• Total Harmonic Distortion: <20% full load
• Operating Temperature Range: -40º C - 45º C Ambient (-40º F to 113º F)
• Power supply includes internal 6kV surge protection.
• Lens construction is single piece UV reistant polycarbonate.
• Luminaire’s construction contains zero mercury.
• Fasteners are stainless-steel and will not rust or create ruststreaks.
• LED color temperature is selectable and can be set to 5000K, 4000K or 3000K during installation.
• UL certified to UL 1598 for both US and Canada
• State of California Title 24 Compliant when installed in
• accordance with local requirements
• Rated for Wet Locations
• Rated to IP65
• The JDS-V Series carries a 10-year limited warranty. Contact Jarvis representative for details.
• Projected LED lifetime exceeds 50,000 hours under most operating conditions. Lifetime projections are calculated using data including LM-79, LM-80 and TM-21 calculations.
