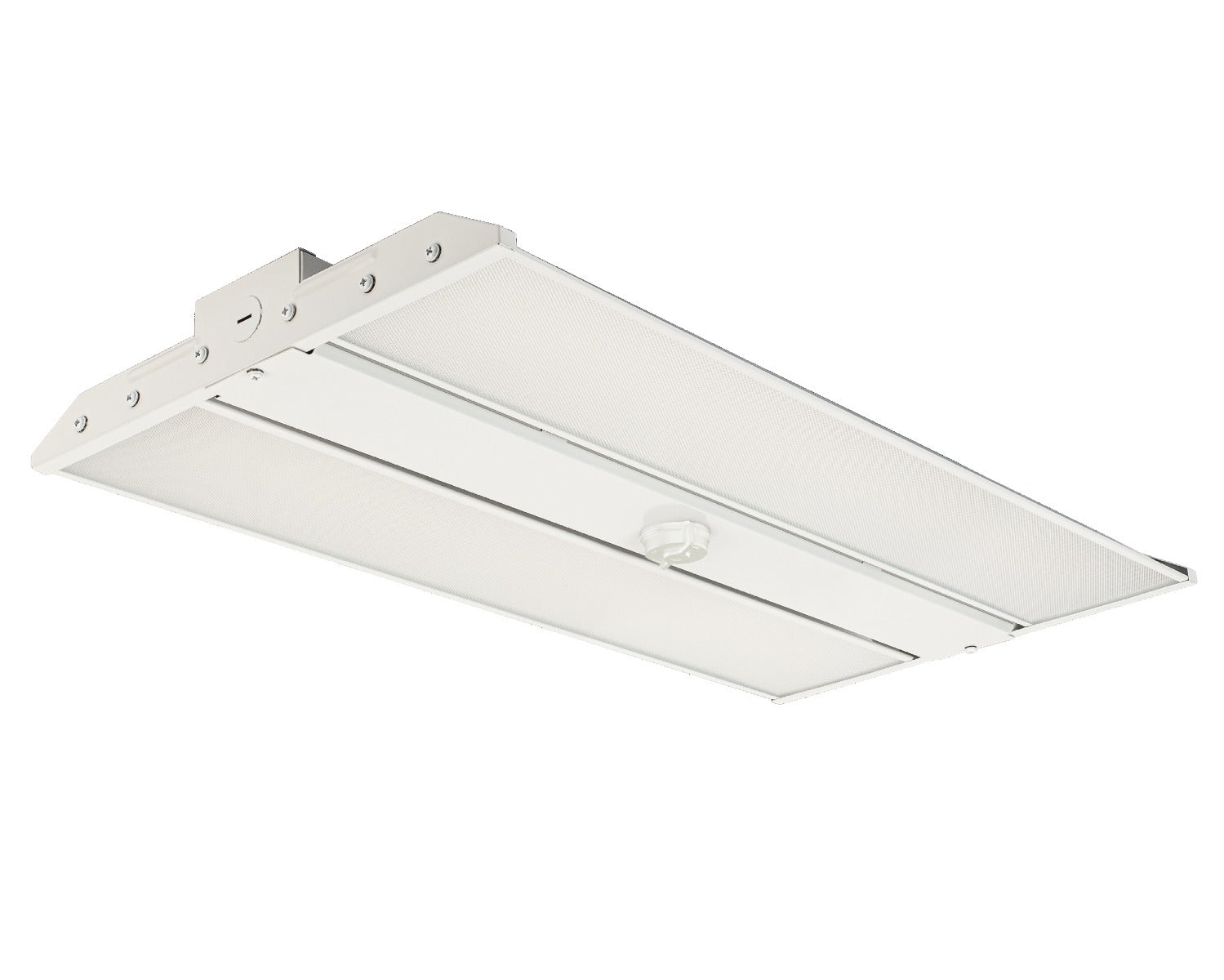

Jarvis Lighting HBL-A Series Power and Color Selectable LED Linear High Bay Light Fixture Z10-Ready Dimmable
Jarvis Lighting HBL-A Series Power and Color Selectable LED Linear High Bay Light Fixture Z10-Ready Dimmable
Specifications
Specifications
| Part Number# | HBL-A |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 13,500 - 45,000 |
| Wattage: | 300 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Premium, ETL Listed, LM79 / LM80, UL Listed, Title 24 Compliant |
| CRI: | ≥ 80 |
| Width: | 12.7" |
| Length: | 24.6" - 48" |
| Height: | 2.0" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5.9 - 13.6 lbs |
| Manufacturer: | Jarvis Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Jarvis Lighting HBL-A Series Power and Color Selectable LED Linear High Bay Light Fixture is a versatile, Z10-ready solution for industrial and commercial lighting applications. Delivering 150 lm/W efficacy with adjustable wattage and color temperature options, this LED high bay ensures maximum efficiency and customization. Designed with 0-10V dim-to-off, 12V auxiliary power, and full compatibility with Jarvis Link networked lighting control systems, it provides smart, future-ready performance. With built-in overvoltage, overcurrent, and short-circuit protection plus a 10-year warranty, the HBL-A Series is engineered for durability and long-term reliability.
Features:
• Compatible with Jarvis Link networked lighting control systems
• Z10 ready
• 0-10V dim-to-off + 12v auxiliary power for accessories
• Adjustable color temperature and wattage options available
• 150 lm/w efficacy
• 10 Year Warranty
• Input Voltage: 120-277V or 277-480V, 50/60Hz
• Power Factor: >.9 at full load
• Total Harmonic Distortion: <20% full load
• Includes overvoltage protection, overcurrent protection, and short circuit protection.
• Operating Temperature Range: -40⁰C to 45⁰ C Ambient (-40⁰F to 113⁰F)
