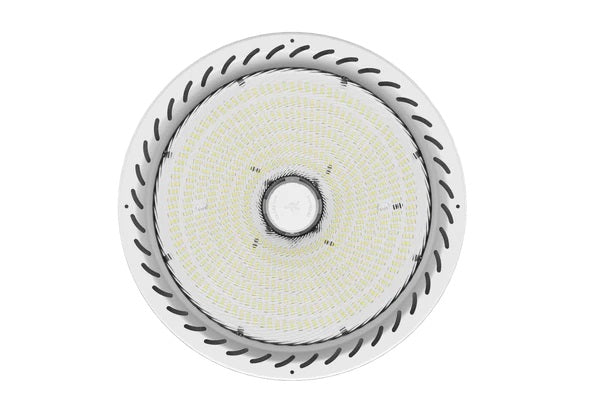

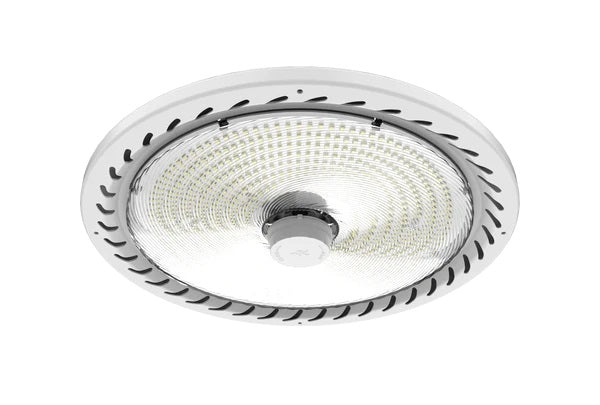

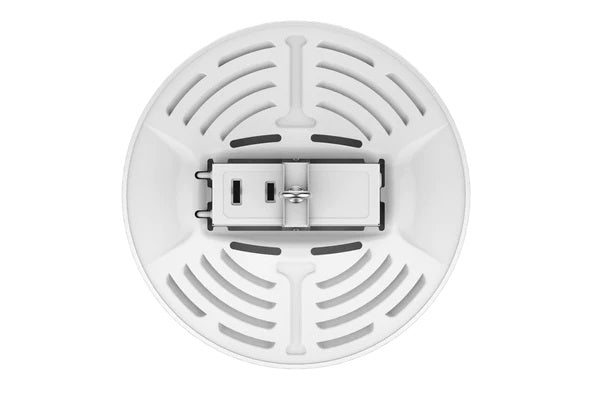

Jarvis Light HBR-G2 Series Lumen and Color Selectable LED UFO High Bay Light Fixture - Z10 Sensor Ready
Jarvis Light HBR-G2 Series Lumen and Color Selectable LED UFO High Bay Light Fixture - Z10 Sensor Ready
-
Specsheet:
Specifications
Specifications
| Part Number# | HBR-G2 |
|---|---|
| Type of Area: | Industrial & Warehouse, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 13,000 - 30,600 |
| Wattage: | 220 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Premium, UL Listed, Title 24 Compliant |
| CRI: | ≥ 80 |
| Dimensions: | 12.2" - 14.1" Dia |
| Height: | 3.2" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.3 - 4.4 lbs |
| Manufacturer: | Jarvis Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Jarvis Lighting's HBR-G2 Series LED UFO High Bay Light Fixture, equipped with Z10 Sensor readiness, sets a new standard in industrial lighting. Its robust design and superior efficiency make it an ideal choice for high-bay applications, ensuring easy installation, minimal maintenance, and compliance with safety standards. Experience significant energy savings and reliable performance, making it a smart and efficient solution for demanding lighting projects. With Z10 accessory-readiness, an optical diffuser for improved eye comfort and reduced glare, and housing constructed from durable stamped steel with integrated thermal management, the HBR-G2 Series exemplifies durability and advanced technology for optimal fixture longevity and performance.
Features:
• Compatible with Jarvis Link networked lighting control systems
• Z10 accessory-ready
• 0-10V dim-to-off + 12v auxiliary power for accessories
• 140 lm/w efficacy
• Optical diffuser improves eye comfort and reduces glare
• Housing built from durable stamped steel with integrated thermal management for increased fixture longevity
• 10-year warranty
