Features

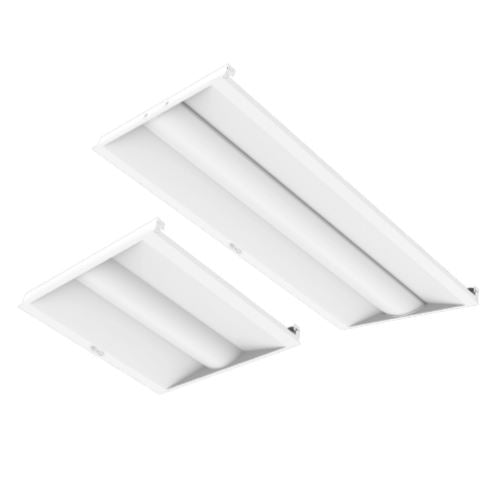

• Ultra-shallow 2.1-inch depth is ideal for low-plenum spaces. Matte white post-paint finish provides uniform, indirect illumination.
• Supports grid, flange, and surface mounting for installation in diverse applications.
• Controls-ready for interface with the NUROAir System.
• Available in 1 × 4, 2 × 2, and 2 × 4 sizes, with field-selectable or factory-set lumen outputs ranging from 2,000 to 8,000 lumens.
• Field-selectable or factory-set CCT options: 2700K, 3000K, 3500K, 4000K, and 5000K.
• Delivers up to 180 lumens per watt with a CRI greater than 80.
• Supports an integrated wireless control option for enhanced energy savings.

Models

• VR14 - 1x4, 20L/40L 20L/25L/30L/40L - Lumen Selectable
• VR22 - 2x2, 20L/40L 20L/25L/30L/40L - Lumen Selectable
• VR24 - 2x4, 25L/50L 25L/30L/40L/50L - Lumen Selectable
• VR24 - 2x4, 50L/80L 50L/55L/65L/80L - Lumen Selectable
• Optional surface mount, flange kits and emergency back up available. Contact us for details and pricing.

Construction

Steel housing with a white-finish body provides rigidity, durability, and ease of installation. The matte white post-paint finish delivers uniform, indirect illumination. Designed for maximum performance and improved aesthetics.

Electrical

• Class 2 LED light engine for high efficacy and long life.
• Calculated L70 greater than 100,000 hours. LED lumen maintenance estimates are based on TM-21 projections for the light source at 25°C ambient.
• Power factor greater than 0.90.
• Standard 120–277 Vac operation with 0–10V dimming from 10% to 100%.
• Optional 347 Vac step-down transformer.
• Optional emergency battery backups are available to meet critical life safety lighting requirements.
• Lumen- and CCT-selectable fixtures have adjustment switches on the top side of the driver.
• Lumen-selectable fixtures ship at the highest lumen output. CCT-selectable fixtures ship at 4000K.

Installation

• VST fits standard 9/16-inch and 15/16-inch T-grid ceilings.
• Optional Flange Kit (FLGK) for recessed drywall mounting and Surface Mount (SM) options for ceiling mounting.
• Top-mounted access plate allows easy hardwire power connections.
• Optional factory-installed power flex conduit whip (MC) helps reduce electrical installation time.

Warranty

Standard 5-year warranty.
