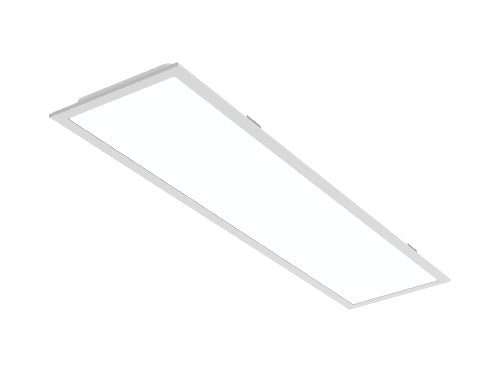

ILP VPAN Select Color Selectable 1x4 LED Back Lit Flat Panel Light Fixture Dimmable
ILP VPAN Select Color Selectable 1x4 LED Back Lit Flat Panel Light Fixture Dimmable
Specifications
Specifications
| Part Number# | VPAN14 |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Hospitals, Commercial Offices, Education, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,200 - 4,400 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, ETL Listed, Title 24 Compliant |
| CRI: | >80 |
| Dimensions: | 47.70" x 11.90" x 1.40" |
| Width: | 11.90" |
| Length: | 47.70" |
| Height: | 1.40" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
ILP's VPAN Select 1x4 LED back-lit flat panel light fixture offers dimmable lighting with smooth, uniform illumination. It features a robust die-formed housing, a high-transmission PMMA frosted lens, and multiple mounting options, including grid, flange, surface, and suspended. The fixture has selectable lumen output ranging from 2,600 to 8,000 lumens and selectable CCT options of 3500K, 4000K, and 5000K. With a long lifespan (L70 >100,000 hours), 0-10V dimming, and universal voltage compatibility, it is ideal for a wide range of lighting applications.
Features:
• Low Glare Smooth Uniform Illumination Back-Lit Panel
• Robust Die-Formed Housing with White Post-Paint Finish
• High Transmission PMMA Frosted lens

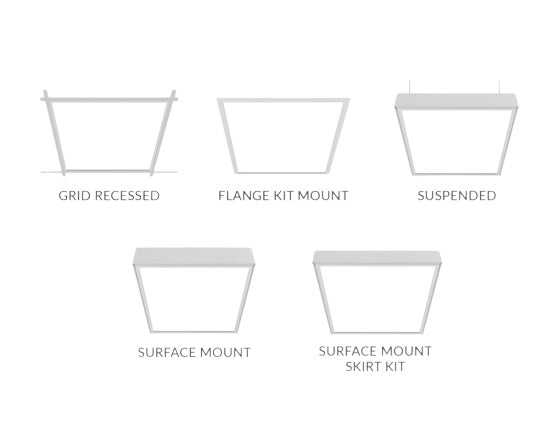

• Grid, Flange, Surface & Suspended Mounting Options
• 1x4, 2x2 & 2x4 Sizes
• Field Selectable or Factory Set Lumen Output - 2,600 to 8,000 Delivered Lumen Range
• Field Selectable or Factory Set CCT - 3500K, 4000K & 5000K CCT
• >80 Color Rendering Index (CRI)
• Bi-Level & Line Voltage Dimming Options
• Calculated L70 >100,000hrs
• 0‒10V Dimmable Driver (100%‒10%)
• 120‒277V Universal Voltage
• Type IC Rated for Insulation Contact
• 5 Year Warranty
• ETL Listed for Damp Locations
• DesignLights Consortium Qualified Luminaire
• Optional NSF-certified models are listed per NSF/ANSI Standard 2 – Light Fixture for Splash Zone and Non Food Zone
Applications:
• Education
• Healthcare
• Commercial Office
• Storage Facility
• Retail
• Grocery Store
• Residential
• Commercial Kitchen
• Food Prep
