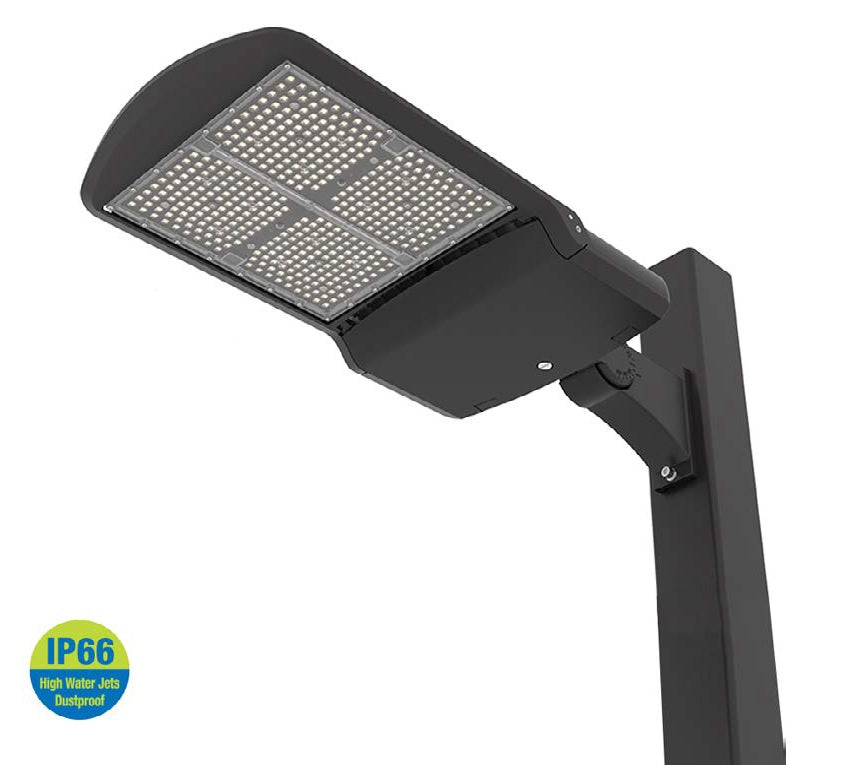

ILP Viewpoint VAM DLC Premium Listed Medium Area Light Fixture Dimmable Replaces up to 1000W MH
ILP Viewpoint VAM DLC Premium Listed Medium Area Light Fixture Dimmable Replaces up to 1000W MH
-
Specsheet:
Specifications
Specifications
| Part Number# | VAM |
|---|---|
| Type of Area: | Large Retail & Open Areas, Pole / Street / Parking Lot, Hospitals, Education, Road & Street |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 21,000 - 42,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, 750W HID Equivalent, 1000W HID Equivalent, Dimmable, DLC Premium, ETL Listed, IP65 / IP66 / IP67, Title 24 Compliant |
| CRI: | >70 |
| Dimensions: | See Spec Sheet |
| Width: | 14" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This Viewpoint Series Medium Area Light offers valuable lighting with low-cost design and high energy savings suitable for commercial and industrial lighting. It delivers 21,000 to 42,000 Lumens at 150W to 288W replacing up to 1000W HID fixtures. This fixture is DLC Premium Certified with over 100,000-hour life and backup by a 5-year warranty. See more lumen packages available for Medium Area Lights!
Features:
• Low profile die-cast aluminum housing
• Bronze polyester powder coat finish
• Factory Rotable Type 3, 4, 5 optical distributions
• Factory select finishes and custom colors available
• Adjustable Slip Fitter, Wall or Pole Mounting for Square or Round 4"-5" Poles
• 4000K & 5000K CCTs
• Toolless hinged drop down driver access
• 120–277V Universal Voltage or 347V–480V High Voltage
• PIR Occupancy, Photocell, & Bi-Level Dimming Sensors Available
• Wireless control integrated luminaire via 7-Pin Receptacle
• 3-Pin & 7-Pin ANSI C136.41 Control Receptacle Options
• 6kV Surge protection (std.)
• 3' 600V power cord(s) provided standard with
0-10V dimming (10-100%)
• Calculated L80 >100,000 hrs @ 25°C per TM-21-11
• >70 Color Rendering Index (CRI)
• IP66 Rated Luminaire
• 5 Year Warranty
• ETL Listed for Wet Locations
