ILP Value Select VST DLC Premium LED Lumen and Color Selectable Volumetric Troffer Light Fixture Dimmable
ILP Value Select VST DLC Premium LED Lumen and Color Selectable Volumetric Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | VST |
|---|---|
| Type of Area: | Gym & Sports, Schools, Hospitals, Commercial Offices, Education, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,594 - 7,379 |
| Wattage: | 55 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, ETL Listed, Title 24 Compliant |
| CRI: | >80 |
| Dimensions: | See Product Options |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

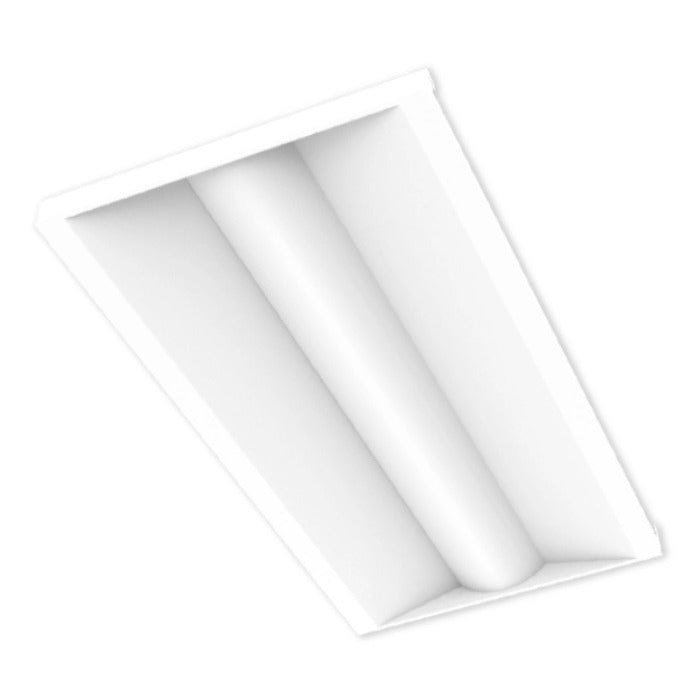

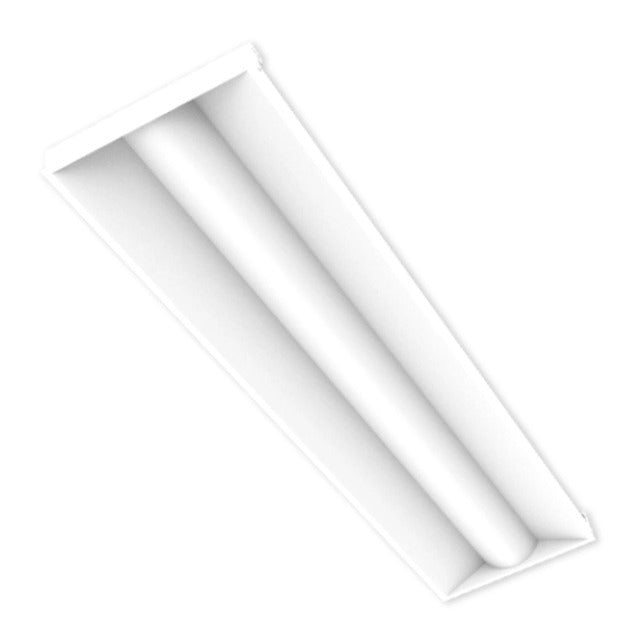

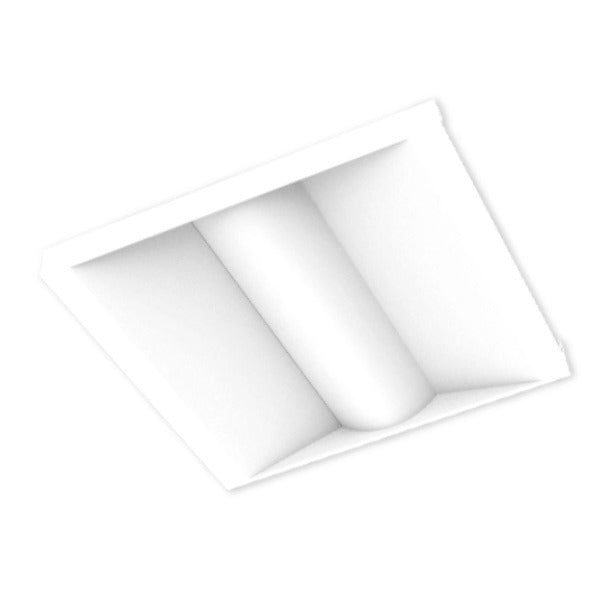

ILP's Value Select VST LED volumetric troffer light fixture is designed for applications requiring shallow plenum spaces. Available in 1x4, 2x2, and 2x4 sizes, it offers selectable lumen output ranging from 2,600 to 7,400 lumens and selectable color temperatures of 3500K, 4000K, and 5000K, making it adaptable to various environments. With a high efficacy of up to 150 lm/W and a matte white finish for uniform illumination, the fixture supports grid, flange, and surface mounting options. Featuring integrated wireless control options, 0-10V dimming, and a robust design for long life.
Features:
• Highly Versatile Volumetric Selectable Troffer
• 2.1” Depth for Shallow Plenum Applications
• Matte White Post Paint Finish for Uniform Indirect Illumination
• Shallow Depth Design for Low Plenum Applications
• Grid, Flange, & Surface Mounting Options
• 1×4, 2x2, and 2×4 Sizes
• Field Selectable or Factory Set Lumen Output - 2,600 to 7,400 Lumens Delivered Lumen Range
• Field Selectable or Factory Set CCT - 3500K, 4000K, & 5000K CCT
• Integrated Wireless Controls Options
• High Efficacy―Up to 150 lm/W
• >80 Color Rendering Index (CRI)
• 0-10V Dimmable Driver (100%-10%)
• 120‒277V Universal Voltage
• Bi-Level & 1% Dimming Driver Options
• Calculated L70 >100,000hrs
• Ambient Temperature Range (-4F to 104F)
• 5 Year Warranty (std); 10 Year Warranty Optional
• ETL Listed
• DesignLights Consortium® Premium Qualified Luminaire
Applications:
• Education
• Healthcare
• Commercial Office
• Storage Facility
• Retail
• Grocery Store
