ILP ULB LED Universal Light Bar Kit Dimmable
ILP ULB LED Universal Light Bar Kit Dimmable
Specifications
Specifications
| Part Number# | ULB |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Stairwell, Hospitals, Education, Retail, Healthcare / Disinfection |
| Color Temp: | 4000K - Neutral White |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,000 - 4,000 |
| Wattage: | 39 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 10 Year Warranty, Dimmable, ETL Listed, FCC Compliant |
| CRI: | 80 |
| Width: | 0.81" |
| Length: | 21" - 44.37" |
| Height: | 0.75" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.11 - 0.24 lbs |
| Manufacturer: | ILP |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:

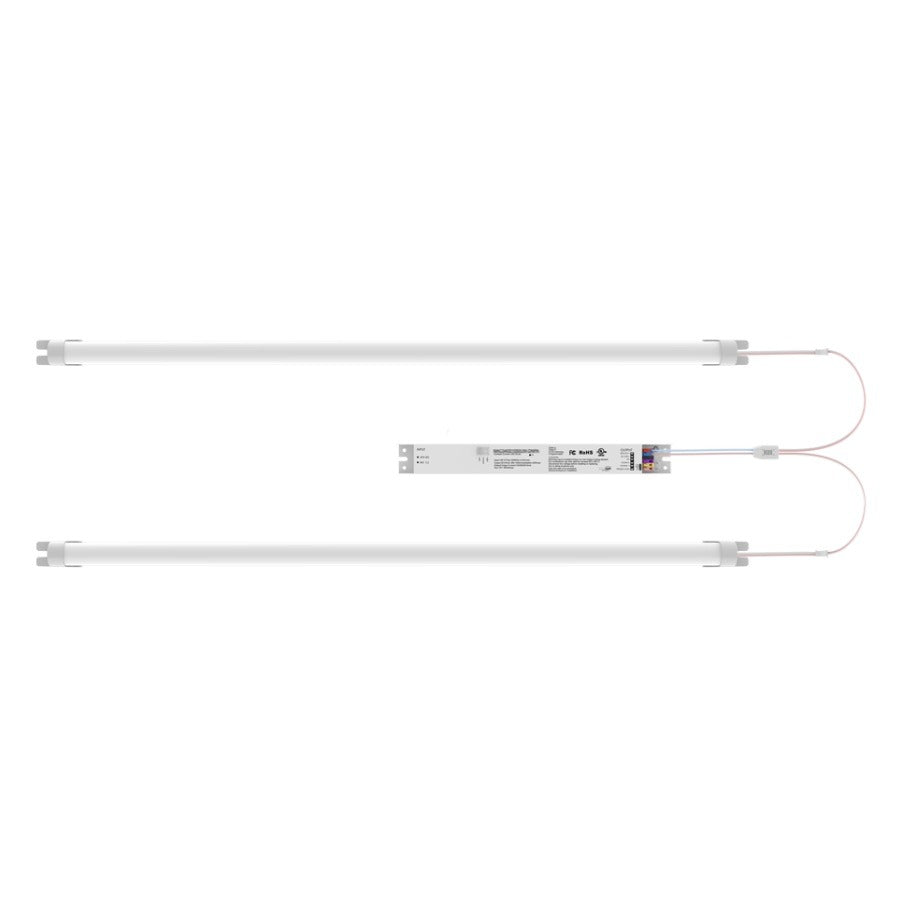

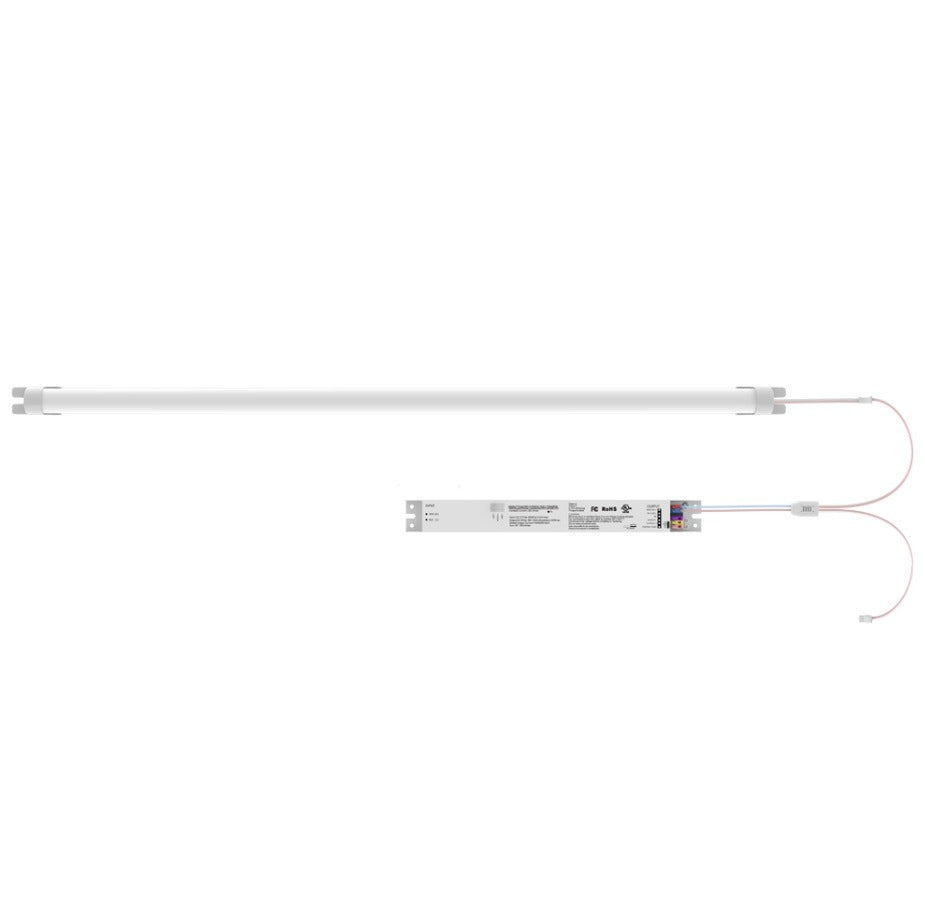

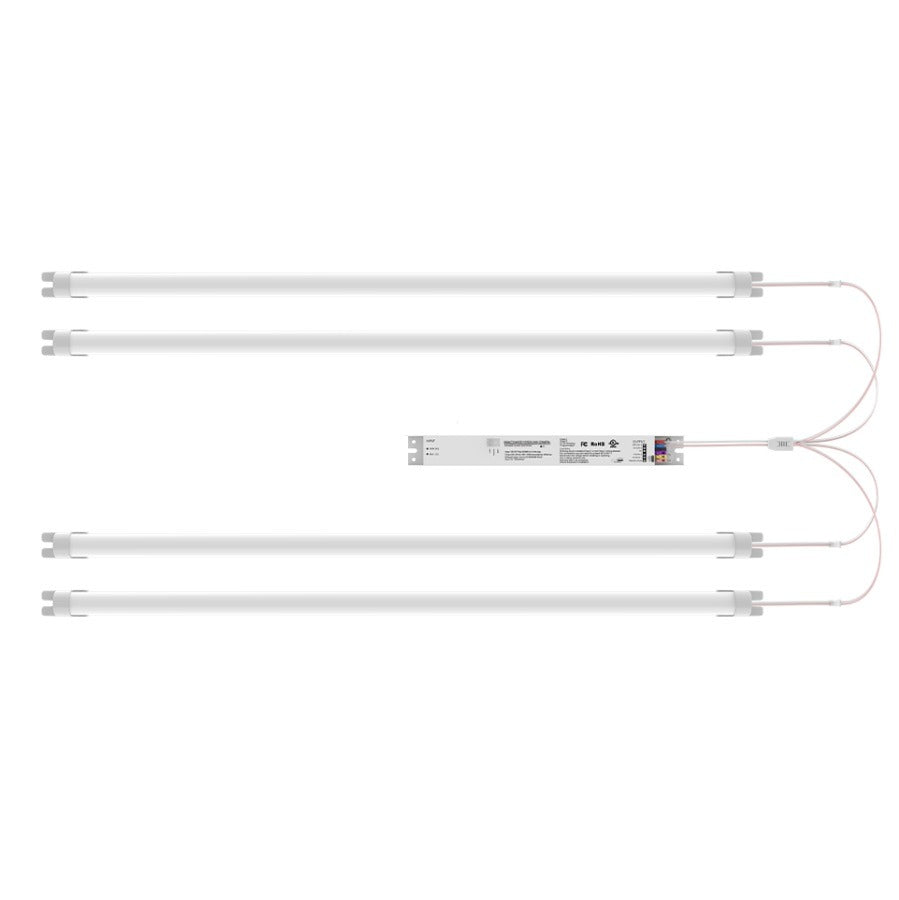

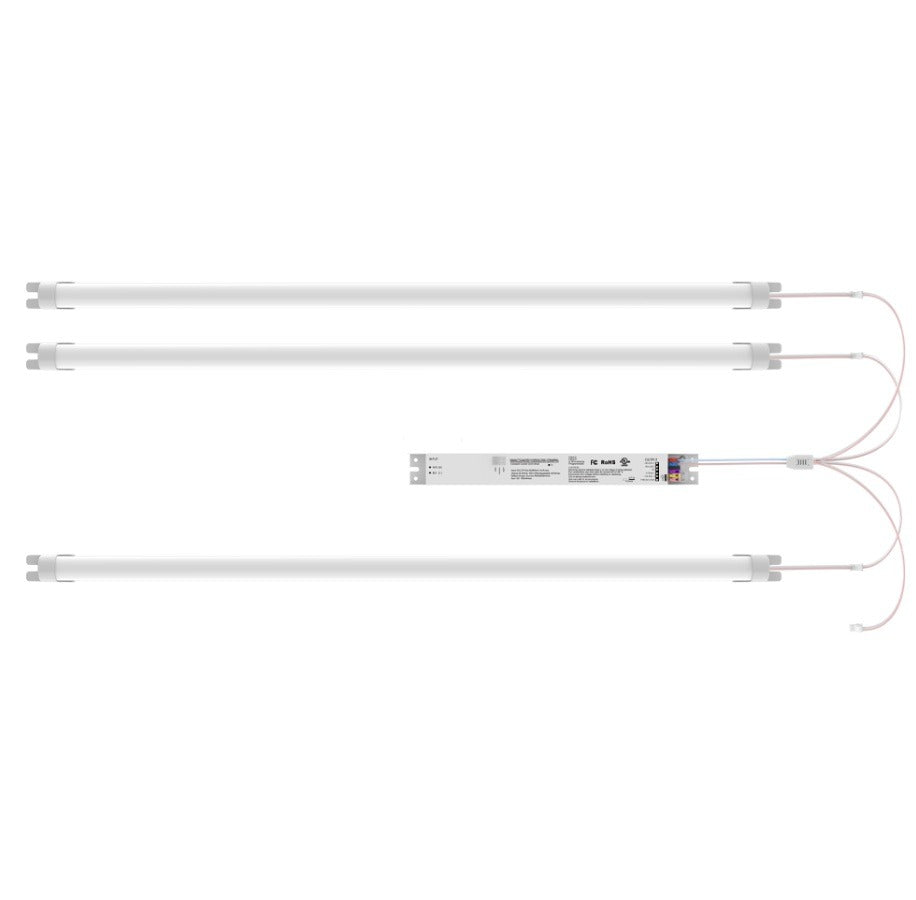

ILP's ULB LED Universal Light Bar Kit is available in 1- to 4-bar configurations with lengths of 2’, 3’, and 4’, providing flexible lighting solutions. It delivers 1,800 to 6,500 lumens with field-lumen-selectable drivers for customizable performance. Featuring standard 80 CRI and 0-10V dimming, this kit ensures high-quality illumination. With a 100,000-hour lifespan and a 5-year warranty, it offers long-lasting reliability for a variety of applications.
Features:
• The Universal Light Bar Kit is designed for cost-effective and energy-efficient LED linear retrofit applications. It can be used to seamlessly retrofit most existing fluorescent T8, T12, and T5 lamp fixtures without the need to reuse the existing sockets or lamp ballasts.
• The Universal Light Bar Kit is lightweight and built for durability, featuring a plastic housing and a frosted polycarbonate lens.
• ULB is available in 1 to 4 light bar kit options with 2’, 3’, and 4’ lengths; lumen outputs range from 1800lm to 6500lm with field lumen selectable drivers. Standard 80CRI, 0-10V dimming ( dims to 10%) and additional control system compatibility options available.
• Magnetic backing aids in securing and aligning light bars on existing housing. Self-tapping Tek screws secure drivers and bars to the surface. Quick connectors and included wiring harnesses enable fast and seamless installation.
• High-quality LED and energy-efficient driver provide supreme service life. ULB is rated to deliver L70 performance >100,00hrs. Performance levels exceed 160 LPW.
• Rated for ambient temperature between -4°F to 122°F (-20°C to 50°C). Suitable for enclosed and damp applications.
• Standard 5-year warranty/ Optional 10-year warranty available.
