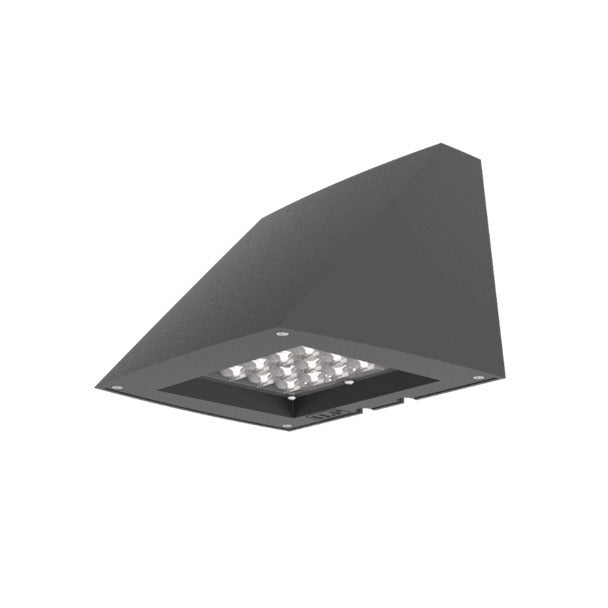

ILP SWS Skyline Series Small Wedge-Shape Wall Pack Light Fixture
ILP SWS Skyline Series Small Wedge-Shape Wall Pack Light Fixture
Specifications
Specifications
| Part Number# | SWS |
|---|---|
| Type of Area: | Apartment Buildings, Industrial & Warehouse, Large Retail & Open Areas, Schools, Wall Mount & Building Exteriors, Commercial Offices, Factory / Industrial, Retail |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 932 - 2,970 |
| Wattage: | 21 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dark Sky Compliant, Dimmable, DLC Premium, ETL Listed, IP66, LM79 / LM80, ROHS, Title 24 Compliant |
| CRI: | >80 |
| Dimensions: | 9.1" x 8.0" x 6.7" |
| Width: | 8.0" |
| Length: | 9.1" |
| Height: | 6.7" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ILP's Skyline Small Wall Pack is designed for performance, durability, and ease of installation. Featuring an integrated battery backup and up to 150 lumens per watt, it delivers reliable illumination even during power outages. Its IP66-rated die-cast aluminum housing and multiple optical distributions ensure precision lighting and long-term resilience in outdoor environments. Ideal for building entrances, walkways, and multi-use facilities, the fixture supports wireless controls, PIR sensors, and bi-level dimming, offering a flexible and energy-efficient lighting solution.
Features:
• Delivers uniform and precise lighting with five optical distributions for maximum coverage with optional diffuse lens for maximum visual comfort
• Delivers 1,000 to 3,000 lumens at up to 150 LPW for a scalable lighting solution that fits any application.
• Pairs with the matching Skyline Area Light for a cohesive site lighting solution, ensuring a uniform look across any project.
• Patent-pending quick-mount bracket enables handsfree wiring and simplifies installation on standard junction boxes or vertical surfaces.
• Ensures long-lasting performance with an IP66-rated die-cast aluminum housing and UV-stabilized optics.
• Offers advanced control options with wireless integration, PIR occupancy sensors, and bi-level dimming capabilities.
Applications:
• Exterior Wall Lighting
• Building Entrances
• Pedestrian Walkways
• Multi-use Facilities
• Industrial Facilities
• Parking Lots
• Storage Facilities
• Education
• Multi-Family
• Retail
• Office
