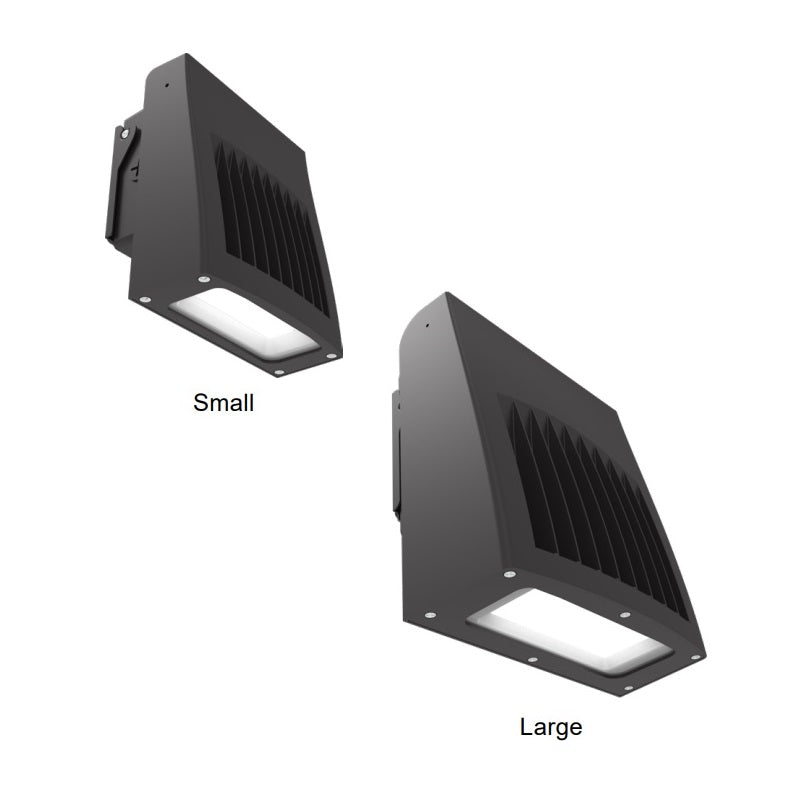

ILP SWP Series LED Color Selectable Slim Low-Profile Wall Pack Light Fixture Dimmable Replaces up to 320W MH
ILP SWP Series LED Color Selectable Slim Low-Profile Wall Pack Light Fixture Dimmable Replaces up to 320W MH
Specifications
Specifications
| Part Number# | SWP |
|---|---|
| Type of Area: | Apartment Buildings, Industrial & Warehouse, Pole / Street / Parking Lot, Schools, Wall Mount & Building Exteriors, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,465 - 10,581 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 100W HID Equivalent, 150W HID Equivalent, 175W HID Equivalent, 250W HID Equivalent, 320W HID Equivalent, Dimmable, DLC Premium, ETL Listed, IP65 / IP66 / IP67 |
| CRI: | >70 |
| Dimensions: | See Spec Sheet |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ILP's SWP Series Slim Wall Pack is a versatile and energy-efficient solution designed to replace up to 320W MH fixtures. Constructed with a low-profile die-cast aluminum housing and a durable bronze polyester powder coat finish, this fixture offers both aesthetic appeal and robust durability. Custom and factory-select colors provide further customization options. An optional Field Adjustable Output device (FAO) allows individual lumen output control, providing flexibility in lighting design. With a Color Rendering Index (CRI) of >70, a calculated L70 of >100,000 hours, and an IP65 rating, this luminaire ensures long-lasting, high-quality illumination. The 5-year warranty, ETL listing for wet locations, and DesignLights Consortium® Premium qualification further underscore its reliability and efficiency.
Features:
• Low-profile die-cast aluminum housing
• Bronze polyester powder coat finish (std.)
• Custom and factory-select colors available
• Isolated optical compartment with tempered glass lens and silicone gaskets
• 90° adjustable Type IV distribution or Optional IDA fixed model
• Quick mount bracket standard for easy surface mount installation
• Three ½" coin plugs on sides for conduit or electronic photocell
• 120–277V Universal Voltage or 347V–480V High Voltage
• 0–10V Dimmable Driver (std.)
• Deep box 10W CEC Title 20 compliant battery backup & cold weather battery
• Optional Field Adjustable Output device (FAO) allows individual luminaire
lumen output control
• 3000K, 4000K & 5000K CCT Selectable via Integral selector
• >70 Color Rendering Index (CRI)
• Calculated L70 >100,000 hrs @ 25°C per TM-21-11
• IP65 Rated Luminaire
• 5-Year Warranty
• ETL Listed for Wet Locations
• DesignLights Consortium® Premium Qualified Luminaire
