ILP Skyline SAM DLC Premium Listed Medium Area Light Fixture Dimmable Replaces up to 1000W MH
ILP Skyline SAM DLC Premium Listed Medium Area Light Fixture Dimmable Replaces up to 1000W MH
Specifications
Specifications
| Part Number# | SAM |
|---|---|
| Type of Area: | Large Retail & Open Areas, Pole / Street / Parking Lot, Hospitals, Education, Road & Street |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 24,000 | 30,000 | 36,000 | 42,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, 750W HID Equivalent, 1000W HID Equivalent, Dark Sky Compliant, Dimmable, DLC Premium, ETL Listed, IP65 / IP66 / IP67, Title 24 Compliant |
| CRI: | >70 |
| Dimensions: | See Spec Sheet |
| Width: | 17.2" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 22 lbs |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

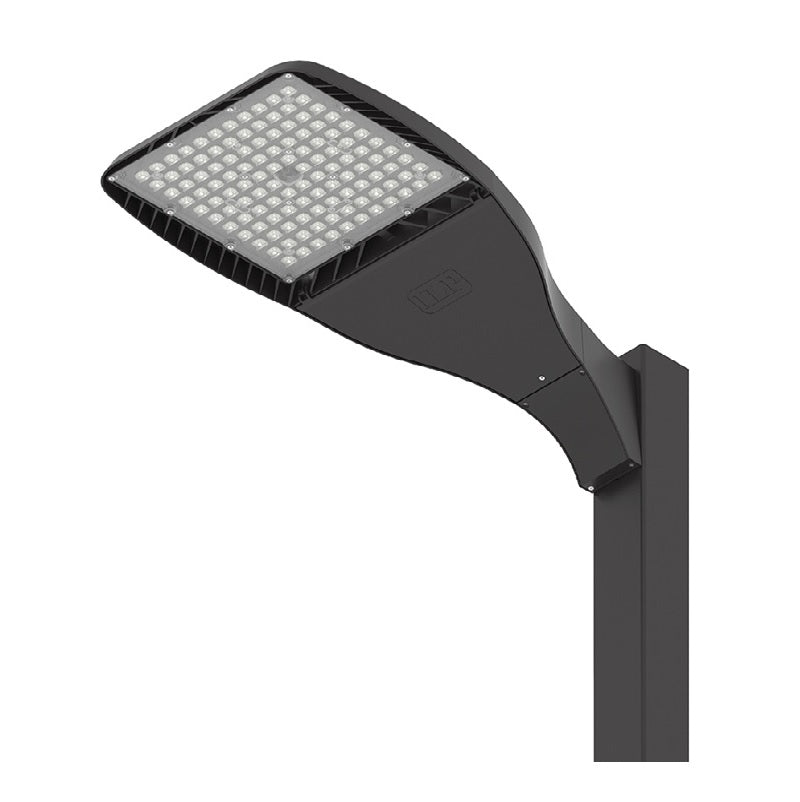

This Skyline Series Medium Area Light is great for commercial outdoor lighting with its modern aesthetic design and reliable performance. It delivers up to 42,000 Lumens using only 272 Watts replacing 1000W HID fixtures. This fixture is DLC Premium Certified with over 100,000-hour life and backup by a 5-year warranty.
Features:
• Specification Grade die-cast aluminum housing
• Bronze polyester powder coat finish (standard)
• Custom and factory-select colors available
• 5 Optical Distributions with Highest Uniformity in their product class
• Factory Rotatable Type 2, 3, 4, 5 Square, & Automotive Front Row Optics
• Optional Spill Light Control Integral Shield (HSS)
• Universal Quick Pole Mount Allows for 1 man installation on existing poles with no drilling required
• 9 Different Optional Mounting Methods (3G Rated)
• Single Fastener hinged door driver access
• 120–277V Universal Voltage or 347–480V High Voltage
• 0–10V Dimmable Driver (std.)
• PIR Occupancy, Photocell, & Bi-Level Dimming Sensors Available
• 3-Pin & 7-Pin ANSI C136.41 Control Receptacle Options
• Wireless control integrated luminaire
• 3000K, 4000K & 5000K CCT
• >70 Color Rendering Index (CRI)
• Calculated L80 >100,000 hrs @ 25°C per TM-21-11
• IP66 Rated Luminaire
• Dark Sky Compliant
• 5 Year Warranty; 10 Year Optional Warranty
• ETL Listed for Wet Locations
