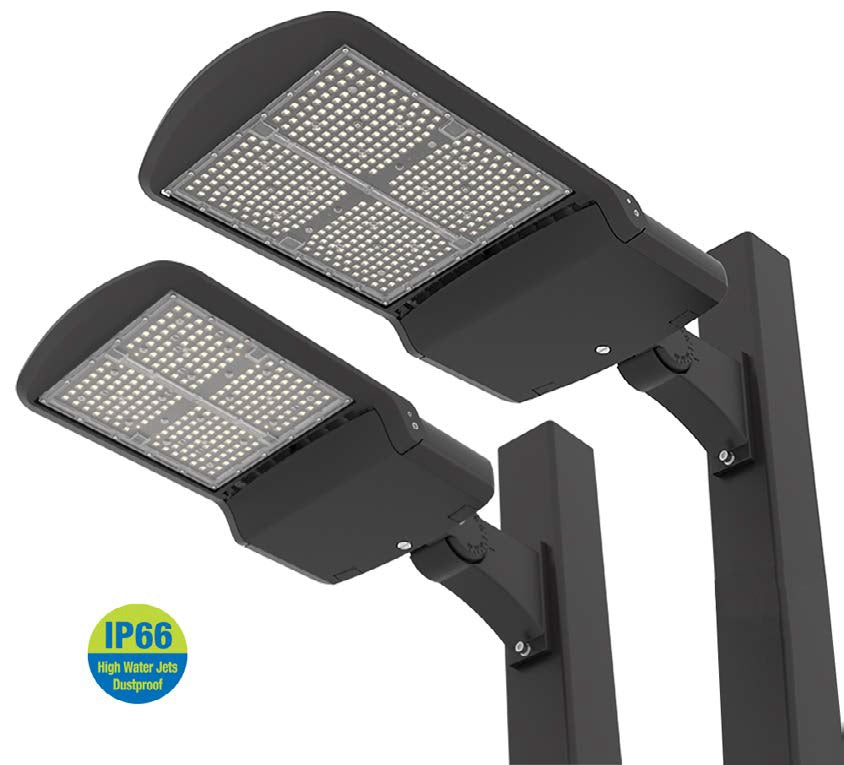

ILP PFC Series Viewpoint Head and Pole Fixture Combo Lumen Selectable with Adjustable Pole Mount Bracket
ILP PFC Series Viewpoint Head and Pole Fixture Combo Lumen Selectable with Adjustable Pole Mount Bracket
Specifications
Specifications
| Part Number# | PFC |
|---|---|
| Type of Area: | Large Retail & Open Areas, Pole / Street / Parking Lot, Road & Street |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 14,000 - 42,000 |
| Ballast Start Type: | Instant Start |
| Certifications | IP65 / IP66 / IP67 |
| Dimensions: | See Spec Sheets |
| Dimmable: | Yes |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
Details
Details
ILP PFC Series Viewpoint Head and Pole Fixture Combo Lumen Selectable with Adjustable Pole Mount Bracket
*Requires 20 Piece Pole Order Limit for Quickship Qualification
Features:
• High Performance & Coverage T3 & T4 Optical Distributions
• High Efficacy - Up to 162 LPW
• BLE PIR Occupancy, Photocell and Bi-Level Dimming Sensor Options
• Lumen Selectable - 3 Positions per SKU
• 4000K-5000K CCT
• -40°F-122°F Ambient Temperature Range
• Calculated L70 >100,000 Hours
• Vented IP66 Rated Housing (Whole Luminaire)
• 20' & 25' Heights
• ILP Bronze Finish (Guaranteed to Match Fixture Color)
• Poles are Pre-Drilled for Triple Mounting with Plugs Provided
• Square Straight Steel w/ Base Cover Included
• 4" - 11" Gauge Wall Thickness
• 8"-9" Bolt Circles Using Four 3/4" diameter anchor bolts (Anchor Bolts Available to Ship Before Product)
