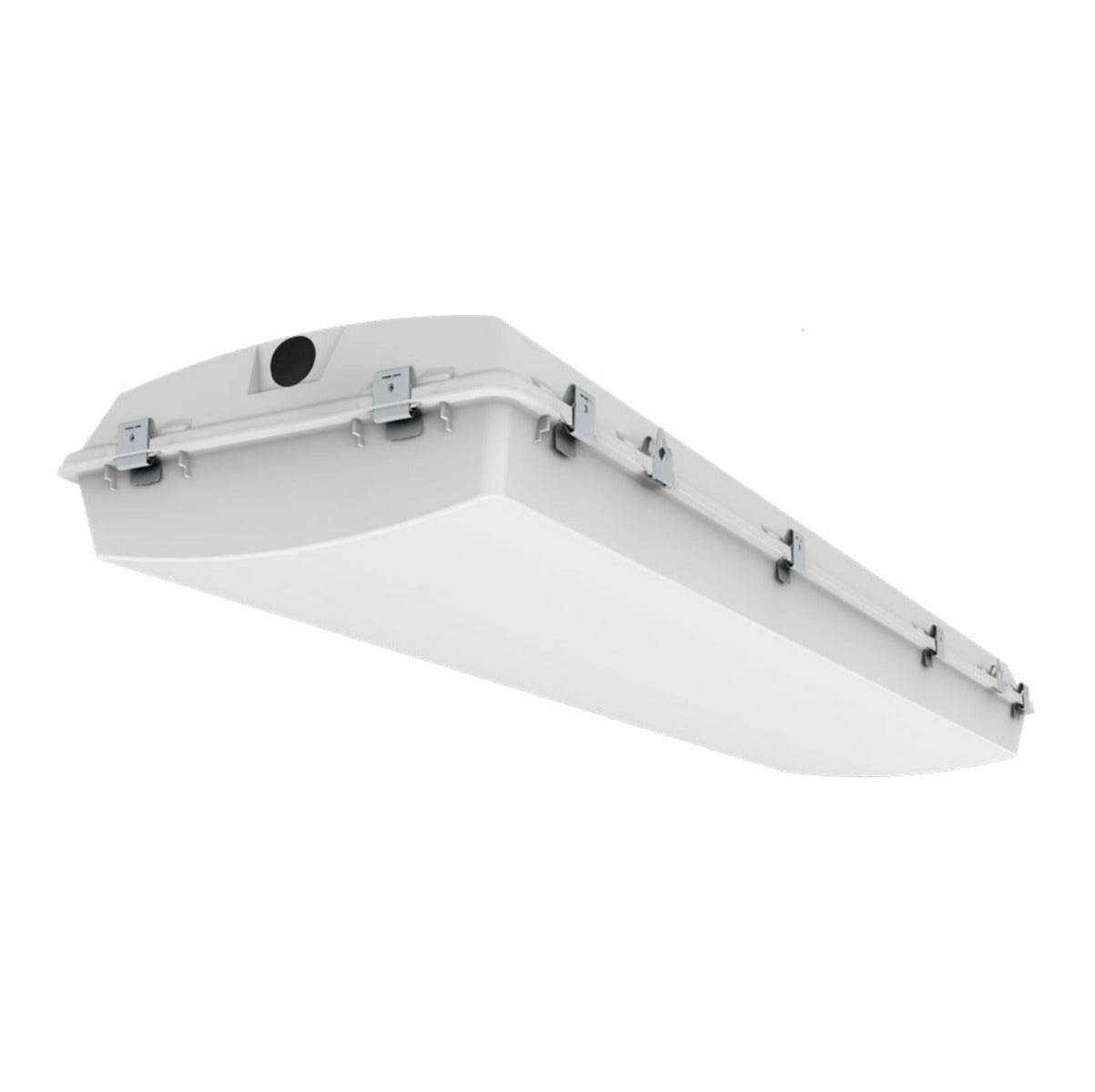

ILP Lighting HZB4-36L DLC Premium Listed 241 Watt 4FT LED Hazardous Location Vapor Tight Highbay Fixture Dimmable with Stainless Steel Latches Replaces 750W MH
ILP Lighting HZB4-36L DLC Premium Listed 241 Watt 4FT LED Hazardous Location Vapor Tight Highbay Fixture Dimmable with Stainless Steel Latches Replaces 750W MH
Specifications
Specifications
| Part Number# | HZB4-36L |
|---|---|
| Type of Area: | Coolers & Freezers, Hazardous Location, Industrial & Warehouse, Manufacturing Plants, Factory / Industrial, Hazardous & Demanding |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 32,334 - 39,110 |
| Wattage: | 240 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 750W HID Equivalent, Dimmable, DLC Premium, ETL Listed, IP65 / IP66 / IP67, Made In America Compliant, NSF |
| CRI: | 80 |
| Dimensions: | 51.9" x 14.5" x 5.8" |
| Width: | 14.5" |
| Length: | 51.9" |
| Height: | 5.8" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
This HZB Vapor Tight High Bay Fixture is a premium lighting solution for hazardous locations (Class 1, Div 2, Groups A,B,C,D). The 4FT fixture delivers over 36,000 lumens using 241 Watts replacing 750W Metal Halide or 10T8/8T5HO traditional fluorescent lamps. Select from mounting options available: Surface, Pendant, or Suspended Mounting. Durable and long-lasting with over 100,000 hours fixture life backup by 5-year warranty.
Features:
• Robust Hazardous Location Wide Body Vapor Tight High Bay
• Class 1 Div 2 Groups A, B, C & D
• Class 1 Zone 2 Groups IIA, IIB+ H2, IIC
• UL844 Hazardous
• Industry Leading Max Ambient up to 140ºF
- Ambient Range -40ºF to 140ºF (Select Models)
• Extremely High Efficacy up to 168 lm/W
• 2ft & 4ft Fixture Lengths
• Lumen Packages Ranging 12,000–40,000
• Wide & Best in Class Narrow Distribution Optics
• Surface, Pendant, or Suspended Mounting Options
• IK10 Impact Rated Lens
• Fiberglass Body Attributes
- T4 Housing Ignition Temperature Rated
- F1 Weatherability Rating, 5VA Flame Rating & 1500 PSI High Pressure Hosedown
- IP65, IP66, IP67, & IP69 (2ft Only), NEMA4X, NSF
• 3000K–5000K CCT
• >80 Color Rendering Index (CRI)
• Calculated L70 >100,000 Hours
• 0-10V Dimmable Driver (100%-10%)
• 5 Year Warranty
• ETL Listed for Wet Locations
• DesignLights Consortium® Premium Qualified Luminaire
Applications:
• Chemical Processing Facilities
• Ethanol & Petroleum Refineries
• Industrial & Manufacturing Facilities
• Power Generation Facilities
• Wastewater & Water Treatment Facilities
• Food & Beverage Preparation
• Coolers & Freezers
