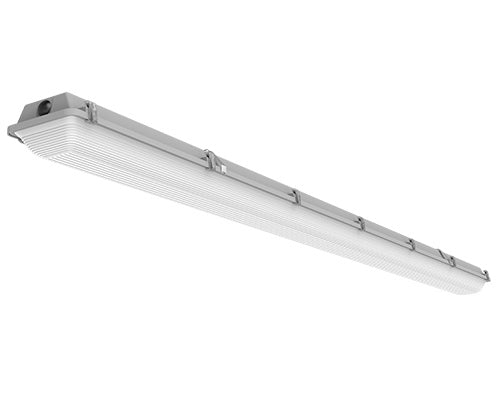

ILP HZV8-U-RAFL DLC Premium 8FT Hazardous Location Linear Vapor Tight Fixture Dimmable with Ribbed Acrylic Frosted Lens
ILP HZV8-U-RAFL DLC Premium 8FT Hazardous Location Linear Vapor Tight Fixture Dimmable with Ribbed Acrylic Frosted Lens
Specifications
Specifications
| Part Number# | HZV8-U-RAFL |
|---|---|
| Type of Area: | Hazardous Location, Industrial & Warehouse, Manufacturing Plants, Factory / Industrial, Hazardous & Demanding |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 5,747 - 25,151 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, ETL Listed, IP65 / IP66 / IP67, NEMA, NSF, Title 24 Compliant |
| CRI: | 80+ |
| Dimensions: | 100" x 7.2" x 4.3" |
| Width: | 7.2" |
| Length: | 100" |
| Height: | 4.3" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
| Fixture Length: | 8 Feet / 96 Inches |
Details
Details
ShineRetrofits Input:
This HZV Vapor Tight High Bay Fixture is a premium lighting with wide distribution suitable for hazardous locations (Class 1, Div 2, Groups A,B,C,D). The 8FT fixture delivers 5,700-25,000 lumens using 47-162 Watts replacing traditional fluorescent lamps. Select from mounting options available: Surface, Pendant, or Suspended Mounting. Fixture comes with Standard Ribbed Acrylic Frosted Lens with additional lens options to choose from. Durable and long-lasting with over 100,000 hours fixture life backup by 5-year warranty.
Features:
• Robust Hazardous Location Narrow Body Linear Vapor Tight
• Class 1 Div 2 Groups A, B, C & D
• Class 1 Zone 2 Groups IIA, IIB+ H2, IIC
• UL844 Hazardous
• Industry Leading Max Ambient up to 131ºF
- Ambient Range -40ºF to 131ºF (Select Models)
• Extremely High Efficacy up to 156 lm/W
• 2ft, 4ft & 8ft Fixture Lengths
• Lumen Packages Ranging 2,000–24,000
• Surface, Pendant, Wall & Suspended Mounting Options
• Multiple Impact Resistant Lens Options
• Fiberglass Body Attributes:
- T4 Housing Ignition Temperature Rated
- F1 Weatherability Rating, 5VA Flame Rating & 1500 PSI High Pressure Hosedown
- IP65, IP66 & IP67, NEMA4X, NSF
• 3000K–5000K CCT
• >80 Color Rendering Index (CRI)
• Calculated L70 >100,000 Hours
• 0-10V Dimmable Driver (100%–10%)
• 5 Year Warranty
• ETL Listed for Wet Location
• DesignLights Consortium® Premium Qualified Luminaire
Applications:
• Chemical Processing Facilities
• Ethanol & Petroleum Refineries
• Industrial & Manufacturing Facilities
• Power Generation Facilities
• Wastewater & Water Treatment Facilities
• Food & Beverage Preparation
• Coolers & Freezers
