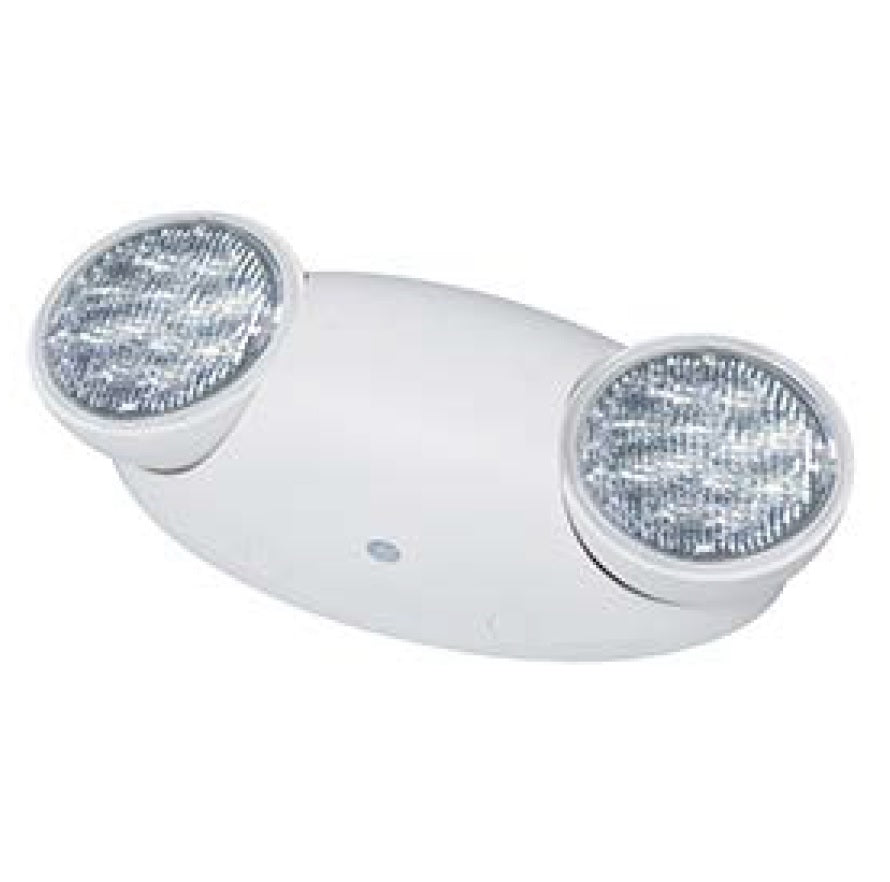

ILP EXL Series Emergency Light White Housing Fixture with Battery Backup
ILP EXL Series Emergency Light White Housing Fixture with Battery Backup
Specifications
Specifications
Part Number# | EXL1-U |
---|---|
Type of Area: | Apartment Buildings, Gym & Sports, Office & Small Retail, Schools, Hotels, Hospitals, Commercial Offices, Factory / Industrial, Retail |
Ballast Start Type: | Instant Start |
Certifications | 5 Year Warranty, CUL Listed, UL Listed |
Dimensions: | 9" x 2.75" x 4.75" |
Width: | 2.75" |
Length: | 9" |
Height: | 4.75" |
Dimmable: | No |
Product Warranty: | 5 Year |
Voltage: | Multivolt 120V-277V |
Manufacturer: | ILP |
Technology: | LED |
Details
Details
ShineRetrofits Input:
This EXL Series Emergency Light is a reliable, white-housing fixture with battery backup, designed for damp locations. It offers dual-voltage input (120V/277V) and features energy-efficient LED lamp heads, available in Standard and High Output models. Constructed with durable, UV-stabilized thermoplastic, it includes options like self-diagnostics and remote-capable versions to suit various needs. Backed by a 5-year warranty, the EXL Series ensures long-lasting performance and safety compliance with UL 924 and DOE standards.
Features:
• Dual-voltage input 120V/277V
• Optional (-SD) Self Diagnostic versions available
• Standard and High Output models feature a maintenance-free NiCad battery
• (-RC) Remote-Capable model features a maintenance-free NiMH battery
• Injection-molded, high-impact, UV-stabilized, UL94 V-0 thermoplastic construction in white
• Optional (-RC) Remote-Capable version supports up to two single or one double High-Output lighting heads
• Universal J-box pattern knock-out
• Universal mounting plate with quick-connect feature
• Fully adjustable glare-free lamp heads
• Two factory-installed LED lamp heads
• Energy-saving LED lighting heads
- Standard Output model includes two 0.6W heads
- High Output model includes two 1.7W heads
• Temp rating: 60°-86°F (20°-30°C) damp-rated
• DOE and CEC Registered
• UL 924 Listed for damp location
• 5-year warranty on all electronics and housing
• Separate 5-year pro-rated warranty on the battery
Model Numbers:
EXL1-U-WS
EXL1-U-WH
EXL1-U-WH-SD
EXL1-U-WH-RC
EXL1-U-WH-RC-SD
