ILP EDV2 Series 2-Foot LED Endeavor 2 High Bay Light Fixture Dimmable with Wide-Narrow Beam Light Distribution
ILP EDV2 Series 2-Foot LED Endeavor 2 High Bay Light Fixture Dimmable with Wide-Narrow Beam Light Distribution
Specifications
Specifications
| Part Number# | EDV2 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Retail |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 8,000 - 36,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, ETL Listed, Made In America Compliant, Title 24 Compliant |
| CRI: | >80 |
| Dimensions: | 2' |
| Length: | 2' |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:

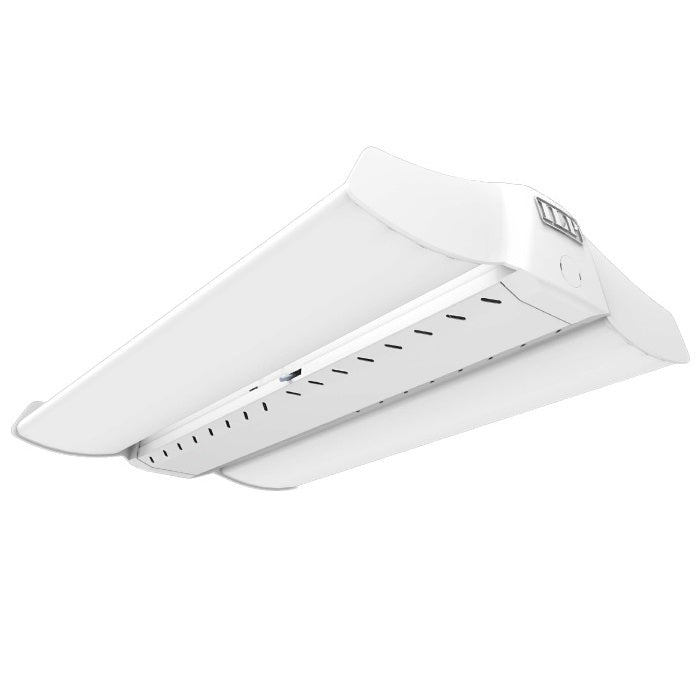

The Endeavor 2.0 LED High Bay fixture is a versatile and modern lighting solution for a variety of applications. Mainly features a sleek design, uplight for full room illumination, and wide and narrow beam lights available in 8,000 to 36,000-lumen packages. This high bay fixture is compatible with basic and advanced lighting control options for maximum performance with over 100,000 rated life. The standard warranty is 5 years with an option to extend up to 10 years.
Features:
• Sleek Curved Polycarbonate Injection Molded End Caps
• White and black finish options
• Aluminum Body with steel channel for added rigidity
• Tool-less Hinged Driver Access
• Wide & Narrow Distributions
• Impact Resistant and IP5X Rated Lens Options:
– Frosted Acrylic (FRL)
– Frosted Polycarbonate (PFL) IK10 Impact Rated
• V-Clips for dual point chain or cable hanging (standard)
• Advanced and Basic Controls Options
• 131°F Standard Ambient Temperature Range
• 149° Max High Ambient Temperature Option
• 3000K–5000K CCT
• Uplight Options to optimize full-room illumination
• 17 Size/Lumen packages: 2FT: 8L – 36L
• >80 Color Rendering Index (CRI)
• Calculated L80 >100,000 hrs
• 0-10V Dimmable Driver (100%–10%)
• 5 Year Warranty (standard); 10 Year Warranty Optional
• ETL Listed for Damp Location
Applications:
• Gymnasiums
• Manufacturing Plants
• Warehouses
• Distribution Centers
• Hangars
• Retail
• Government Facilities
• Auto Service Bays/Lanes
