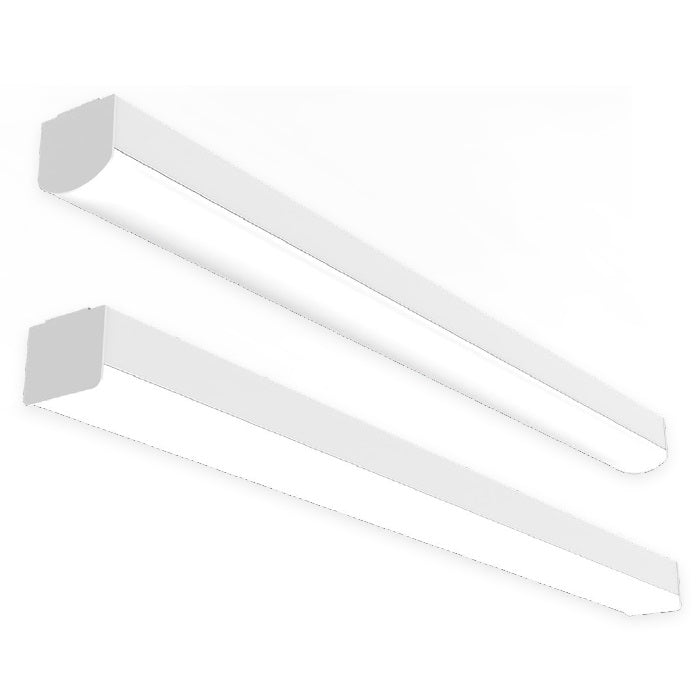

ILP DSC4 Discovery 4-Foot Series LED Linear Strip Light Fixture Dimmable
ILP DSC4 Discovery 4-Foot Series LED Linear Strip Light Fixture Dimmable
Specifications
Specifications
| Part Number# | DSC4 |
|---|---|
| Type of Area: | Office & Small Retail, Parking Garage, Commercial Offices, Education, Retail, Healthcare / Disinfection |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,000 - 10,000 |
| Wattage: | 72 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, DLC Premium, ETL Listed, Made In America Compliant |
| CRI: | >80 |
| Dimensions: | 48.2" x 3.6" x 3.5" |
| Width: | 3.6" |
| Length: | 48.2" |
| Height: | 3.5" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | ILP |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
ILP DSC4 Discovery 4-Foot Series LED Linear Strip Light Fixture is a highly configurable BAA Spec Grade luminaire offering a sleek design and versatile features. With options like decorative No Knockout end caps, precision-designed low UGR curved and flat frosted acrylic lenses, and a choice between narrow or wide distribution optics, this fixture ensures a smooth and uninterrupted design. The integrated wireless grouping control options, multiple mounting choices, and asymmetrical or symmetrical white reflector options enhance its adaptability. Lumen packages range from 2,000L to 10,000L, with options for standard and high efficacy. Offering a variety of color temperature options, high CRI, and multiple driver choices, including 0-10V dimmable, this fixture is suitable for diverse applications.
Features:
• Highly Configurable BAA Spec Grade Strip Luminaire
• Sleek injection-molded endcap design
- Decorative No Knockout end cap option
• No visible fasteners providing a smooth uninterrupted design
• Precision Designed Low UGR Curved & Flat Frosted Acrylic Lens options
• High Performance Narrow or Wide Distribution Optics
• White (Std.) and optional Black, Silver, or Custom Finishes
• Sleek Integrated Wireless Grouping Control Options
• Surface, Cable, Suspension, Pendant, & Wall Mounting Options
• Asymmetrical & Symmetrical White Reflector Options
• Lumen Packages Ranging 2,000L – 10,000L
• Standard Efficacy (SE) and High Efficacy (HE) Lumen Packages
• 3000K, 3500K, 4000K, and 5000K CCT options available
• 80 or 90 CRI
• 120-277V & 347V 0-10V, Bi-Level & Line Voltage Driver Options
• 0-10V Dimmable Driver (100% -10%)
• L90>54,000 hrs
• -4°F to 122◦F Ambient Temperature Range
• 5 Year Warranty (std); 10 Year Warranty Optional
• ETL Listed for Dry and Damp Locations
