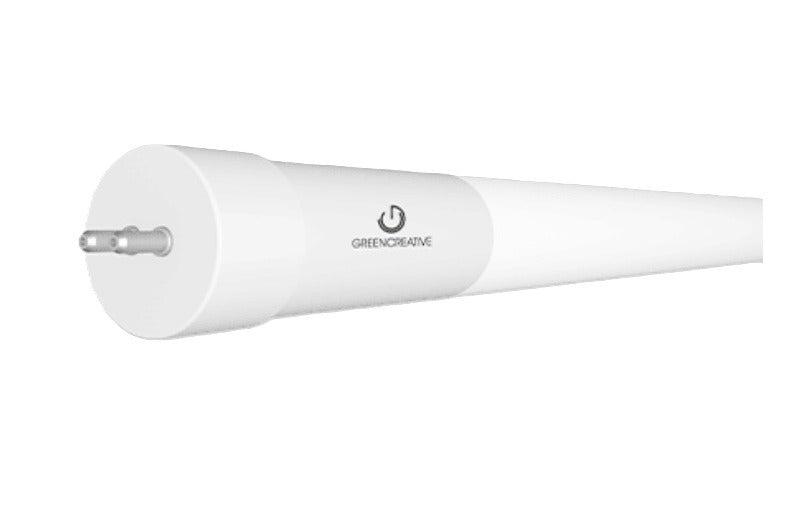

Green Creative DLC Listed 14.5T5HE/4F/BYP/R 14.5 Watt 4-Foot LED T5 Single Ended Bypass Tube Lamp Replaces 28W Fluorescent
Green Creative DLC Listed 14.5T5HE/4F/BYP/R 14.5 Watt 4-Foot LED T5 Single Ended Bypass Tube Lamp Replaces 28W Fluorescent
Specifications
Specifications
Part Number# | 14.5T5HE/4F |
---|---|
Type of Area: | Factory / Industrial, Hospitality, Healthcare / Disinfection |
Lamp Life: | 50,000+ Hours |
Lumen Output: | 1,800 - 2,000 |
Wattage: | 14 Watt |
Ballast Start Type: | Instant Start |
Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, FCC Compliant, NSF, UL Listed |
CRI: | 82 |
Dimensions: | 45.75" MOL x 0.68" Dia |
Width: | 0.68" Dia |
Length: | 45.75" MOL |
Dimmable: | Yes |
Product Warranty: | 5 Year |
Minimum Start Temperature: | -4 Deg F |
Voltage: | Multivolt 120V-277V |
Weight Each: | 0.41 lb |
Manufacturer: | Green Creative |
Technology: | LED |
Details
Details
ShineRetrofits Input:
This T5 BYP Series is a versatile and energy-efficient replacement for 14W-54W fluorescent lamps, offering up to 3200 lumens of bright light. It features single or double-ended bypass installation with a built-in universal voltage driver for easy setup. Designed for durability, it operates in enclosed fixtures, damp locations, and food-safe environments, with a rated lifetime of up to 60,000 hours. Its high efficacy, reduced glare, and symmetrical driver design make it ideal for various indoor general lighting applications.
Features:
• Single or Double ended installation
• Built-in universal voltage driver (120-277V) - BYPass installation
• High efficacy up to 138LPW
• 270° wide light emitting area
• Symmetrical driver design reduces end-to-end dark area
• Suitable for use in enclosed fixtures and damp locations
• Liquid powder-coated glass, reduces glare
• NSF (National Sanitation Foundation) certified for Food Zone (Non-Contact), Splash, and Non-Food Zones
• UL 1598C classified
• Fixture operating temperature: -4°F to 113°F (-20°C to 45°C)
• Lamp ambient temperature: -4°F to 131°F (-20°C to 55°C)
• Rated lifetime (L70) up to: 60,000hrs
• 5-year limited warranty* / 10 years available (see EXTENDED WARRANTIES table for information)
• Suitable for all indoor general lighting applications
