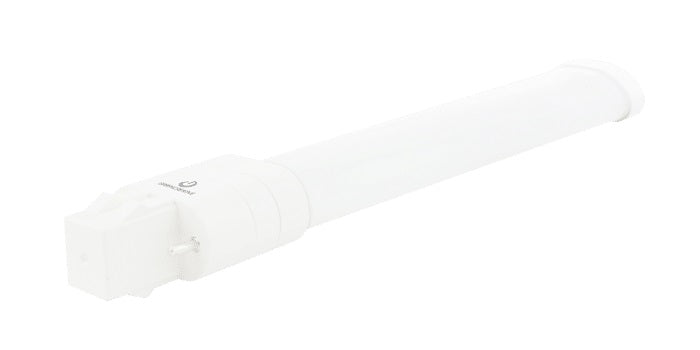

Green Creative 5.5PLSH/HYB/GX23/R 5.5 Watt LED PL EDGE Series HYBrid Lamp Replaces 13W Double Twin Tube Lamp
Green Creative 5.5PLSH/HYB/GX23/R 5.5 Watt LED PL EDGE Series HYBrid Lamp Replaces 13W Double Twin Tube Lamp
Specifications
Specifications
| Part Number# | 5.5PLSH/HYB/GX23/R |
|---|---|
| Type of Area: | Apartment Buildings, Home & Architectural, Office & Small Retail, Schools, Hotels, Hospitals, Commercial Offices, Education, Hospitality, Retail |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 580 - 620 |
| Wattage: | 5.5 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, FCC Compliant, UL Listed |
| CRI: | 82 |
| Dimensions: | 5.5" MOL x 1.37 Dia. |
| Length: | 5.5" MOL |
| Height: | 1.37 Dia. |
| Dimmable: | No |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 0.15 lbs. |
| Manufacturer: | Green Creative |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
This 5.5-watt LED PL EDGE Series Hybrid Lamp is designed to replace 13W double twin-tube lamps. It operates on 120-277V and delivers 580-620 lumens with an 82 CRI. This versatile lamp is suitable for hybrid applications and has a 5-year limited warranty, offering energy-efficient performance and long-lasting reliability.
Features:
• Built-in universal driver – Bypass installation operates directly on 120 – 277V line voltage
• Hybrid Bypass versions can also operate directly on most magnetic ballasts*
• Bypass versions replace 7W-13W CFL lamps with 2G7 & 2GX7 bases
• Hybrid Bypass versions replace 7W-13W CFL lamps with G23 & GX23 (2-pin) bases
• Exceptional efficacy up to 113 LPW
• Suitable for damp locations
• Lamp ambient temperature: -4°F to 113°F (-20°C to 45°C)
• Fixture operating temperature: -4°F to 95°F (-20°C to 35°C)
• Rated lifetime (L70): 50,000hrs
• 5-year limited warranty**/ 10 years available (see EXTENDED WARRANTIES table for information)
