GE Lighting Lumination PCL Series LED Lumen and Color Selectable Volumetric Center Lens Troffer Light Fixture Dimmable
GE Lighting Lumination PCL Series LED Lumen and Color Selectable Volumetric Center Lens Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | PCL |
|---|---|
| Type of Area: | Industrial & Warehouse, Commercial Offices, Factory / Industrial, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 3,279 - 6,497 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CSA, Dimmable, DLC Approved |
| CRI: | >80 |
| Dimensions: | 23.74" | 47.76" x 23.74" x 2.15" |
| Width: | 23.74" |
| Length: | 23.74" | 47.76" |
| Height: | 2.15" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -13 Deg F |
| Voltage: | 120V-347V |
| Weight Each: | 6.4 - 7 lbs |
| Manufacturer: | GE Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

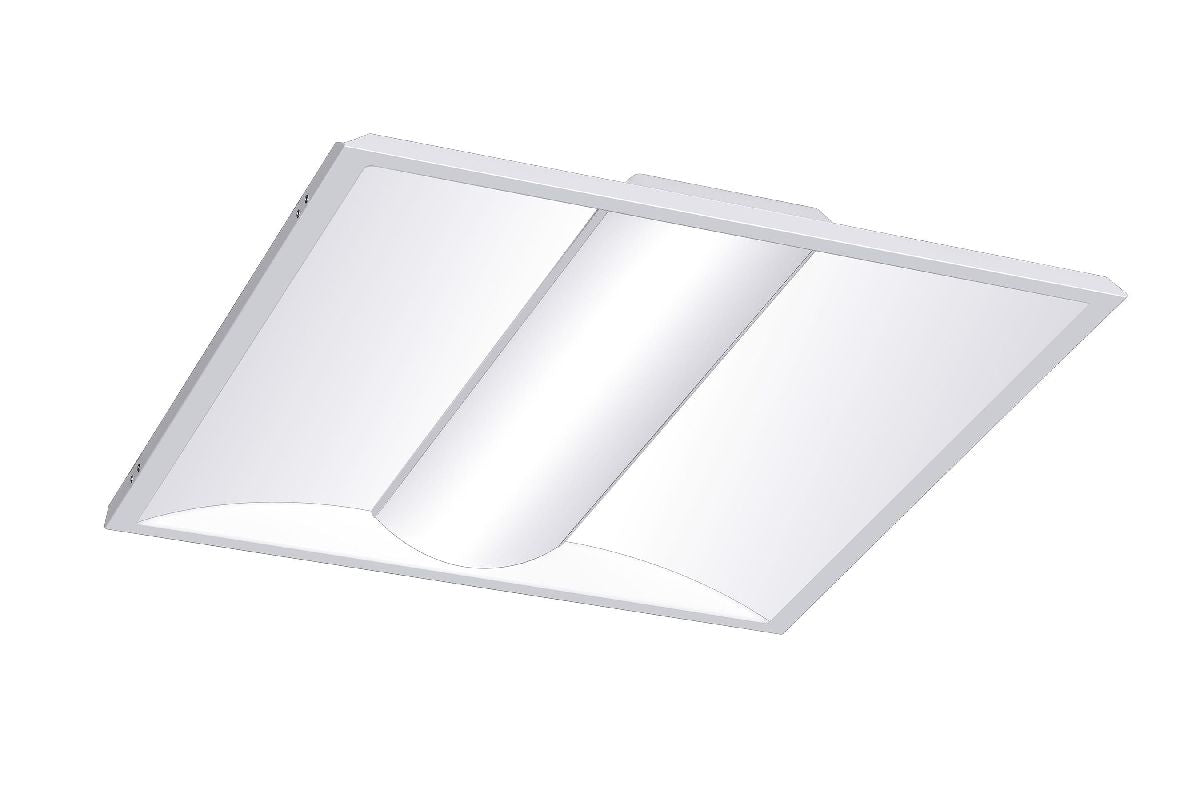

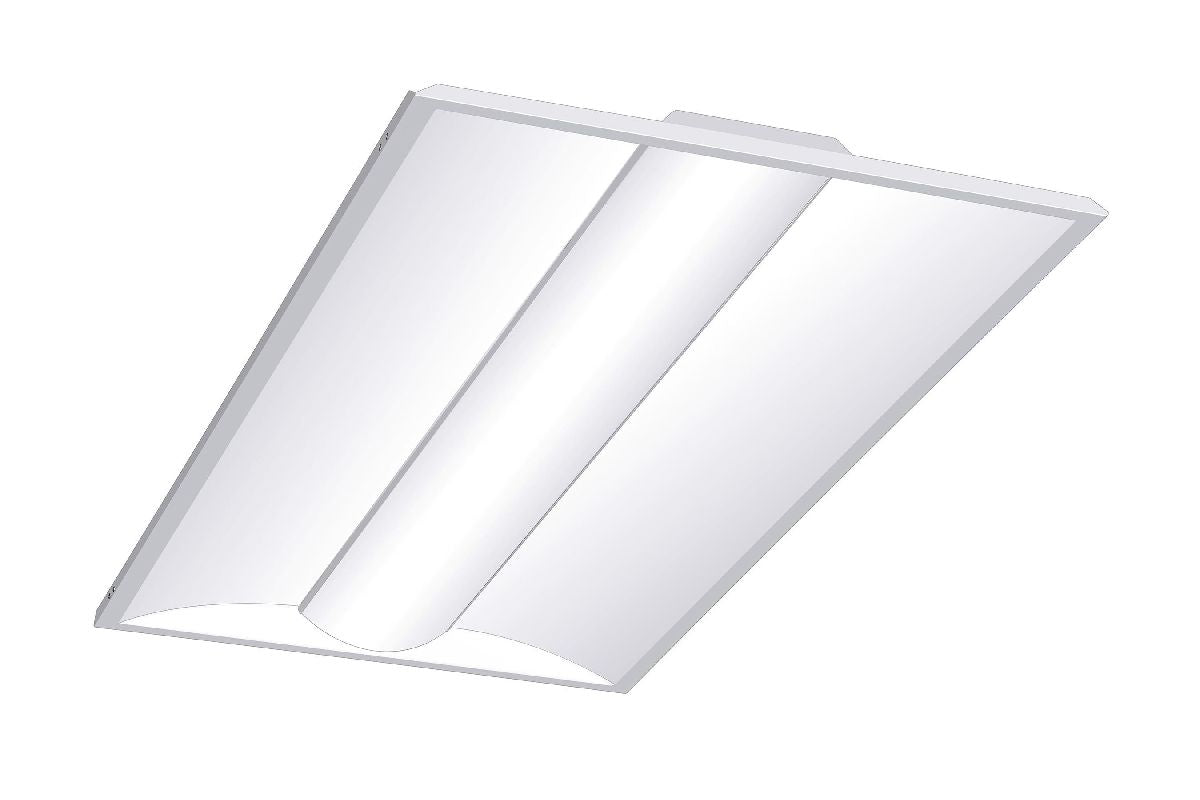

GE Lighting's Lumination™ PCL LED volumetric center lens troffer light is designed for new construction and retrofit applications. It features a slim, low-profile design and is available in 2x2 and 2x4 sizes, with selectable lumens and wattage options. The fixture also offers field-selectable color temperatures of 3500K, 4000K, and 5000K, providing flexibility for various indoor general lighting needs. Built with a durable die-formed steel housing and frosted polypropylene lens, it is damp location rated, CSA certified, and offers 0-10V dimming with a 1% dim-to-off function. The PCL Series is IC rated and comes with a 5-year limited warranty.
Features:
• Slim, low profile
• Suitable for indoor general lighting in both new construction and retrofit solutions
• Housing: Die formed code-gauge steel
• Lens: Frosted Polypropylene
• Lumens: 2x2 3250/3750/5000 lumens (Field Selectable), 2x4 3750/5000/6000 lumens (Field Selectable
• Wattage: 2x2 23/27/38 (Field Selectable), 2x4 25/35/45 (Field Selectable)
• CCT: 3500/4000/5000K (Field Selectable)
• Dimming: Standard 0-10V, 1% Dim to Off
• Typical Mounting: Fits standard T-Bar grid (drop ceilings)
• Insulation Contact: Type IC Rated
• Damp Location rated
• CSA Certified
• Please refer to the DLC QPL website for the latest and most complete information: http://www.designlights.org/QPL
• Current’s Limited 5-year Warranty
