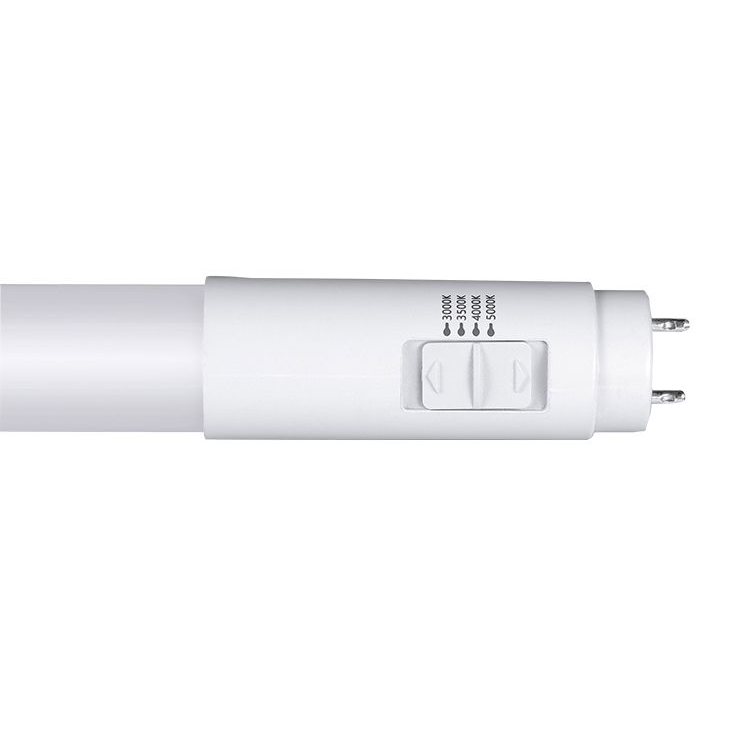

GE Lighting LED16BDT8/G4/8SCXL/120-347 16-Watt 4FT LED Type B Double Ended G13 T8 Glass Tube Lamp
GE Lighting LED16BDT8/G4/8SCXL/120-347 16-Watt 4FT LED Type B Double Ended G13 T8 Glass Tube Lamp
Specifications
Specifications
| Part Number# | LED16BDT8/G4/8SCXL/120-347 |
|---|---|
| Type of Area: | Industrial & Warehouse, Schools, Commercial Offices, Factory / Industrial, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,550 |
| Wattage: | 16 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | CUL Listed, DLC Approved |
| CRI: | 80 |
| Dimensions: | 48" MOL |
| Dimmable: | No |
| Product Warranty: | 7 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V-347V |
| Manufacturer: | GE Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The GE Lighting LED16BDT8/G4/8SCXL/120-347 is a 16-watt 4FT Type B double-ended LED T8 glass tube lamp designed for direct wire installation with ballast bypass. It operates on 120–347V input and works with shunted or non-shunted sockets without socket replacement. Built-in safety protection includes an internal safety switch and misapplication circuit. The glass tube features a factory-sealed covRguard sleeve for shatter protection and containment.
Features:
Safety First Built-In Protection:
• Internal Safety Switch-Provides protection for the installer
• Internal Misapplication Circuit: Provides protection if lamp is placed into ballasted fixture
• Optional In-line fuse kit to protect against future re-lamp misapplications (available for ordering separately)
Full Portfolio of Type B LED Tubes:
• Glass tubes and plastic coated glass options
• 120-277V and 120-347V options
• T8 & T5 lamps in a variety of lengths and light outputs
Benefits:
• Direct wire to bypass the ballast; reduces energy use, eliminates ballast compatibility concerns and associated ballast maintenance costs
• No socket replacement necessary; double-ended Type B tubes can be used with shunted or non-shunted sockets
• The polycarbonate plastic covRguard® sleeve is factorysealed on the glass tube to provide a seamless look and feel, eliminating the need for a field-installed sleeve or fixture guard
• covRguard® offers shatter protection and provides containment, eliminating downtime
