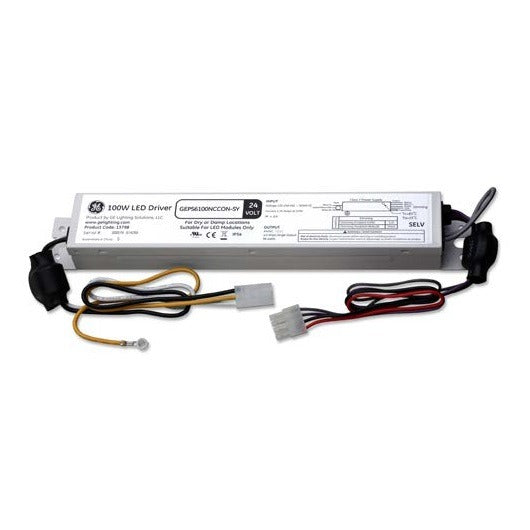

GE 13798 GEPS6100NCCON-SY 24V 100W Dimming LED Driver for Vertical and Horizontal Cases
GE 13798 GEPS6100NCCON-SY 24V 100W Dimming LED Driver for Vertical and Horizontal Cases
Specifications
Specifications
| Part Number# | GEPS6100NCCON-SY |
|---|---|
| Type of Area: | Coolers & Freezers, Retail |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CE, CUL Listed, Dimmable, ROHS, UL Listed |
| Dimensions: | 10.7" x 1.7" x 1.1" |
| Width: | 1.7" |
| Length: | 10.7" |
| Height: | 1.1" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | GE – RDL |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
The GE 13798 GEPS6100NCCON-SY is a versatile 24V 100W dimming LED driver for vertical and horizontal cases. Operating efficiently within a range of 120-277 VAC ensures a consistent output of 24 VDC and a maximum current of 4.0 ADC. With a high efficiency of over 85%, it performs reliably in temperatures from -40°C to +55°C. This driver also offers flexibility with a two-position dimming feature and a robust IP54 rating for UL dry and damp locations.
PERFORMANCE DATA
Input VAC: 120-277
Input Frequency (Hz): 50/60
Input Current (A): 0.45 (240V) Min, 1.1 (120V) Max
Output Voltage (VDC): 24
Output Current (ADC) - single output: 4.0 Max
Output Power (W): 96
Environmental Operating Temperature Range: -40°C - +55°C
Environmental Storage Temperature Range: -40°C - +70°C
Power Factor and Efficiency: PF > 0.9 Efficiency > 85% (40% load minimum)
Enclosure Specification: UL Dry and Damp Location Rated, International at IEC IP54
Dimming (disabled by default): 2 position - 100% full on, 20% on dimming command
Dimensions Control: Open contact dimming circuit 20%. Closed contact is 100%
Dimensions (L x W x H): 10.7 x 1.7 x 1.1 inches (273mm x 43mm x 28mm)
Warranty Period: 5 years
UL, IEC, and International Regulatory: UL/cUL, CE/CB Certified - IP54 - WEEE/RoHS compliant
