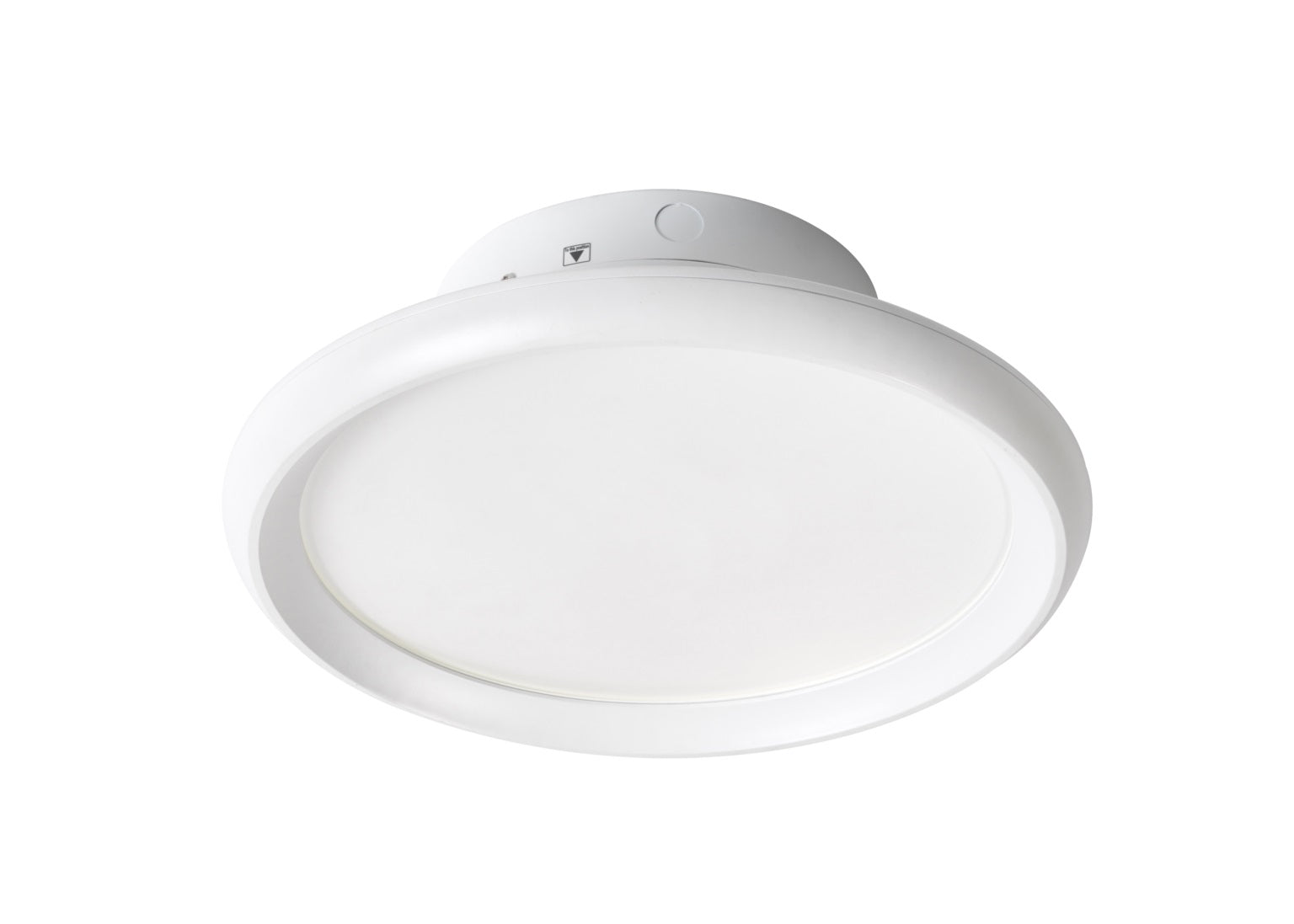

FSC Lighting ORBIS-16 LED Round Parking Garage Light Fixture Dimmable
FSC Lighting ORBIS-16 LED Round Parking Garage Light Fixture Dimmable
Specifications
Specifications
| Part Number# | ORBIS-16 |
|---|---|
| Type of Area: | Parking Garage |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 4,590 - 9,179 |
| Wattage: | 80 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, ETL Listed, IP65 / IP66 / IP67, LM79 / LM80, ROHS |
| CRI: | >80 |
| Dimensions: | 15.94" Dia x 4.82" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 15 lbs |
| Manufacturer: | FSC Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
FSC Lighting ORBIS-16 LED Round Parking Garage Fixture is designed to provide soft, glare-free illumination with its white acrylic lens, making it ideal for parking garages, canopies, and low bay applications. This fixture can be surface or pendant mounted and features a die-formed heavy gauge cold rolled steel housing with a post-production baked white anti-rust coat. It utilizes a high-efficiency LED power supply and circuit boards, offering 120-277V and 0-10V dimming standard, with an impressive L70 rating of 156,000 hours. Additionally, it is ETL-listed, DLC-qualified, RoHS compliant, and IP65 & IP66 rated, ensuring durability and adherence to industry standards.
Features:
• Ideal for use in parking garages, covered parking, low bay, and canopies.
• Housing made from die-formed heavy gauge cold rolled steel and is finished with a post- production baked white anti-rust coat.
• High efficient visual comfort diffused lens. Quarter turns for easy installation.
• Surface mount. Can be pendant mounted (installer supplied). Cord and plug options offered.
• Utilizes high-efficiency LED power supply and circuit boards. 120-277V & 0-10V Dimming standard.
• L70 rating of 156,000 hours
• Five-year warranty
• ETL Listed. Adheres to LM79, LM80, and TM21 industry standards. DesignLights Consortium® (DLC) qualified. RoHS Compliant. IP65 & IP66 Rated.
