FSC Lighting MBK-AO Series Wattage Adjustable LED Magnetic Bar Retrofit Kit Dimmable
FSC Lighting MBK-AO Series Wattage Adjustable LED Magnetic Bar Retrofit Kit Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | MBK |
|---|---|
| Type of Area: | Schools, Hospitals, Commercial Offices, Factory / Industrial |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,175 - 6,960 |
| Wattage: | 48 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, ETL Listed, LM79 / LM80, ROHS |
| CRI: | 80+ |
| Length: | 24" - 48" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | FSC Lighting |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:

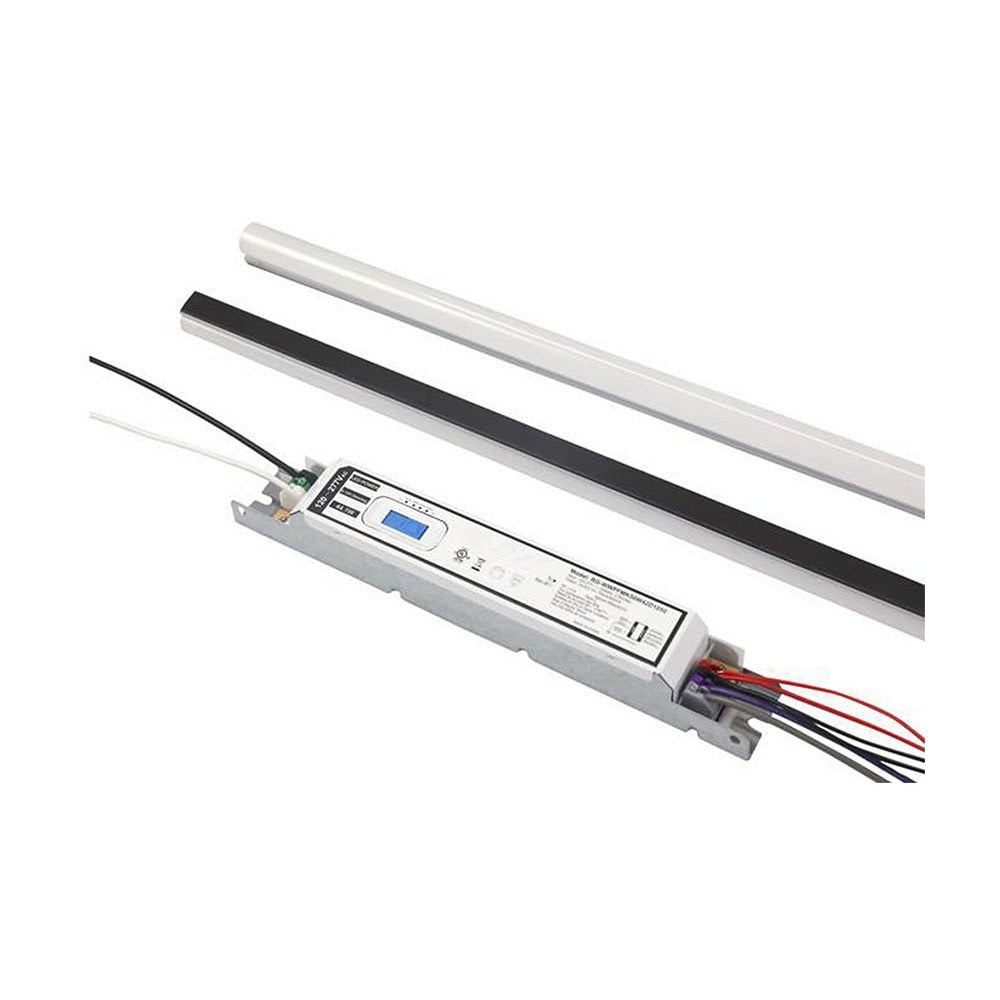

FSC Lighting's MBK-AO Series Wattage Adjustable LED Magnetic Bar Retrofit Kit is a versatile solution for retrofitting fluorescent fixtures. It offers single or multiple magnetic LED strip and driver combinations with three selectable wattages, making it suitable for various indoor commercial and industrial applications. Constructed with a frosted diffused lens and magnetic mounting strip, the retrofit kit is easy to install and features high-efficiency LED power supplies. It operates in temperatures ranging from -20°C to +40°C, has a CRI of 80+, and comes with a five-year warranty, meeting industry standards for quality and performance.
Features:
• Replacements for traditional fluorescent troffers or strip fixtures with
new belly pan covers or entire strip fixtures.
• Ideal for use in indoor commercial and industrial applications; schools, offices, hospitals, distribution centers and factories, etc.
• Linear light bar with frosted diffused lens and magnetic mounting strip across the entire back.
• Belly Pan and complete Fixture housings made from die-formed heavy gauge pre-painted cold rolled steel and finished with post-production white polyester polymer.
• Retrofit Kit has quick-connect LED strip and driver. Belly pan drilled for self-tapping screws. Fixture designed for surface mounting. Chain and cable mount ready.
• Utilizes high-efficiency LED power supply and circuit boards.
• 120-277V & 0-10V dimming standard. 50/60HZ input frequency.
• Suitable for -20°C to +40°C Ambient
• L70 rating of 60,000 hours
• CRI: 80+
• Five-year warranty. Terms and Conditions Apply. See warranty documentation for more information.
• ETL Damp Listed.
• Adheres to LM79, LM80 and TM21 industry standards.
• Linear Light bars and drivers are DesignLights Consortium (DLC) 5.1 Standard.
