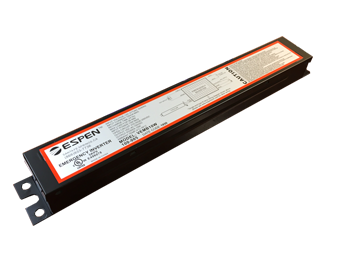

ESPEN Technology VEMB10W 10 Watt LED Emergency Lighting Inverter for Type B Flex Tubes
ESPEN Technology VEMB10W 10 Watt LED Emergency Lighting Inverter for Type B Flex Tubes
-
Specsheet:
Specifications
Specifications
| Part Number# | VEMB10W |
|---|---|
| Wattage: | 10 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, UL Listed |
| Dimensions: | 12.68" x 1.7" x 1.2" |
| Width: | 1.7" |
| Length: | 12.68" |
| Height: | 1.2" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | 32 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Espen Technologies |
| Technology: | Emergency Driver |
Details
Details
ShineRetrofits Input:
This Emergency Lighting Inverter provides a maximum load of 10-Watts and operates up to 90-minutes with Espen's Type B LED tubes. Features durable steel case enclosure and reliable function in an emergency operation.
Electrical:
● Universal 120-277V AC, 50/60Hz Input
● Open Circuit Voltage 200VDC
● Charge/Power “ON” LED Indicator Light and Push-to test Switch for Code Compliance Testing
● Long Life, Maintenance Free, Lithium-Ion Battery
● Output Short and Overcurrent Protection: Electronic Limiting, with Normal Operation Resuming
● 90 Minute Minimum Emergency Operating Time Over Full Temperature Range
● 24 Hour Maximum Battery Recharge Time
Installation:
● For Use with Switched or Un-Switched Fixtures
● Does Not Affect Normal Operation
● Emergency Driver and Lamps Must be Fed from Same Branch Circuit
Warranty:
● 5 years
● Meets UL924
Model: VEMB10W
● Operates Espen Flex and Flex DE Type B LED 2ft, 3ft, 4ft T8 lamps, Flex DE 4ft T5HE and 4ft T5HO lamps
