ESPEN Technology LB48T8U6/8T/13P-AB Color Selectable 13-Watt 24-Inch T8 LED Hybrid U-Bent Linear Tube Lamp Ballast Compatible Dimmable
ESPEN Technology LB48T8U6/8T/13P-AB Color Selectable 13-Watt 24-Inch T8 LED Hybrid U-Bent Linear Tube Lamp Ballast Compatible Dimmable
Specifications
Specifications
| Part Number# | LB48T8U6/8T/13P-AB |
|---|---|
| Type of Area: | Office & Small Retail, Commercial Offices, Factory / Industrial, Retail |
| Color Temp: | Selectable CCT |
| Lumen Output: | 1,950 |
| Wattage: | 13 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, UL Listed |
| CRI: | 83 |
| Dimensions: | 24.00" |
| Length: | 24.00" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Espen Technologies |
| Technology: | LED |
Details
Details
ShineRetrofits Input:

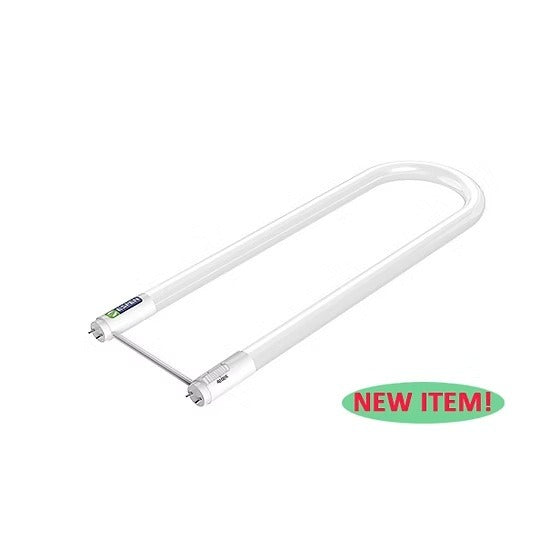

The ESPEN LB48T8U6/8T/13P-AB is a 13W color selectable U-bent LED T8 hybrid tube designed for maximum retrofit flexibility. It supports both ballast-compatible (Type A) and direct-wire (Type B) installations, operating with instant start or programmed start ballasts or 120–277V input. Built with a high-quality glass tube for superior light output, it delivers high CRI, instant-on performance, and smooth dimming down to 10%. With long life, cold-temperature operation, and a 5-year warranty, this LED U-bent tube is an efficient and reliable solution for commercial and industrial lighting.
Features:
• Type A mode: Works on existing compatible Instant Start, Programmed Start, Dimming electronic ballast
• Type B mode: Internal Driver (Direct 120-277VAC input)
• Utilizes existing instant start or rapid start G13 sockets
• Glass tube for superior optical performance
• Long life
• High CRI
• Instant on, no delay or warm up time
• Convenient and quick installation
• Works in cold temperature applications
• Compatible with controls and sensors
• Glass tube for superior optical performance
• Continuous Dimming to 10%
• 5-Year Warranty
