Eiko VPHB2-PS200-8FCCT-HDIM-TAA PowerSet and FieldCCeT LED Vapor Proof 4-Foot High Bay Light Fixture TAA Compliant
Eiko VPHB2-PS200-8FCCT-HDIM-TAA PowerSet and FieldCCeT LED Vapor Proof 4-Foot High Bay Light Fixture TAA Compliant
Specifications
Specifications
| Part Number# | VPHB2-PS200-8FCCT-HDIM-TAA |
|---|---|
| Type of Area: | Industrial & Warehouse, Parking Garage, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 22,500 - 30,000 |
| Wattage: | 200 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, Dimmable, DLC Approved, DLC Premium, ETL Listed, FCC Compliant, IP67, NEMA, NSF, ROHS |
| CRI: | >80 |
| Dimensions: | 50.118" x 10.236" x 4.724" |
| Width: | 10.236" |
| Length: | 50.118" |
| Height: | 4.724" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V-347V |
| Weight Each: | 14.3 lbs |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:

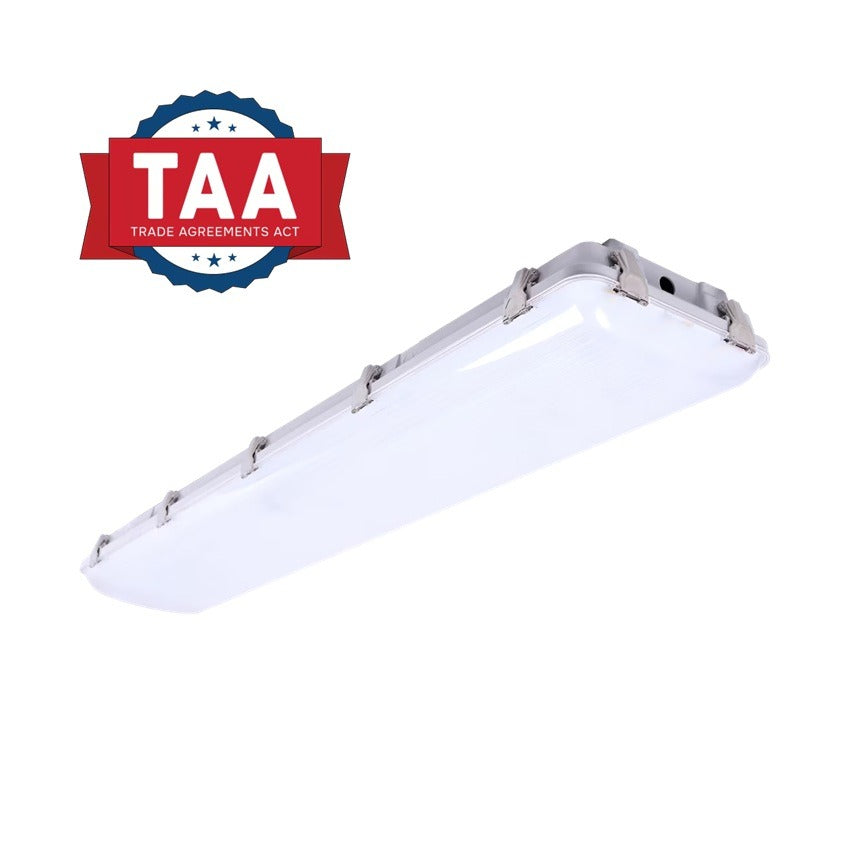

Eiko's VPHB2-TAA 4-foot LED vapor-proof high bay light fixture is designed for environments with high moisture and dust levels. It features multiple knockouts for flexible installation, stainless steel clips, and an impact-resistant polycarbonate lens. The fixture boasts high efficacy, up to 150 lm/W, and is available in various power and color temperature settings. With certifications including ETL, RoHS, and TAA compliance, and a 5-year limited warranty, this light ensures durability and reliability for demanding industrial and commercial applications.
Features:
• Designed to be used in environments subject to high levels of moisture and dust
• Multiple knockouts make installation flexible and easy
• Stainless steel clips
• Cable glands and knockout plugs included for sealing power cable entries
• Impact-resistant polycarbonate lens
• Surface mounting clips and v-hooks included
Certifications:
• ETL
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• TAA Compliant (select models)
• Wet Location
• IP67 Rated
• IK10
• NEMA4X Rated
• NSF Rated for Splash Zone and Non-Food Zone
• DesignLights Consortium® Premium Qualified - meets the requirements for
the highest DLC qualification for efficacy and lumen maintenance (High-Bay)
• DesignLights Consortium® Qualified - meets DLC requirements
for efficacy and lumen (Linear Ambient)
Performance:
• High efficacy, up to 150 lm/W
• Available in PowerSet models: 200/175/150W, 135/120/100W
• Available in FieldCCeT models: 35/40/5000K CCT
• CRI: >80
• Beam Angle: 120°
• Estimated L70: 100,000 Hours
Electrical:
• Input voltage: 120-347V, 277-480V
• 0-10V dimming
• 12VDC Aux, 200mA max
• Surge protection: 6kV
• Power factor: >0.9
• THD: <20%
Thermal:
• -40°F to 104°F (-40°C to 40°C) ambient operating temperature
• Ambient operating temperature with sensor
Construction:
• Polycarbonate gray housing
• Polycarbonate lens
• Stainless steel lens clips
Warranty:
• 5-Year limited warranty available online.
