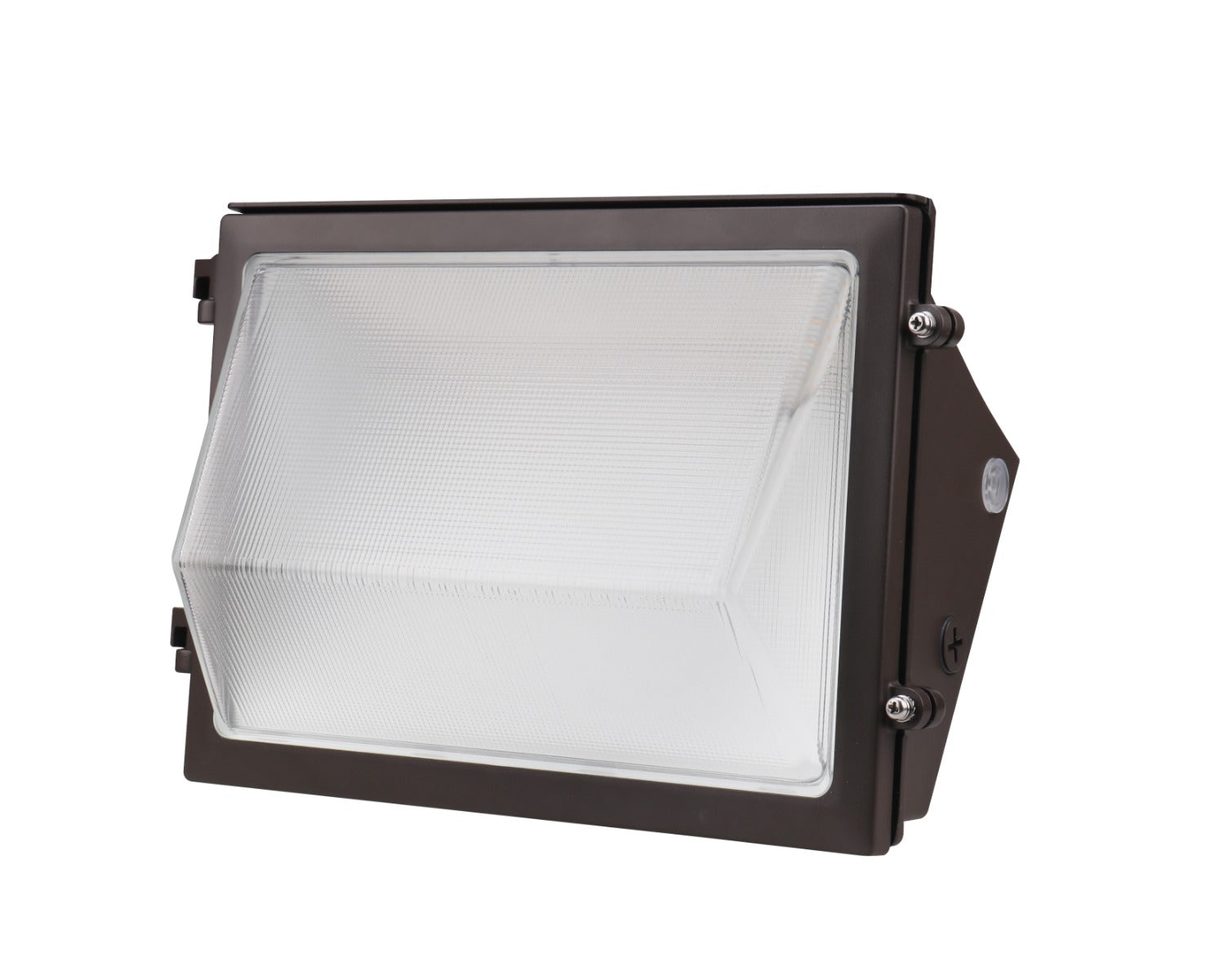

Eiko TWP1 Series Color Selectable LED Traditional Wall Pack Light Fixture Dimmable Replaces up to 400W HID
Eiko TWP1 Series Color Selectable LED Traditional Wall Pack Light Fixture Dimmable Replaces up to 400W HID
Specifications
Specifications
| Part Number# | TWP1-PS |
|---|---|
| Type of Area: | Parking Garage, Wall Mount & Building Exteriors, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 8,100 - 16,200 |
| Wattage: | 120 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, Dimmable, FCC Compliant, IP65 / IP66 / IP67, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 14.5" x 6.5" x 9.5" |
| Width: | 6.5" |
| Length: | 14.5" |
| Height: | 9.5" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V-347V |
| Weight Each: | 7.8 lbs |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Eiko's Traditional LED Wall Pack Light Fixture offers customized lighting solutions with selectable wattage along with adjustable CCT or dedicated 5000K color temperature. Dimmable for your convenience, it effortlessly replaces up to 400W HID lamps while offering energy efficiency. With a 5-year limited warranty and a remarkable rated life of 54,000 hours, this fixture ensures long-lasting and dependable performance.
Features:
• Traditional style matches the appearance of legacy products while also covering the
same footprint
• 4 - 1/2” knockouts make for versatile mounting
• Wall mount with or without junction box
• Integrated photocell for dusk-to-dawn operation
• Hinged removable door housing makes installation easier
• Glass lens
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provide multiple color temperature settings in one fixture
• UL Listed for US & Canada
• RoHS compliant
• FCC compliant
• ICES-005 compliant
• IP65 Rated
• IK Pending
• DesignLights Consortium® Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance - Pending
• High efficacy, up to 135 lm/W
• Available in PowerSet model: power-selectable 80/70/60W; 120/105/90W
• Available in FieldCCeT models: field-selectable CCT 30/40/5000K
• CRI: >80
• Rated Life: >54,000 hours
• Input voltage: 120-347V
• 0-10V dimming, dim-to-off
• Surge protection: 4kV
• Power factor: >0.9
• THD: <20%.
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature
• -13°F to 122°F (-25°C to 50°C) ambient operating temperature with photocell
• Bronze powder-coated, die-cast aluminum housing
• Glass lens
• 5-year limited warranty available
Applications:
• Industrial Parks
• Loading Docks
• Utility Sheds
• Entryways
• Walkways
• Storage Areas
• Security
• Perimeter Lighting
