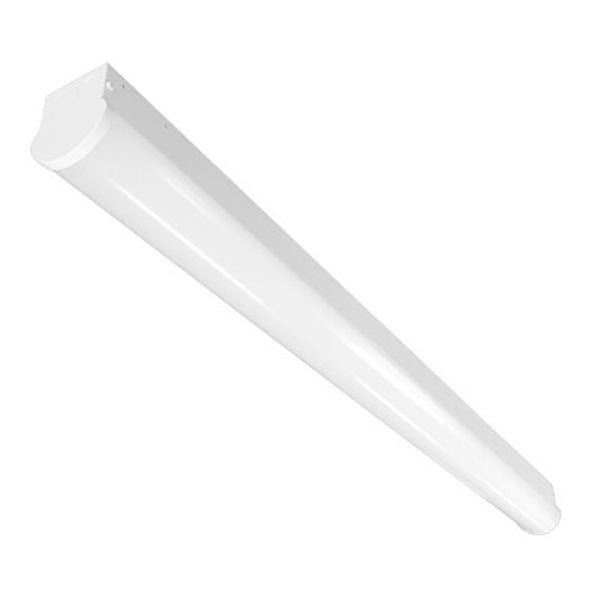

Eiko STR4/PS45/FCCT/UD Power and Color Selectable 4FT LED Linear Strip Fixture Dimmable
Eiko STR4/PS45/FCCT/UD Power and Color Selectable 4FT LED Linear Strip Fixture Dimmable
Specifications
Specifications
| Part Number# | STR4/PS45/FCCT/UD |
|---|---|
| Type of Area: | Office & Small Retail, Maintenance Rooms, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 30,001 - 40,000 Hours |
| Lumen Output: | 4,650 - 6,000 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | 48" x 3.35" x 3.56" |
| Width: | 3.35" |
| Length: | 48" |
| Height: | 3.56" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
Eiko's STR 4-foot LED Linear Strip Fixture serves as a direct LED replacement for fluorescent strip luminaires, providing continuous dimming down to 10% for customizable illumination levels. The PowerSet and FieldCCeT features enable users to pre-set specific lumen outputs and color temperature options (3500K, 4000K, 5000K) within each fixture, ensuring flexibility and ease of use. With power-selectable wattages (45/38/34W) and field-selectable CCTs, this fixture is adaptable to different environments while maintaining a high color rendering index (CRI) of 80+. It boasts a long estimated lifespan of 36,000 hours (L90) and features a durable white powder-coated steel housing with an extruded acrylic lens for uniform light distribution and resistance to yellowing.
Features:
• Unique toolless entry allows for the lens and LED board to be easily removed, allowing quick access to the driver, simply squeeze the sides together for access
• One-for-one alternative LED solutions to fluorescent strip luminaires
• Continuous dimming to 10%
• PowerSet feature allows for multiple “set and forget” lumen stops in each fixture
• FieldCCeT feature allows for multiple “set and forget” CCT options in each fixture
• Power-selectable: 45/38/34W
• Field selectable: 35/40/5000K CCT
• CRI: 80+
• Estimated L90: 36,000 Hours
• White powder-coated steel housing
• Extruded acrylic lens provides even illumination and resists yellowing
Applications:
• Storage areas
• Utility areas
• Coves
• Display cases
• Retail
• Task lighting
• General area lighting
