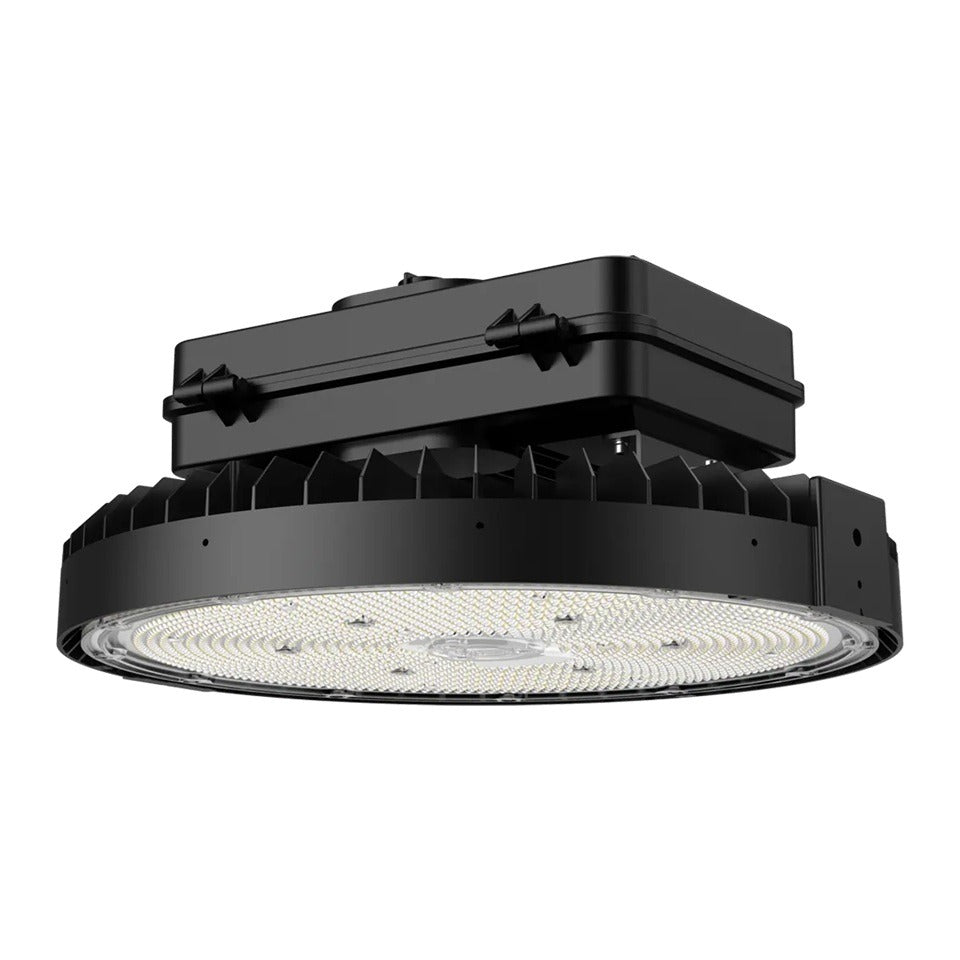

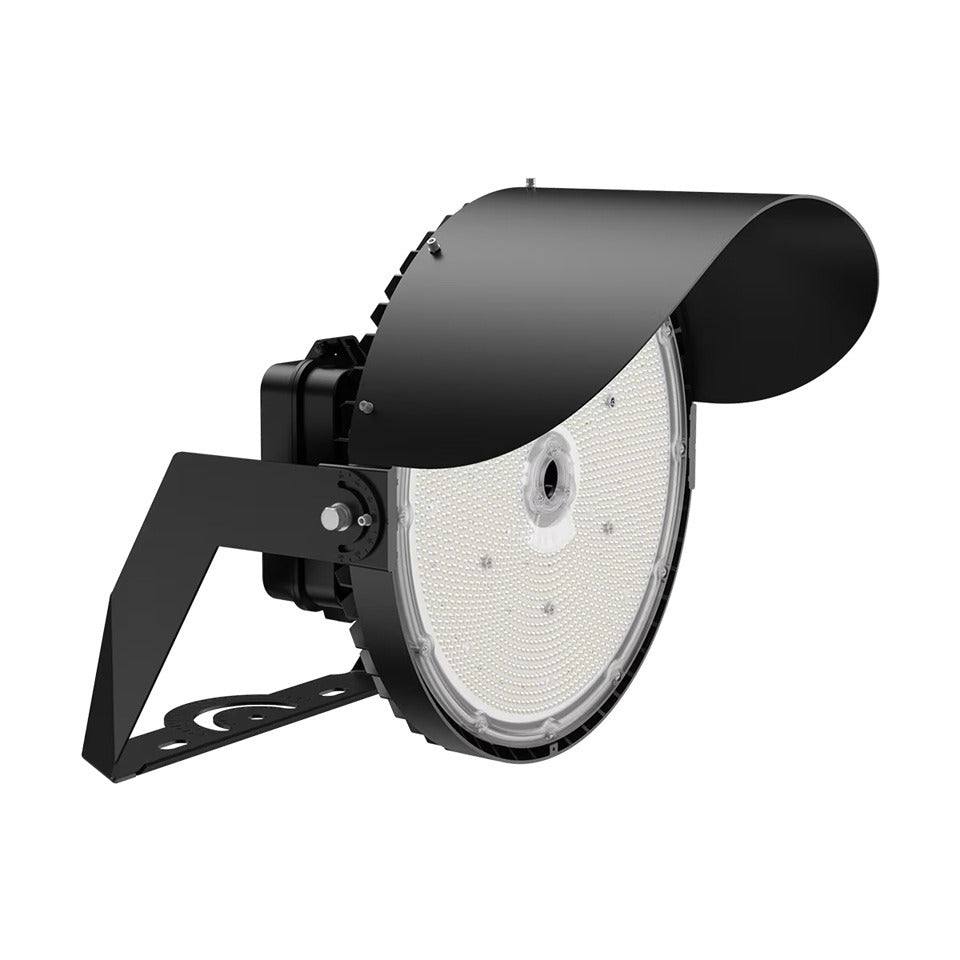

Eiko SIG3 Series LED Power Selectable Sports Flood/High Bay Light Fixture Dimmable
Eiko SIG3 Series LED Power Selectable Sports Flood/High Bay Light Fixture Dimmable
Specifications
Specifications
| Part Number# | SIG3 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Manufacturing Plants, Factory / Industrial |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 90,000 - 144,000 |
| Wattage: | 600 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 1000W HID Equivalent, Dimmable, DLC Premium, FCC Compliant, IP66, ROHS, UL Listed |
| CRI: | 70+ |
| Length: | 18.94" - 20.94" |
| Height: | 8.58" - 8.98" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
EiKO's SIG3 Sports & High Bay Light Fixture delivers 63,000 – 144,000 lumens of powerful illumination with selectable wattage options. This DLC Premium Listed LED fixture is dimmable and features a die-cast aluminum alloy housing and an impact-resistant lens for enhanced durability in demanding environments. Ideal for sports facilities, commercial, and industrial applications, it combines high performance with robust reliability.
Features:
• Power Select Technology for simplified SKU management and field customization.
• PowerSET – 3 Power settings
• Full spectrum input voltage coverage 120-277V, 277-480V
• Wide range of lumen packages (63,000 – 144,000 lumens) provides solutions for mounting heights up to 110’.
• Laser pointer available for precise light aiming
• Standard 30-degree optical lens, 60 & 100-degree lens accessories available for field installation.
• Die-cast aluminum alloy housing and impact-resistant lens for robust and reliable installation
• Technical performance:
• CRI >70
• Efficacy up to 180 LPW
• Lumen Maintenance 70% (L70) at > 100,000Hrs
• THD <20%, Power Factor >0.9
• Surge Protection: 15kV included with 120-277V models, 10kV with 277-480V models
• All products are DesignLights Consortium® (DLC) Premium listed
